MOTOR UNIT
MOTOR
Shimano EP8, 250W, 85Nm
BATTERY
Integrated battery 720Wh
FRAMESET
FRAME

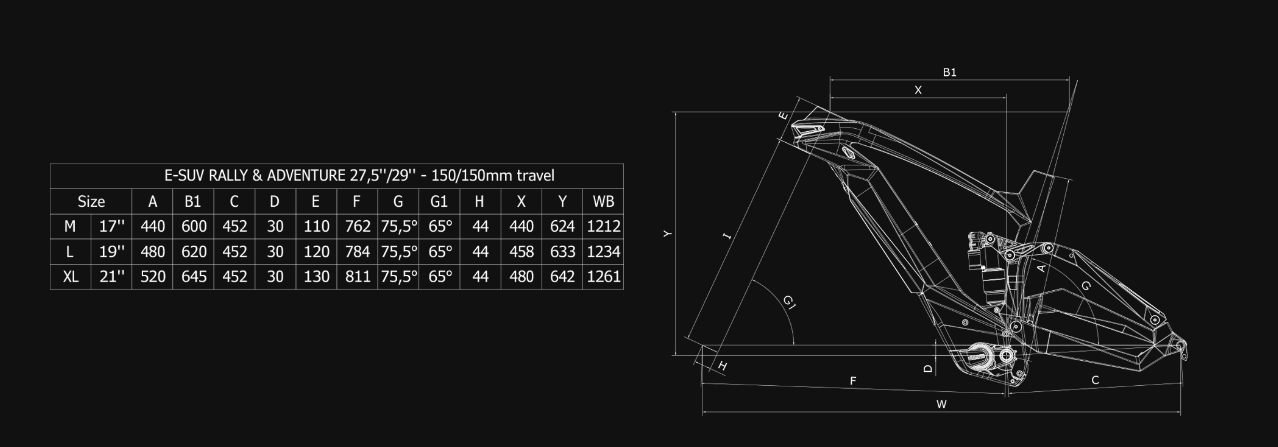

e-SUV carbon sizes: 43, 48, 53 – 12×148 mm thru axle dropouts – Post mount 180 disc brake type – 160/150mm travel front – 150mm travel rear
FORK
RockShox ZEB Select 29″, 150mm travel, 1.5″ tapered HT, Maxle Stealth 15x110mm BOOST axle, minimum 200mm rotor, maximum 220mm rotor, 44mm rake, 63mm crown, DebonAri+, extl rebnd, 38mm stanchions
REARSHOCK
RockShox Deluxe Select+, 185/55, DebonAir Linear, Damper Type RL, Compression tune M, Lockout Force 430, black finish tube, external rebound adjustment, Volume reducer 0 Neg 1 Pos
HEADSET
FSA NO.55R/558 1.5″
DRIVETRAIN
SHIFTERS
Sram GX EAGLE 1×12
REAR DERAILLEUR
Sram GX Eagle 12sp
CRANKSET
Shimano CRANK ARM SET, FC-EM600, 165MM, SRAM chainring XSYNC2 34T
BOTTOM BRACKET
included in the motor
CHAIN
Sram NX EAGLE, 12sp
BRAKES
BRAKES
SHIMANO, BL-M6100, BR-M6120, 4 pistons
ROTOR
Shimano, SM-RT64, RT-EM600, DEORE, L 203MM
WHEELS
WHEELS
DT Swiss, H1900 Spline 27,5 rear” 35mm & 29 front 30mm, 15x110TA front, 12x148TA rear Shimano body, TL-ready rim w/eyelets
REARHUB
Formula CL-1481, for Center Lock, 32h, 12x148mm TA
FRONTHUB
Formula CL-811 for Center Lock, 32h, 15x110mm TA
TIRE
Rear: Scorpion E-MTB R 27.5×2.6 TLR, 60tpi
COCKPIT
STEM
Velomann, 50mm, 35mm, 1″1/8
HANDLEBAR
Velomann, width 780mm, diam.35mm, rise 18mm, backsweep 8°
GRIPS
T-One Rock T-GP34 single lock grip, TPR, 130mm, plastic inner body, aluminium clamp
SADDLE
SEATPOST
Alpha1 Series – 31.6 mm – Remote RM07 I-Spec EV 125 mm – for size M 150 mm – for size L/XL
SADDLE
Fi’zi:k Alpaca Terra F207URN , S alloy rail, 249×145
ACCESSORIES
FRONTLIGHT
Spanninga custom integrated light
REARLIGHT
Spanninga custom integrated light
