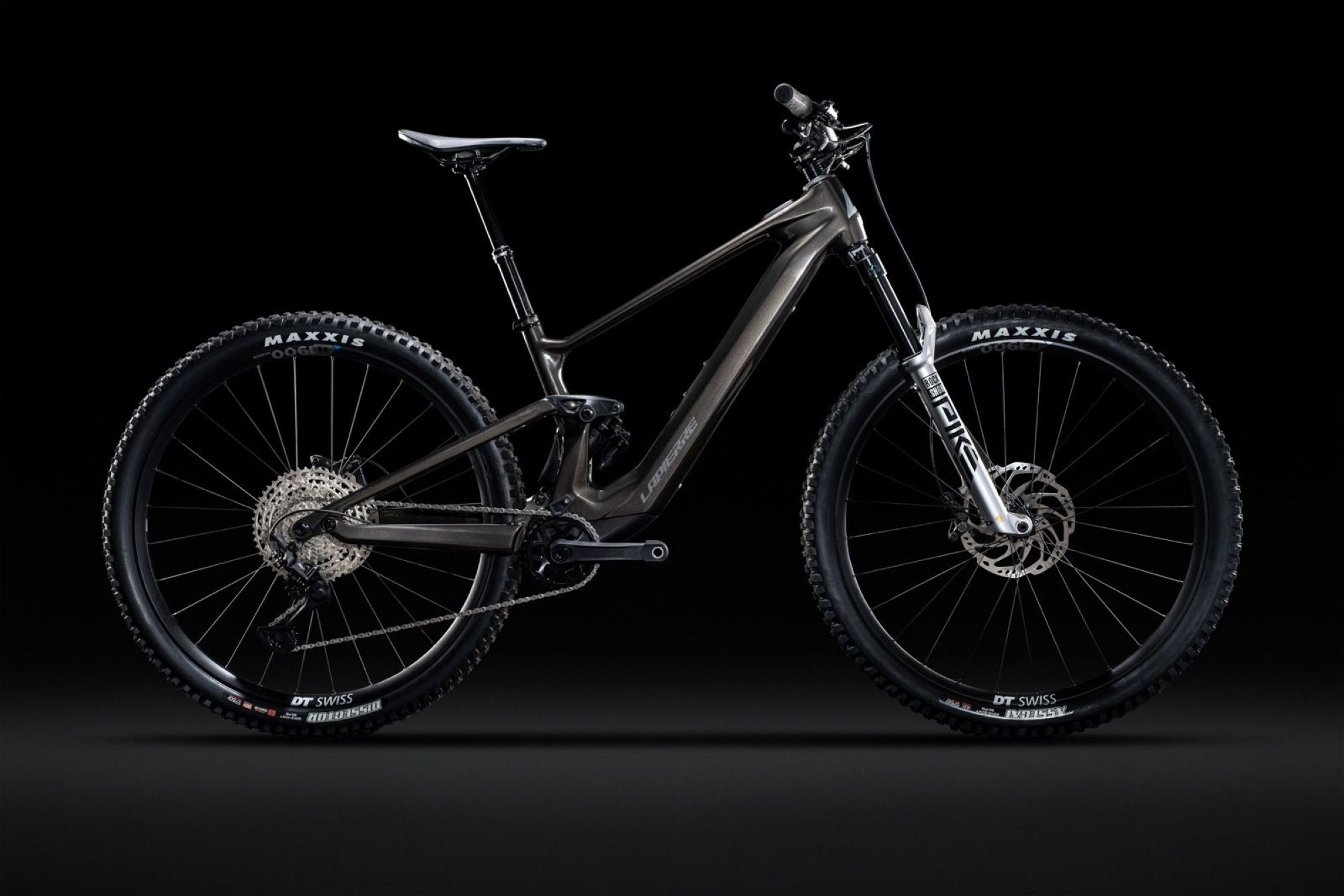

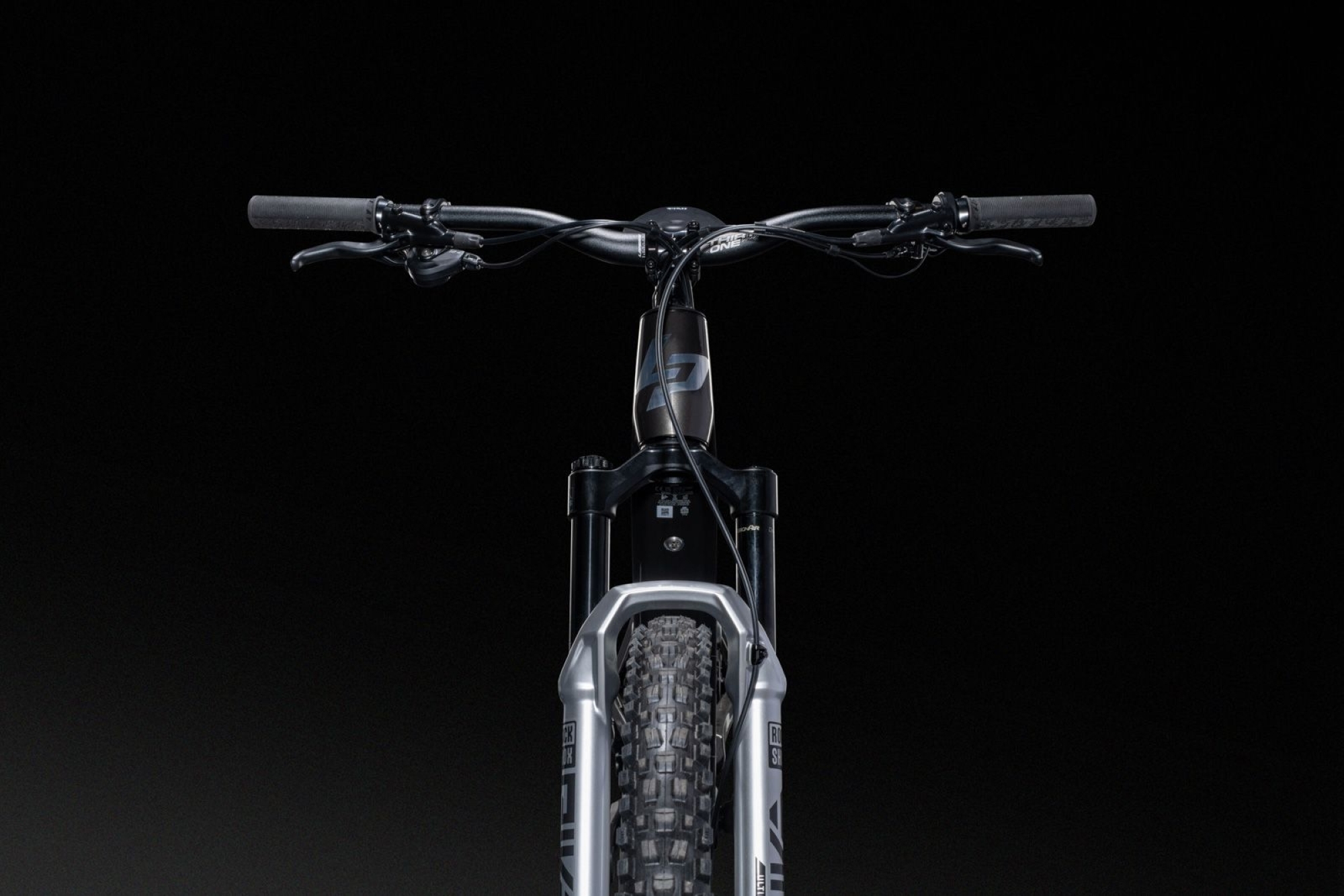

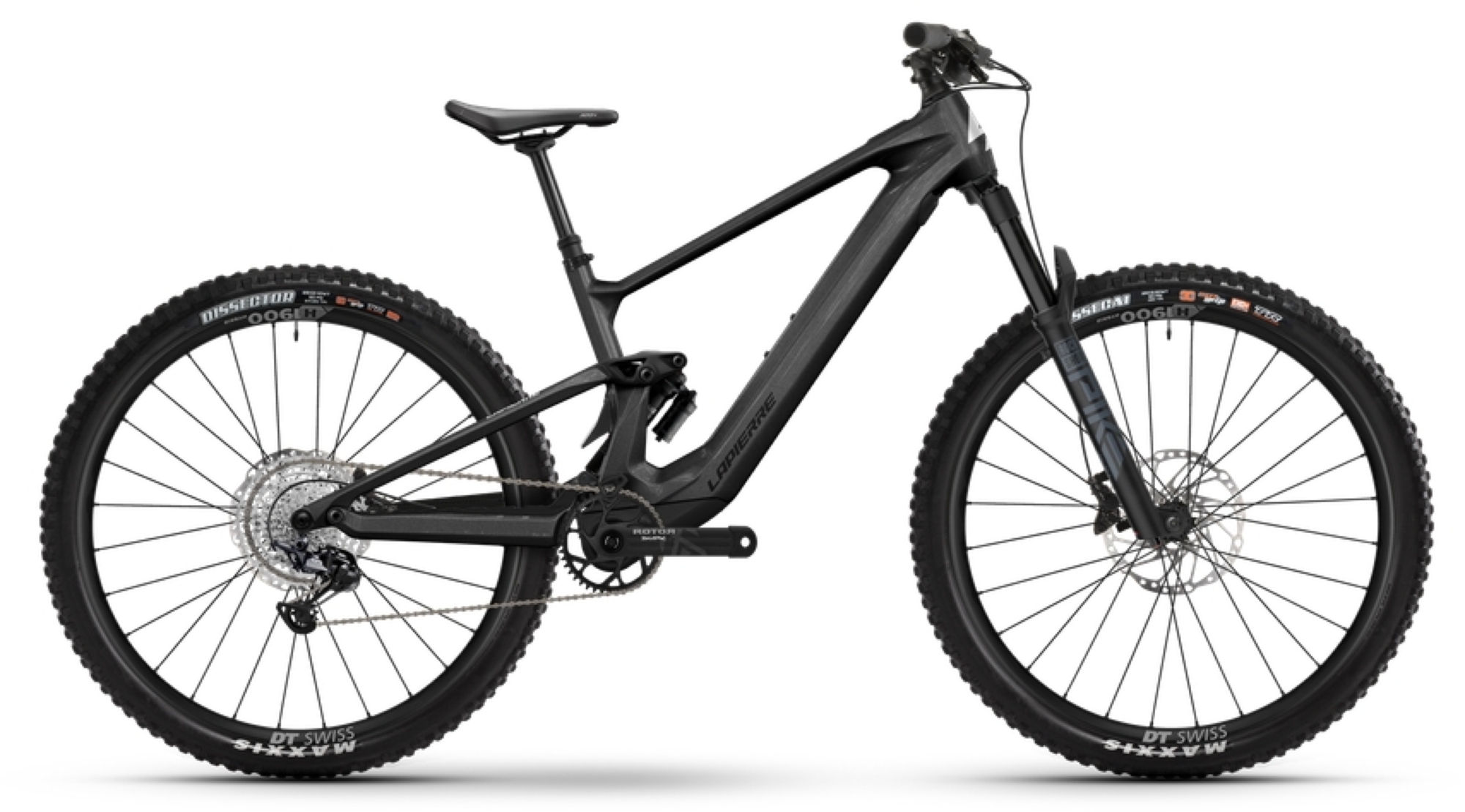

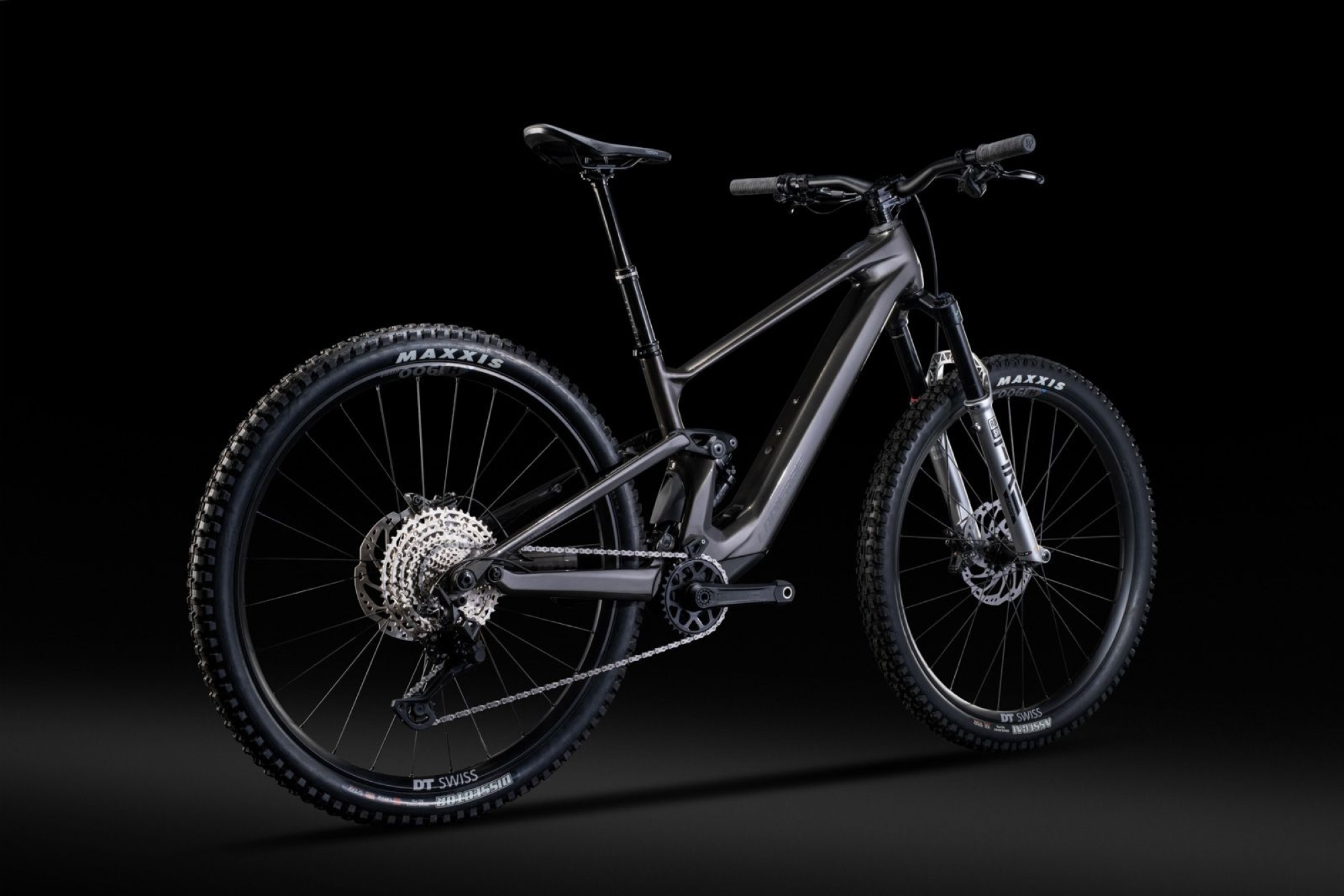

Lapierre e-ZESTY AM 8.4 2025

Cadre et plus
Taille:
S,M,L,XL
Max loadable weight (KG):
120 kg
Front Fork Type:
Suspension
Suspension Type:
Fully
Travel Front:
140 mm

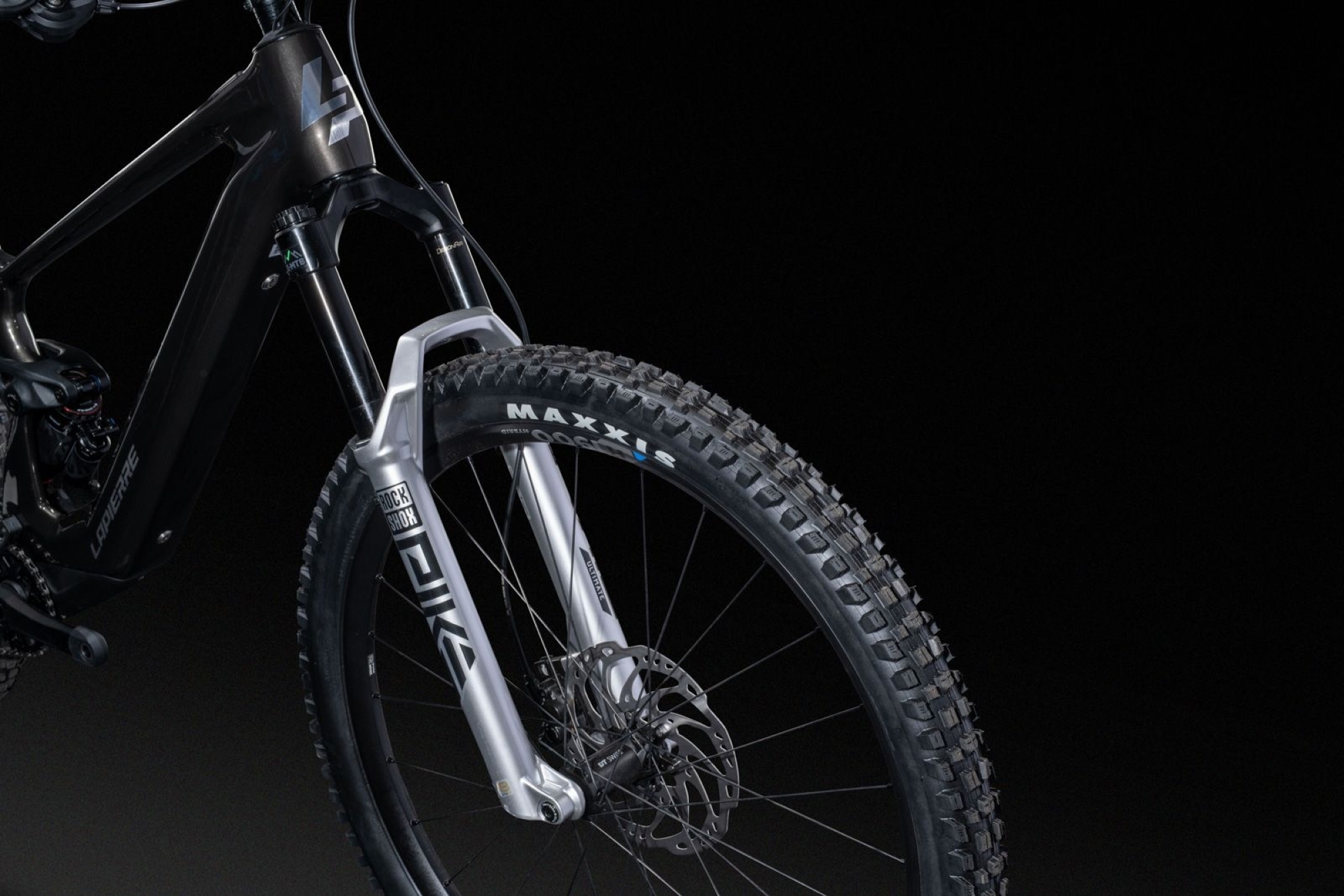

Fourche:
Rockshox, Pike Select+ Charger 3.1 RC2 140 mm
Cadre:
Carbon UD SLI, Carbone, Homme

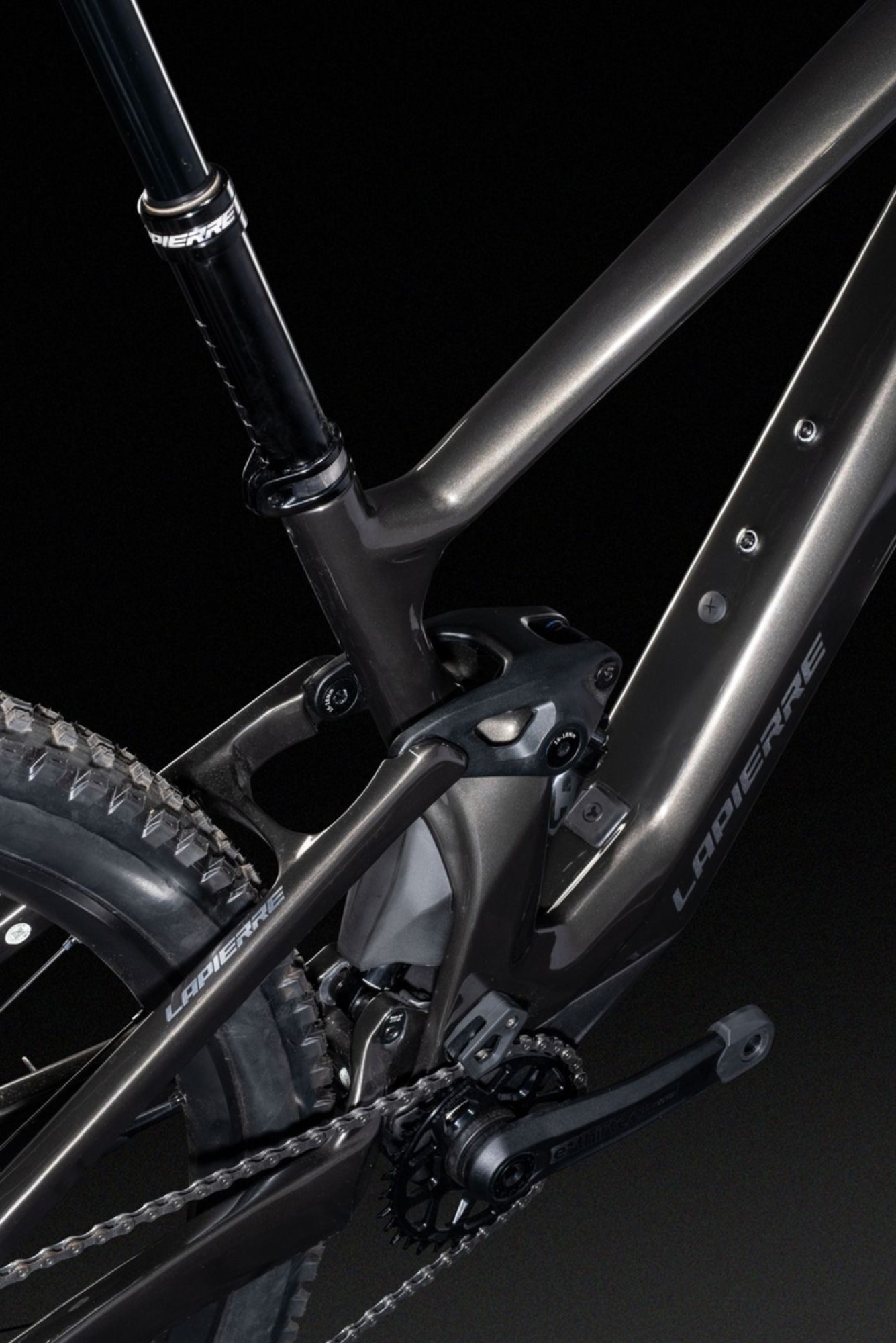

Amortisseur:
Rockshox, Deluxe Select+ RT 210×55 mm 20×8 mm/30×8 mm

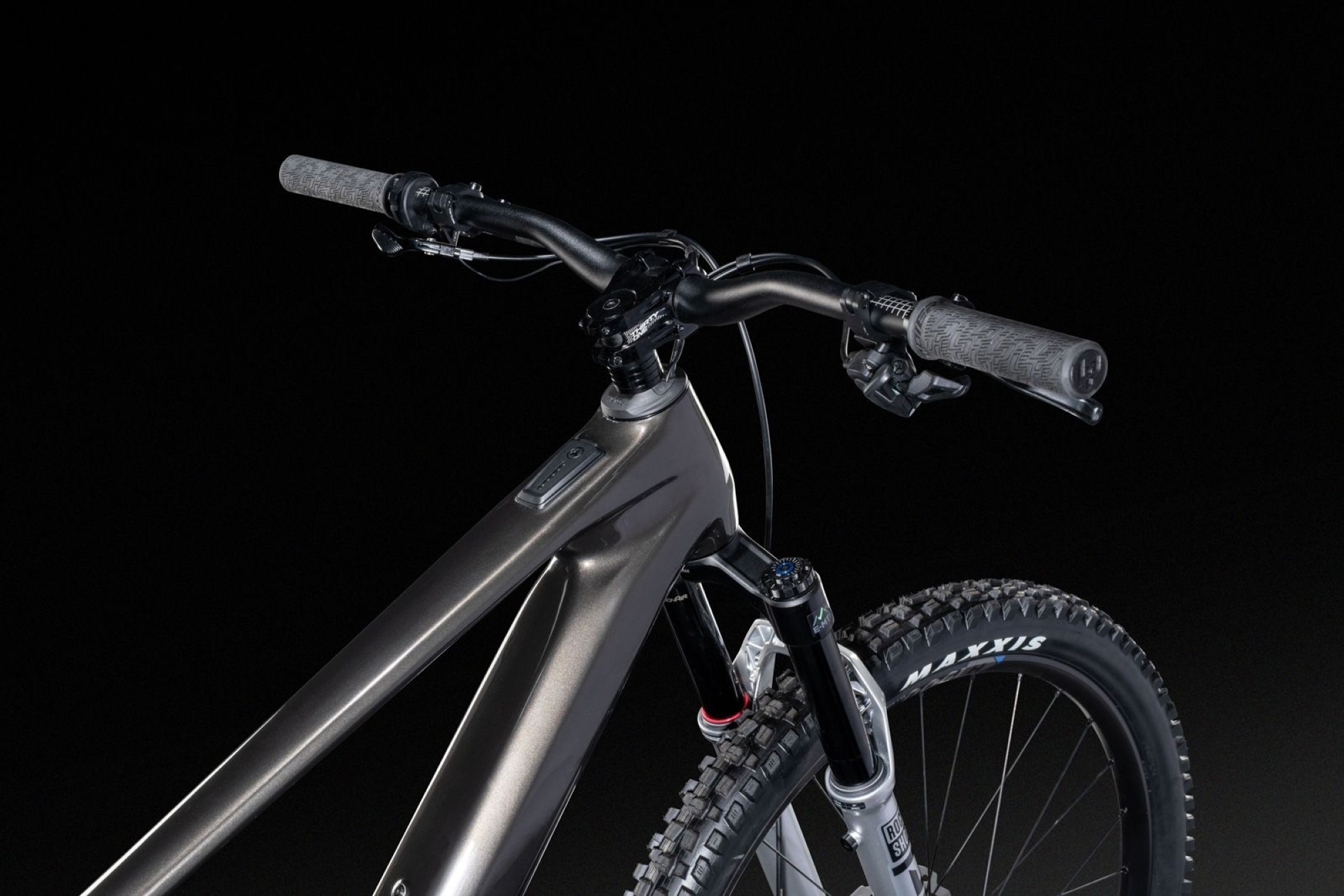

Cintre et Selle
Handlebar Diameter:
31.8 mm
Handlebar Material:
Aluminium
Handlebar Rise:
30
Handlebar Width:
780 mm
Seatpost Material:
Aluminium
Seatpost Travel (mm):
120 mm,130 mm,150 mm,170 mm
Stem Length:
35 mm,45 mm
Poignée:
Lapierre, Grips, small diameter
Cintre:
Lapierre, Flat bar, Thirty One 6061DB, Rise: 30 mm, Ø: 31.8 mm
Jeu de direction:
Acros, Integrated, Integrated ZS56/ZS56 Block Lock
Selle:
Selle Royal, Terra Ridon X5 145mm S-Alloy Mobius

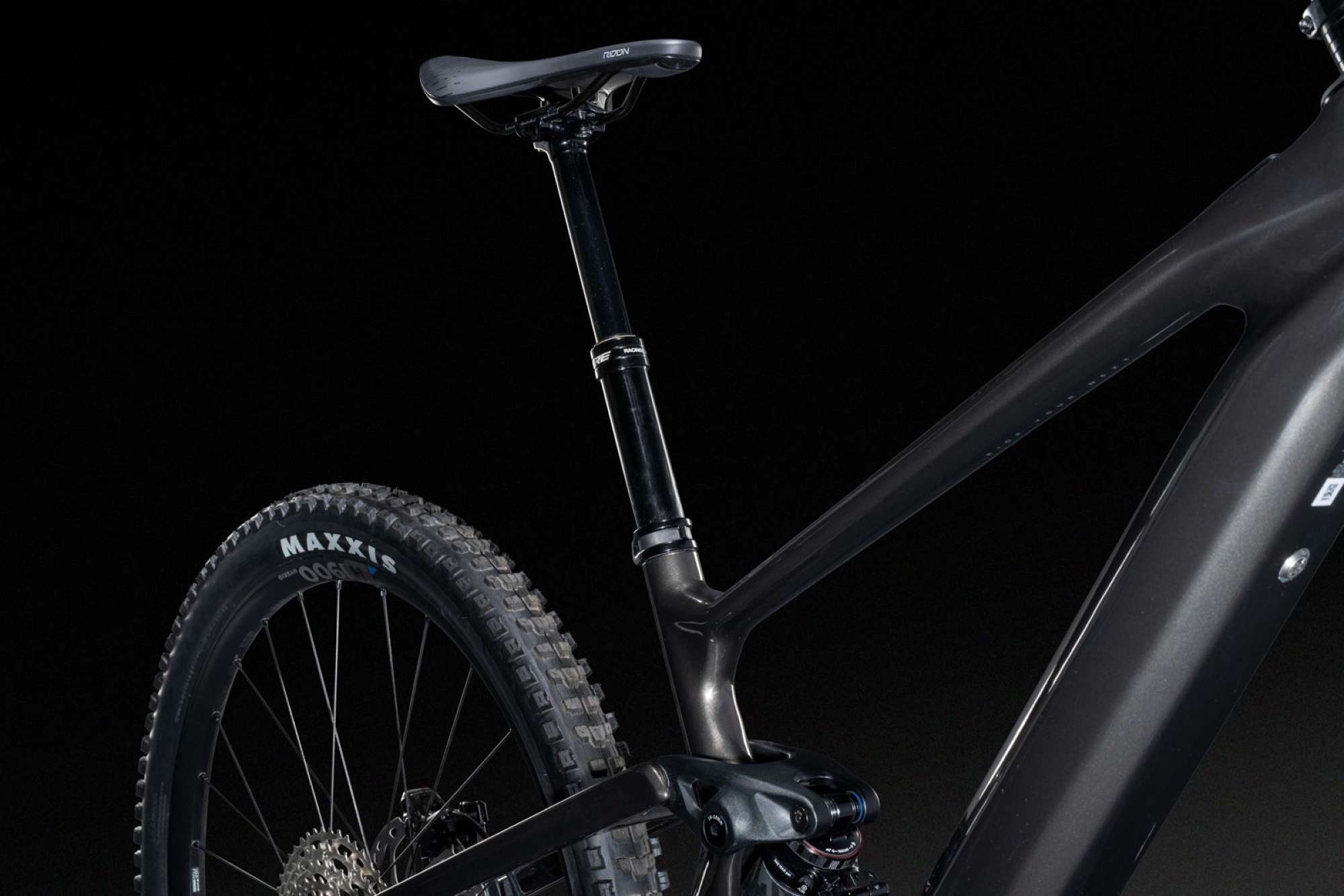

Tige de Selle:
JD, Dropperpost, Dropper YSP18, Ø: 31.6 mm, travel: 120 mm
Potence:
Lapierre, Thirty One alloy, 0°, Ø: 31.8 mm, L: 35 mm
Composants E-bike
Battery Location:
Downtube
Motor Torque [nm]:
60 Nm
Motor Location:
Center
Batterie:
Fazua, Energy 480Wh
Chargeur:
Fazua, 3A90 Charger
Ecran:
Fazua, LED Hub + Mode Control remote
Moteur:
Fazua, Ride 60
Géométrie
Bottom bracket drop [mm]:
30 mm
Chain stay length [mm]:
435 mm,440 mm,445 mm
Fork offset [mm]:
550 mm
Fork total length [mm]:
44 mm
Head tube angle:
65 degrees
Head tube length [mm]:
110 mm,120 mm,130 mm,140 mm
Reach [mm]:
435 mm,460 mm,480 mm,505 mm
Stack [mm]:
610 mm,619 mm,628 mm,637 mm
Seat tube angle:
77 degrees
Seat tube length [mm]:
370 mm,400 mm,430 mm,460 mm
Top tube length [mm]:
576 mm,603 mm,625 mm,652 mm
Wheelbase [mm]:
1188 mm,1217 mm,1246 mm,1280 mm
Roues et composants de roues
Wheelset Material:
Aluminium
Taille de roue:
29
Pneu:
Maxxis, Assegai Exo TR 29X2.50 WT
Pneu Arrière:
Maxxis, Dissector 3C MaxxTerra EXO+ TR 29X2.40 WT
Paire de Roues:
DT Swiss, Hybrid MTB H1900 Spline 15×110 mm
Roue Arrière:
DT Swiss, Hybrid MTB H1900 Spline 12×148 mm
Taille de Roue:
29, 29
Système de freinage
Brake Rear Mount:
Post Mount
Frein Avant:
Shimano, Frein à disque hydraulique, M4100 4 pistons, 203 mm
Frein Arrière:
Shimano, Frein à disque hydraulique, M4100 4 pistons, 203 mm
Levier de frein:
Shimano, M4100-BL
Disques de frein:
Shimano, SM-RT70 203 mm, Centerlock

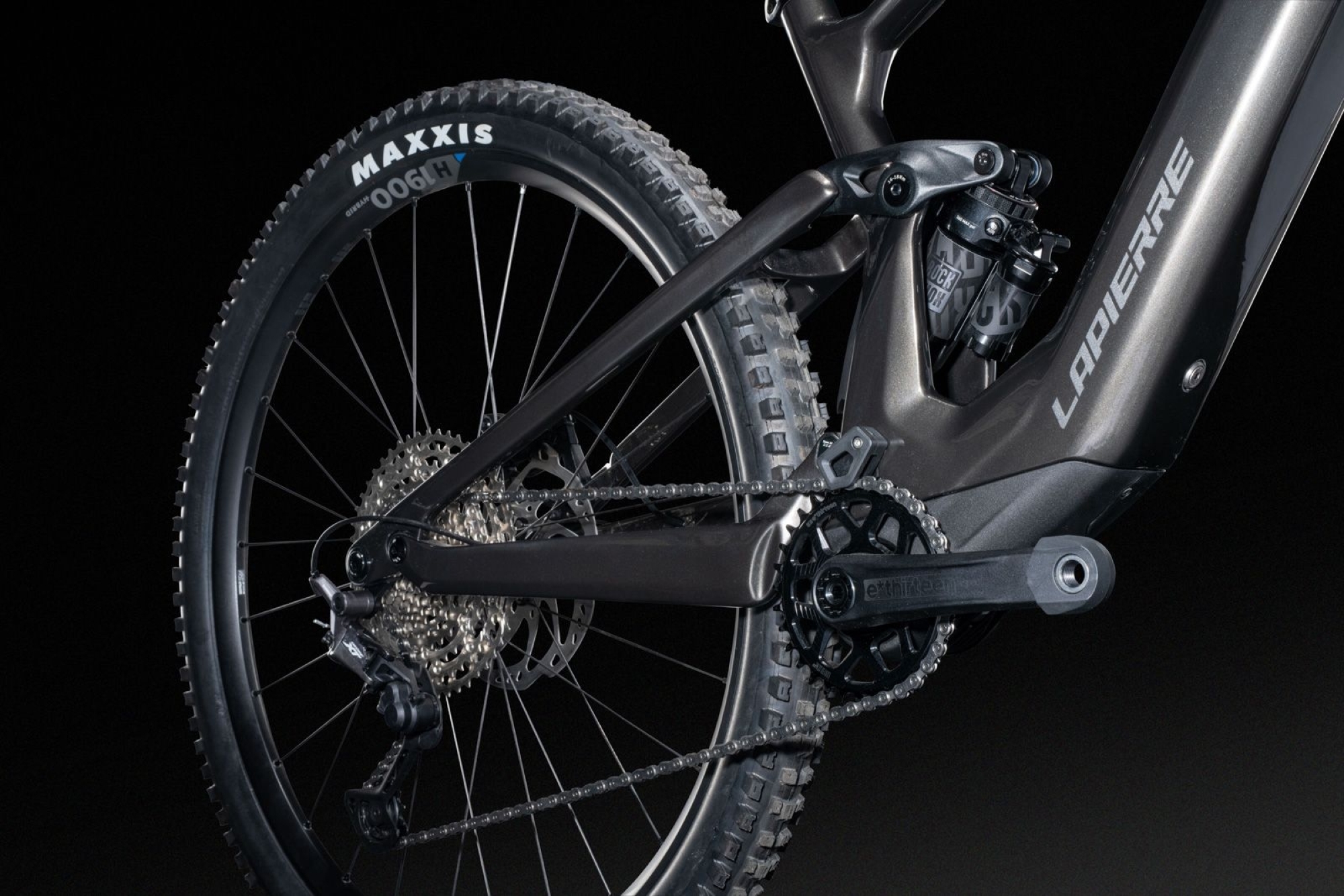

Transmission
Cassette Teeth:
10-51T
Crankset Teeth:
32T
Crankset Type:
single
Number Of Gears:
12
Cassette:
Shimano, Cassette, Deore CS-M6100-12, MICRO SPLINE
Chaîne:
Shimano, Chaîne, Deore M6100 12s
Guide chaîne:
Lapierre, 1x
Pédalier:
E Thirteen, Helix Core Fazua + E13 Helix Race alloy chainring

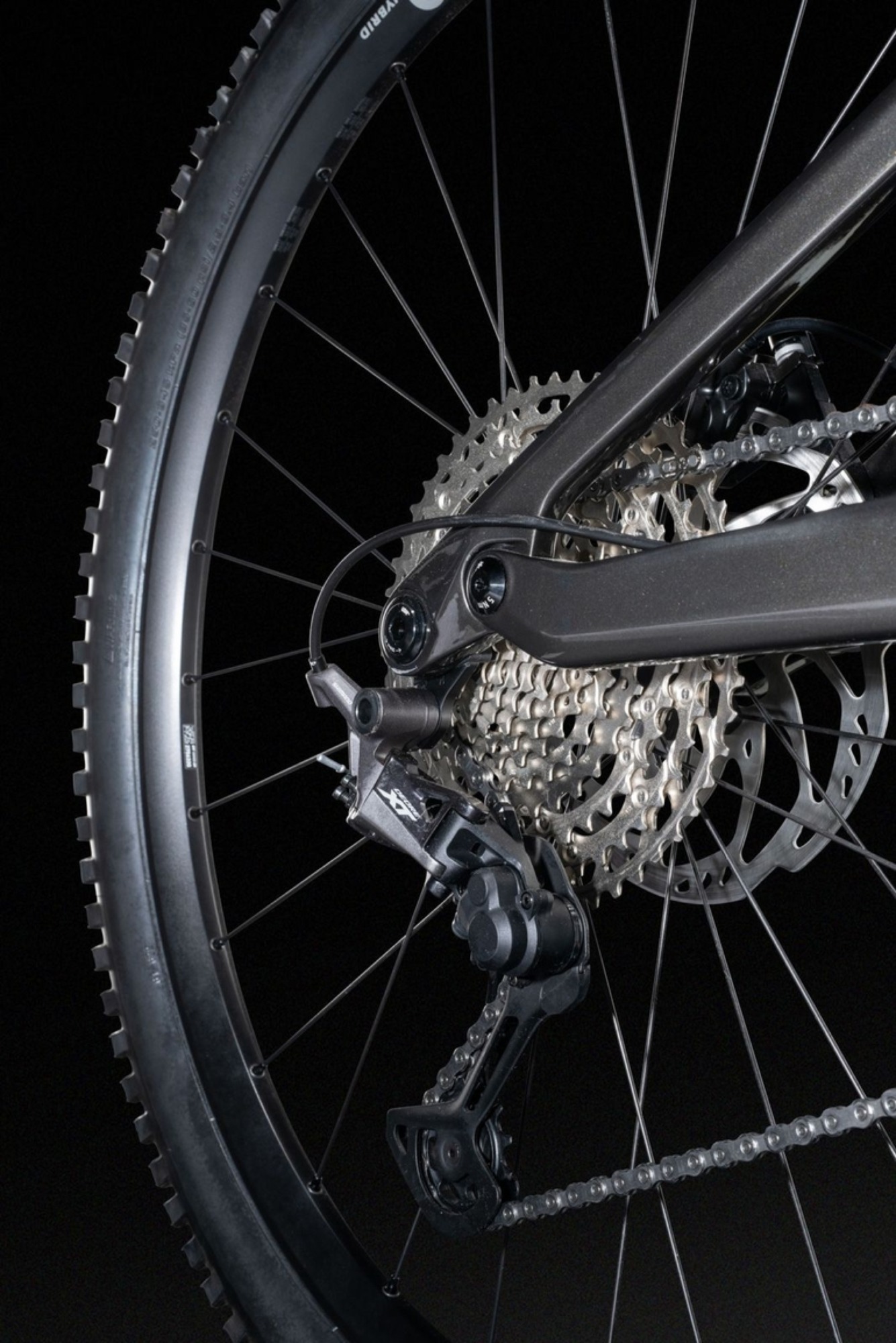

Dérailleur Arrière:
Shimano, XT M8100, 12s Shadow +
Vitesse:
Shimano, Derailleur
Pédales:
XLC, by VP
Selecteur de vitesse Gauche:
Shimano, Triggershift, Deore 12s Rapidfire
Selecteur de vitesse Droit:
Shimano, Triggershift, Deore SL-M6100
