Cadre et plus
Taille:
S,M,L,XL
Max loadable weight (KG):
120 kg
Front Fork Type:
Suspension
Suspension Type:
Fully
Travel Front:
170 mm
Fourche:
Rockshox, ZEB Ultimate Charger 3.1 RC2 15×110 29″ 170 mm
Cadre:
Suprême 5 alloy, Aluminium, Homme
Amortisseur:
Rockshox, Super Deluxe Ultimate RC2T 205x60mm Trunnion/30x8mm
Cintre et Selle
Handlebar Diameter:
35 mm
Handlebar Material:
Aluminium
Handlebar Rise:
30
Handlebar Width:
800 mm
Seatpost Material:
Aluminium
Seatpost Travel (mm):
125 mm,150 mm,170 mm,200 mm
Stem Length:
35 mm,45 mm
Poignée:
Lapierre, grips small diameter
Cintre:
Lapierre, Flat bar, Thirty Five Alloy 6061DB, Rise: 30 mm, Ø: 35 mm
Jeu de direction:
Acros, Semi-integrated, Integrated ZS56/ZS56 Block Lock
Selle:
Selle Royal, Terra Ridon X3 145mm Kium Mobius
Tige de Selle:
JD, Dropperpost, YSI05, Ø: 31.6 mm, travel: 125 mm
Potence:
Lapierre, Thirty Five alloy 0°, Ø: 35 mm, L: 35 mm
Composants E-bike
Battery Capacity:
800 Wh
Battery Location:
Downtube
Motor Torque [nm]:
85 Nm
Motor Location:
Center
Batterie:
Bosch, Powertube Horizontal 800Wh
Chargeur:
Bosch, Quick Charger, Charger 4A
Ecran:
Bosch, Kiox 300
Moteur:
Bosch, Performance line CX

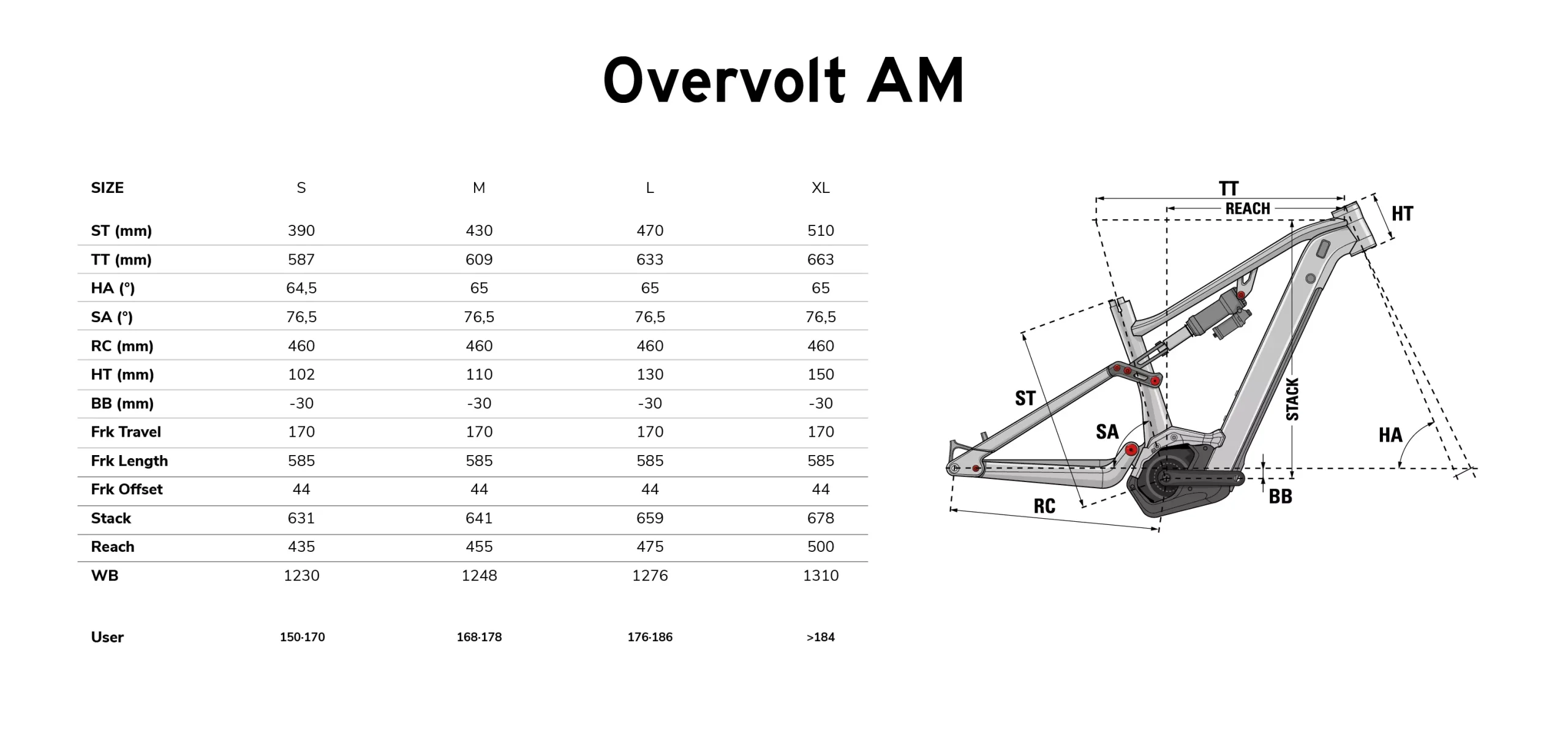

Géométrie
Bottom bracket drop [mm]:
30 mm
Chain stay length [mm]:
460 mm
Fork offset [mm]:
585 mm
Fork total length [mm]:
44 mm
Head tube angle:
64.5 degrees,65 degrees
Head tube length [mm]:
110 mm,130 mm,150 mm
Reach [mm]:
433 mm,455 mm,475 mm,500 mm
Stack [mm]:
638 mm,641 mm,659 mm,678 mm
Seat tube angle:
76.5 degrees
Seat tube length [mm]:
390 mm,430 mm,460 mm,490 mm
Top tube length [mm]:
586 mm,609 mm,633 mm,663 mm
Wheelbase [mm]:
1231 mm,1248 mm,1276 mm,1311 mm
Roues et composants de roues
Wheelset Material:
Carbone
Pneu:
Continental, Kryptotal F Enduro Soft, 60-622
Pneu Arrière:
Continental, Kryptotal R Enduro Soft
Paire de Roues:
DT Swiss, HX1501 Spline One 622×30, 15×110 mm
Roue Arrière:
DT Swiss, HX1501 Spline One 584×35, 12×148 mm, XD Driver
Taille de Roue:
29, 27.5
Système de freinage
Brake Rear Mount:
Post Mount
Frein Avant:
Sram, Frein à disque hydraulique, Maven Silver 4 pistons, 220 mm
Frein Arrière:
Sram, Frein à disque hydraulique, Maven Silver 4 pistons, 200 mm
Levier de frein:
Sram, Maven Silver-BL
Disques de frein:
Sram, HS2 220 / 200 mm, 6 bolt Disc
Transmission
Cassette Teeth:
10-52T
Crankset Teeth:
34T
Crankset Type:
single
Number Of Gears:
12
Cassette:
Sram, Cassette, XS1275 T-TYPE 12s, XD
Chaîne:
Sram, Chaîne, GX T-TYPE 12s
Pédalier:
E Thirteen, Helix Core + SRAM XX T-TYPE 55CL
Dérailleur Arrière:
Sram, GX Eagle AXS T-TYPE 12s
Vitesse:
Sram, Derailleur
Pédales:
XLC, by VP
Selecteur de vitesse Gauche:
Sram, Triggershift, AXS Pod 12s
Selecteur de vitesse Droit:
Sram, Triggershift, AXS Pod Controller 12s
