CADRE
CADRE
C:62 Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, Full Integrated Battery
COULEUR
actionteam

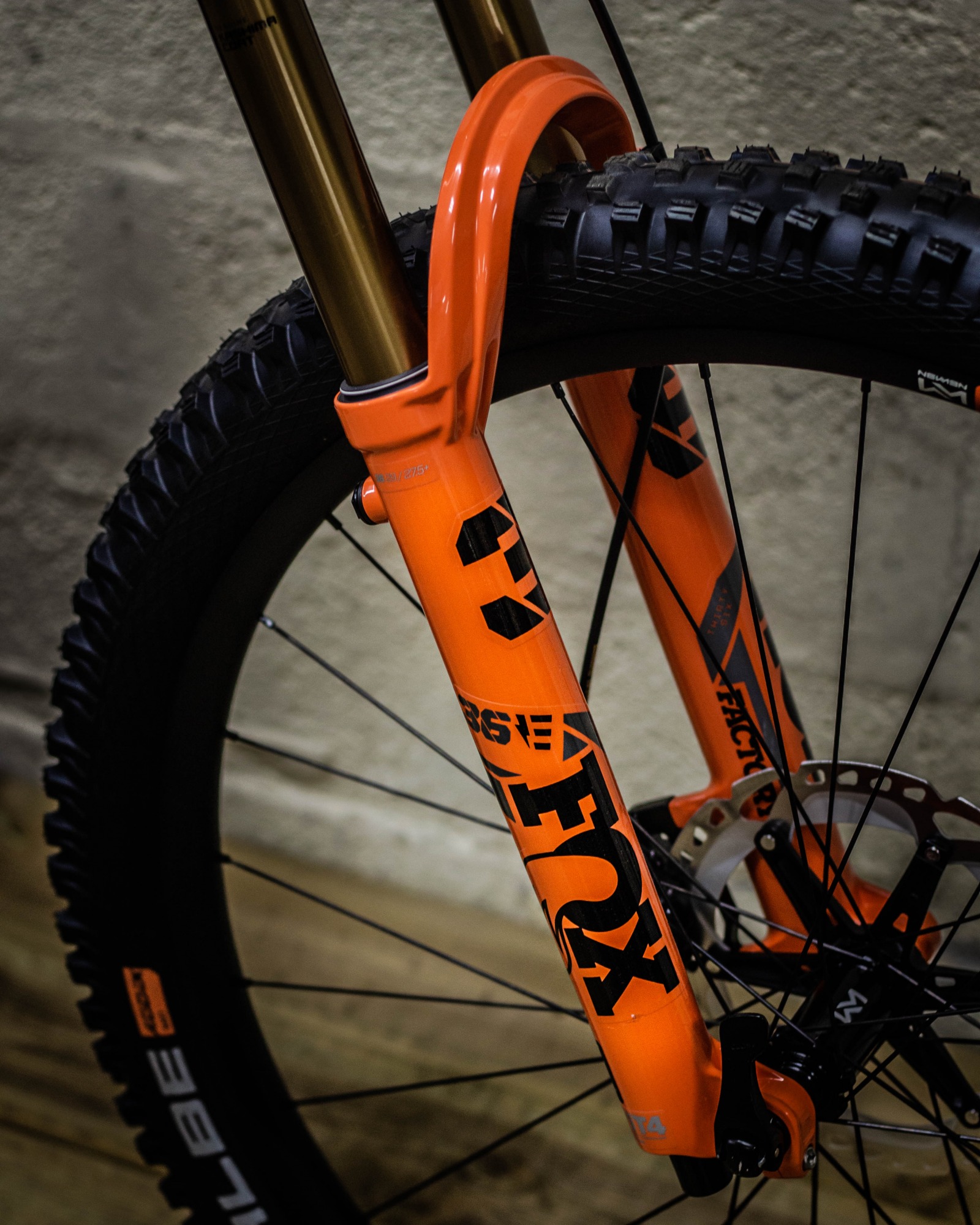

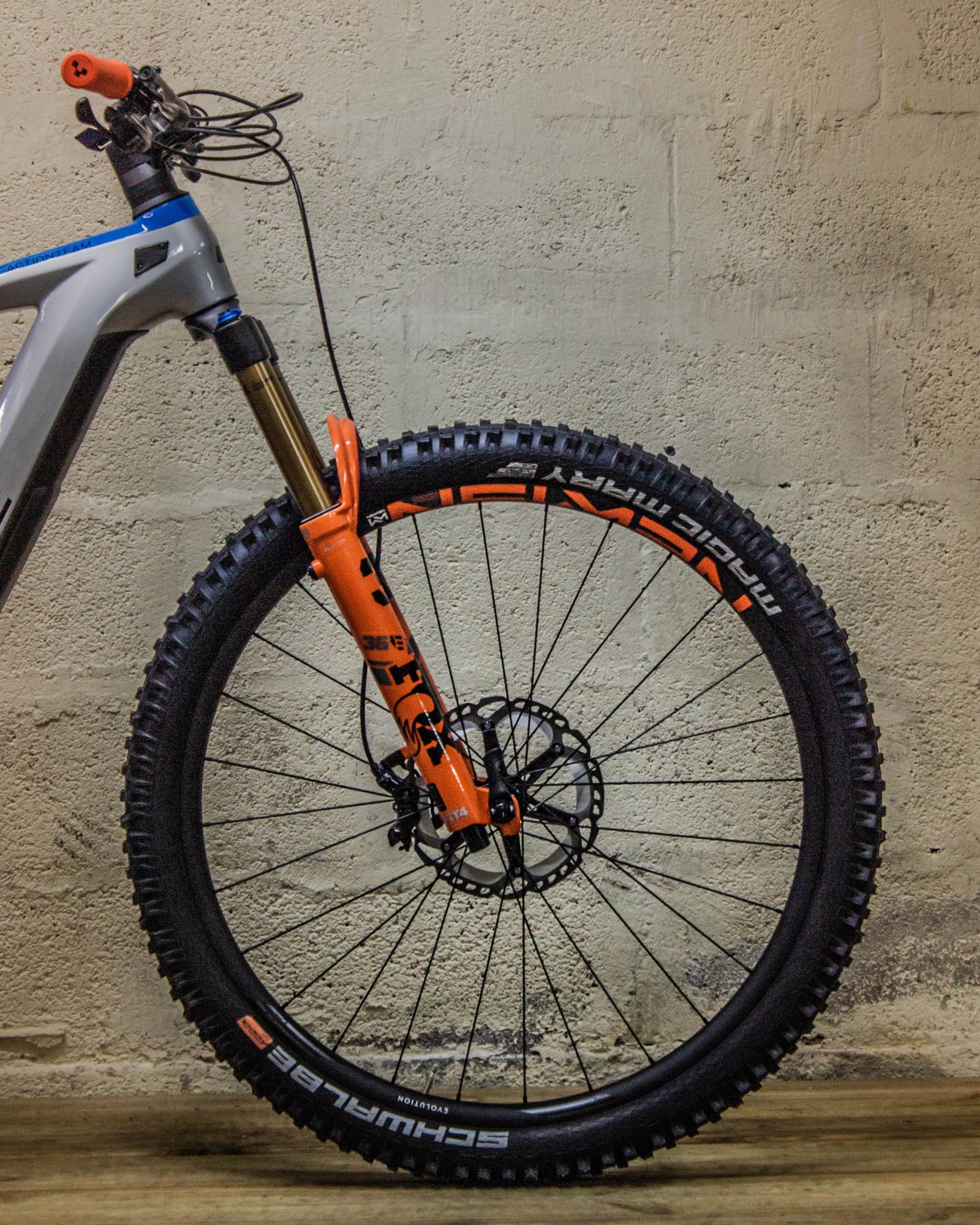

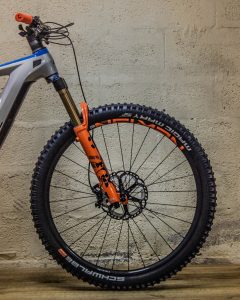

FOURCHE

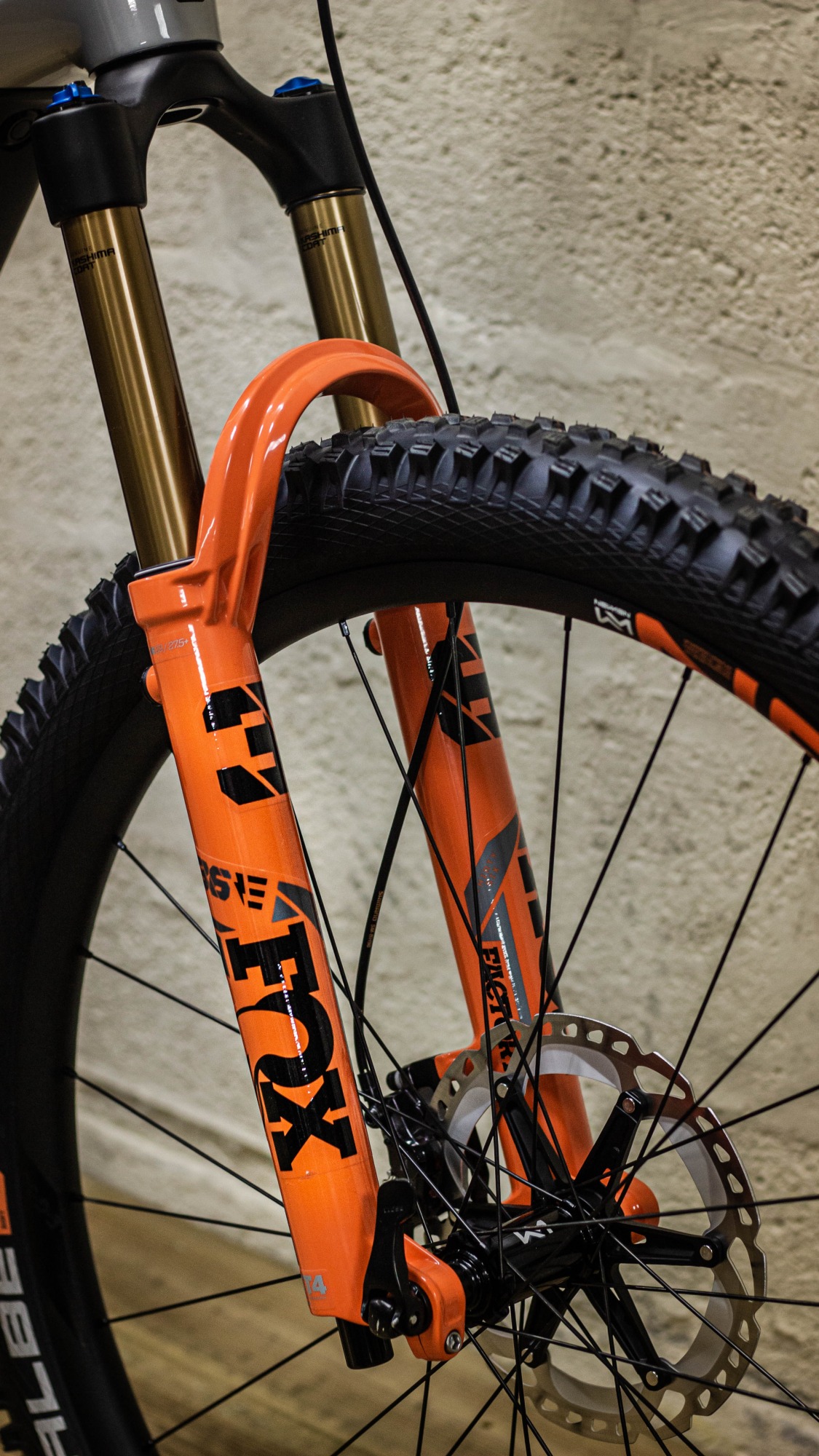

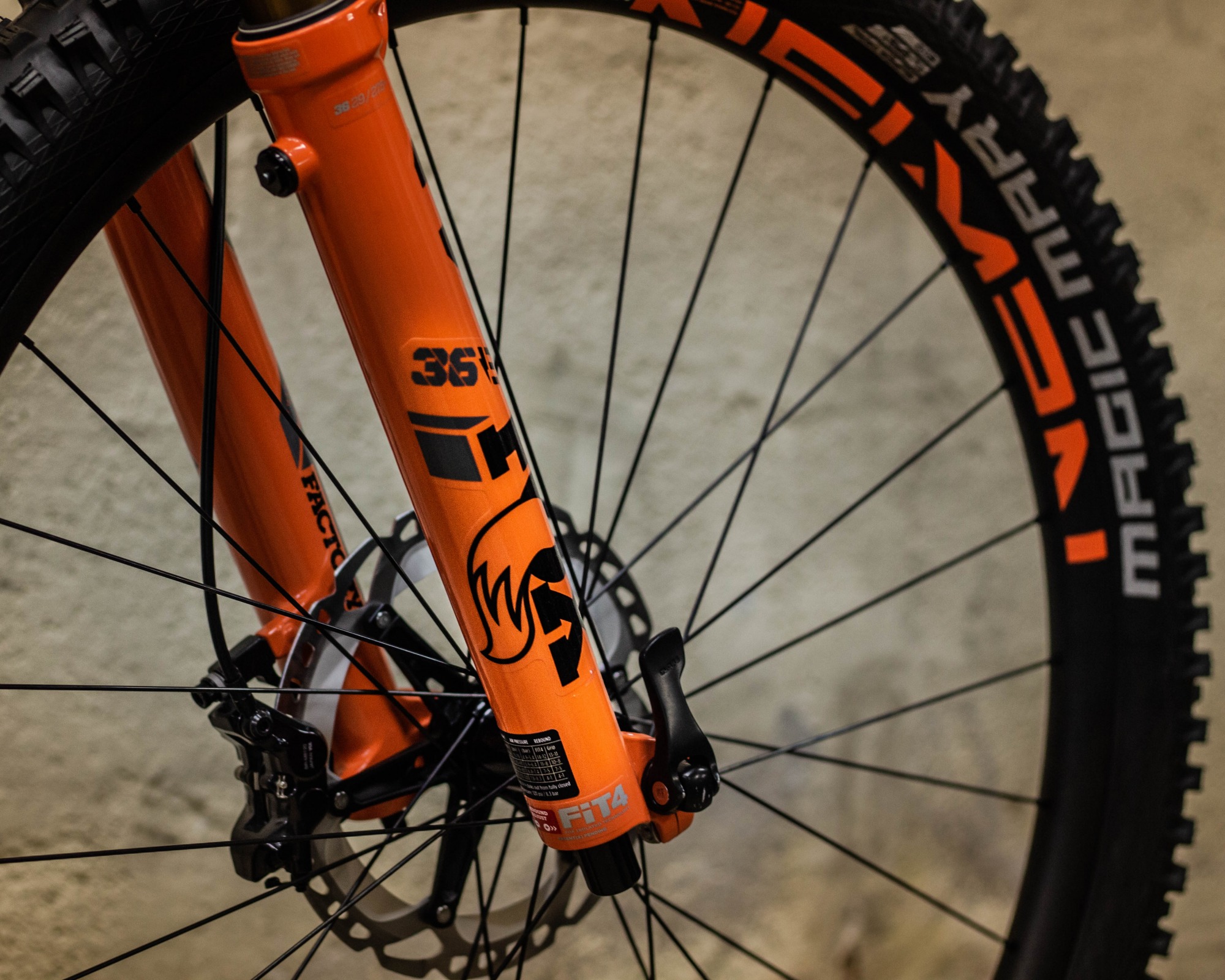

Fox 36 Float Factory FIT4, 3-Position w/Low Speed Compression Adjust, Tapered, 15x110mm, E-Bike Optimized, 150mm, Kashima Coated

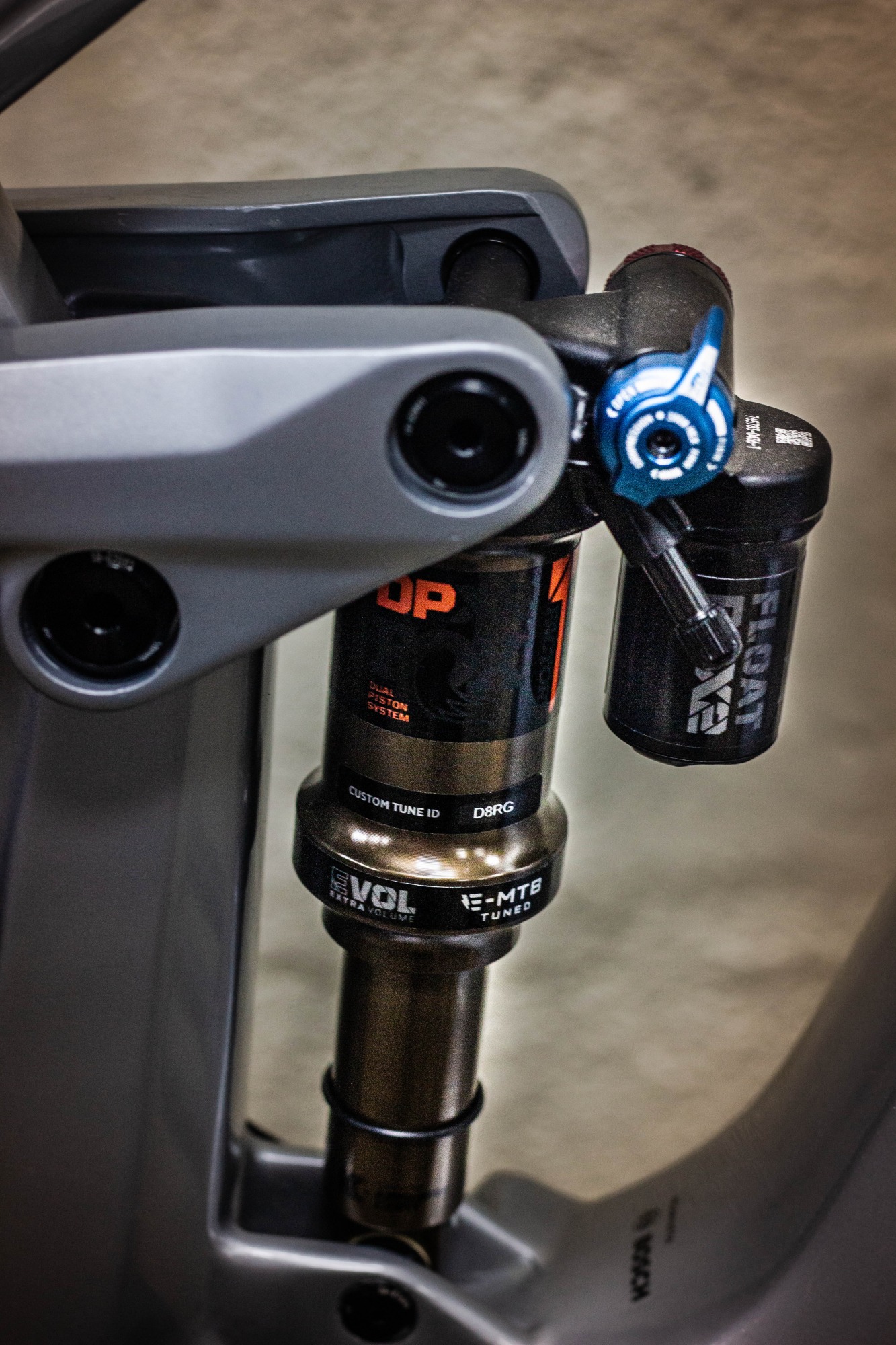

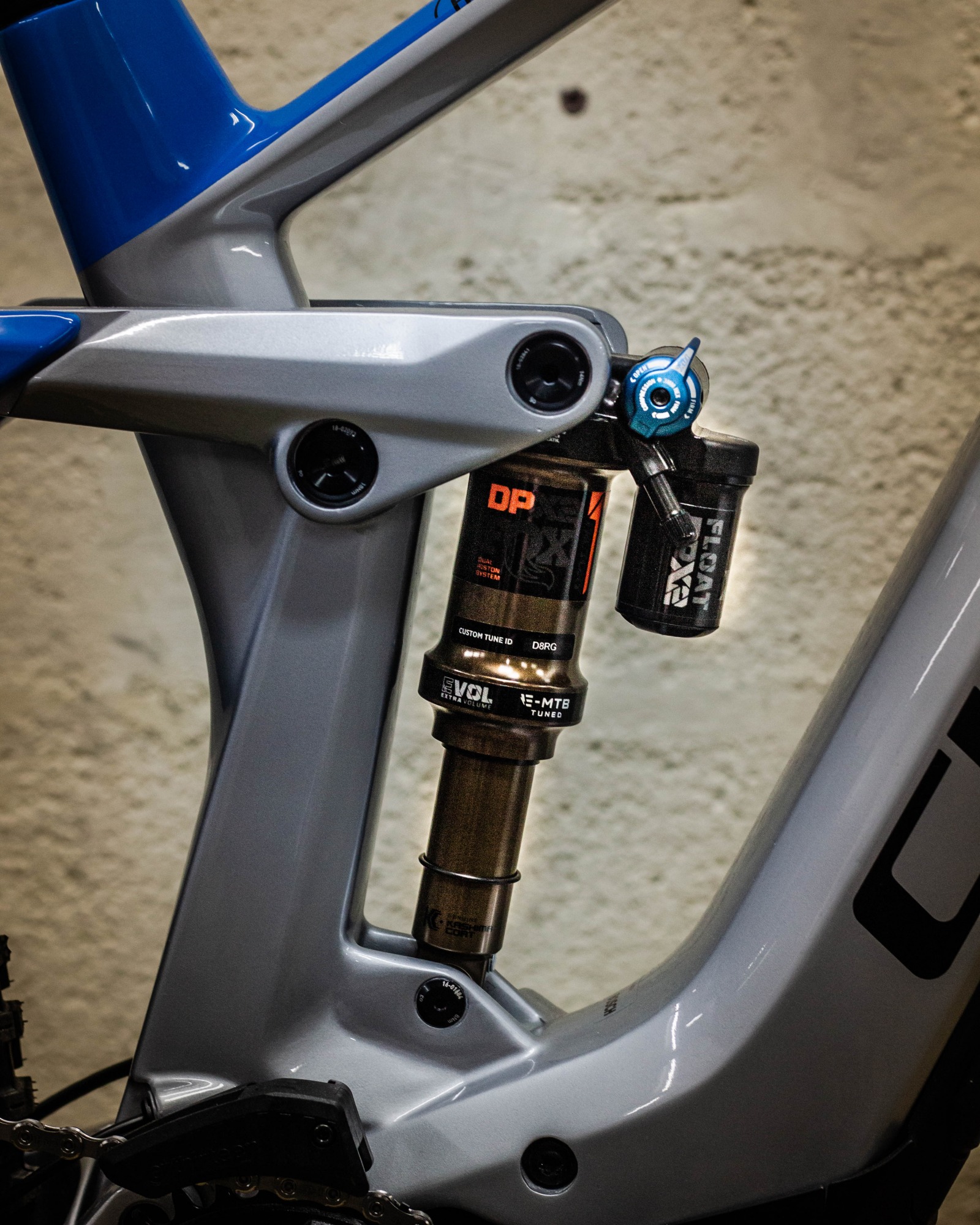

AMORTISSEUR
Fox Float DPX2 Factory EVOL, 185x55mm, Open(Adjustable)/Medium/Firm Mode, Trunnion Mount, Kashima Coated
JEU DE DIRECTION
27.5: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm) // 29: ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm)
POIDS
24,4 kg
HYBRID
MOTEUR
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
BATTERIE
Bosch PowerTube 625
AFFICHEUR
Bosch Kiox
TRANSMISSION
DÉRAILLEUR ARRIÈRE
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
PÉDALIER
e*thirteen Plus Crank, 165mm (27.5: 36T // 29: 34T)

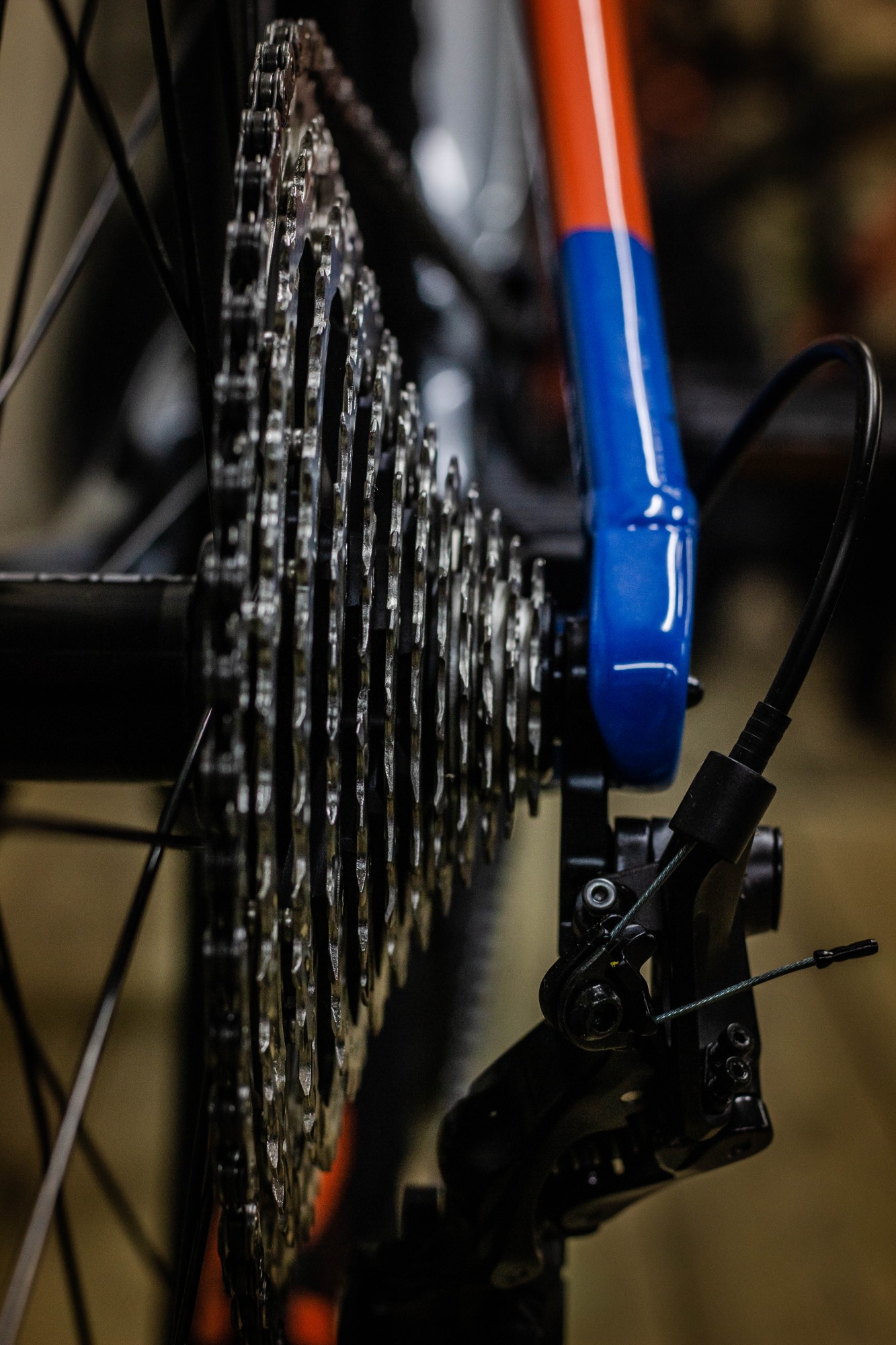

CASSETTE
Shimano Deore CS-M6100, 10-51T
CHAÎNE
Shimano CN-M6100
MANETTES DE DÉRAILLEUR
Shimano XT SL-M8100-IR, Direct Attach

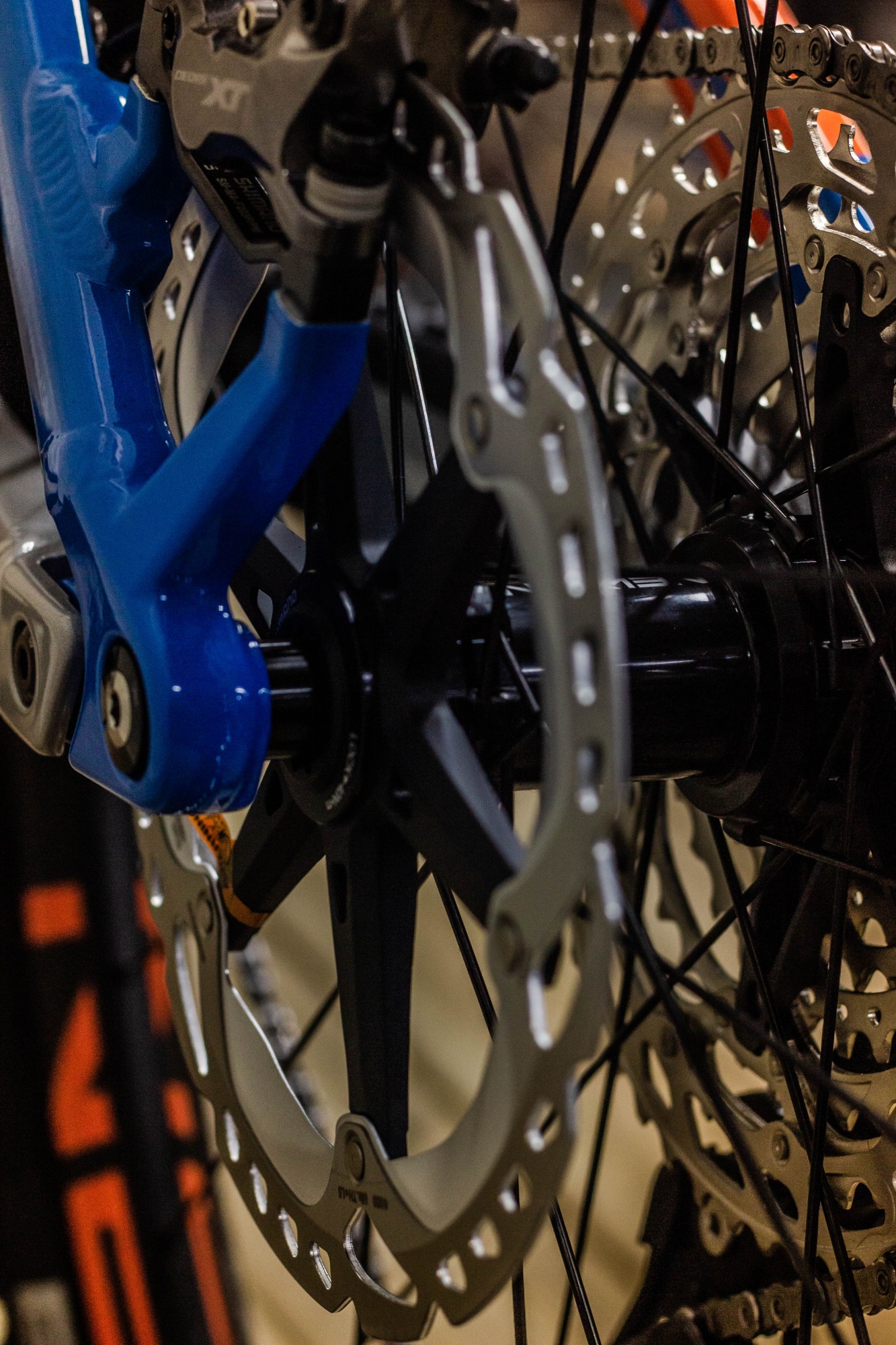

FREINS
FREINS
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
ROUES
ROUES
Newmen Evolution SL E.30, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
PNEU AVANT
Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
PNEU ARRIÈRE
Schwalbe Big Betty, Super Gravity, Addix Soft, Kevlar, 2.4
POSTE DE PILOTAGE
POTENCE
CUBE Performance Stem E-MTB, 31.8mm
CINTRE
Newmen Advanced 318.25, Carbon, 780mm
GRIPS
CUBE Race Grip 31mm, 1-Clamp

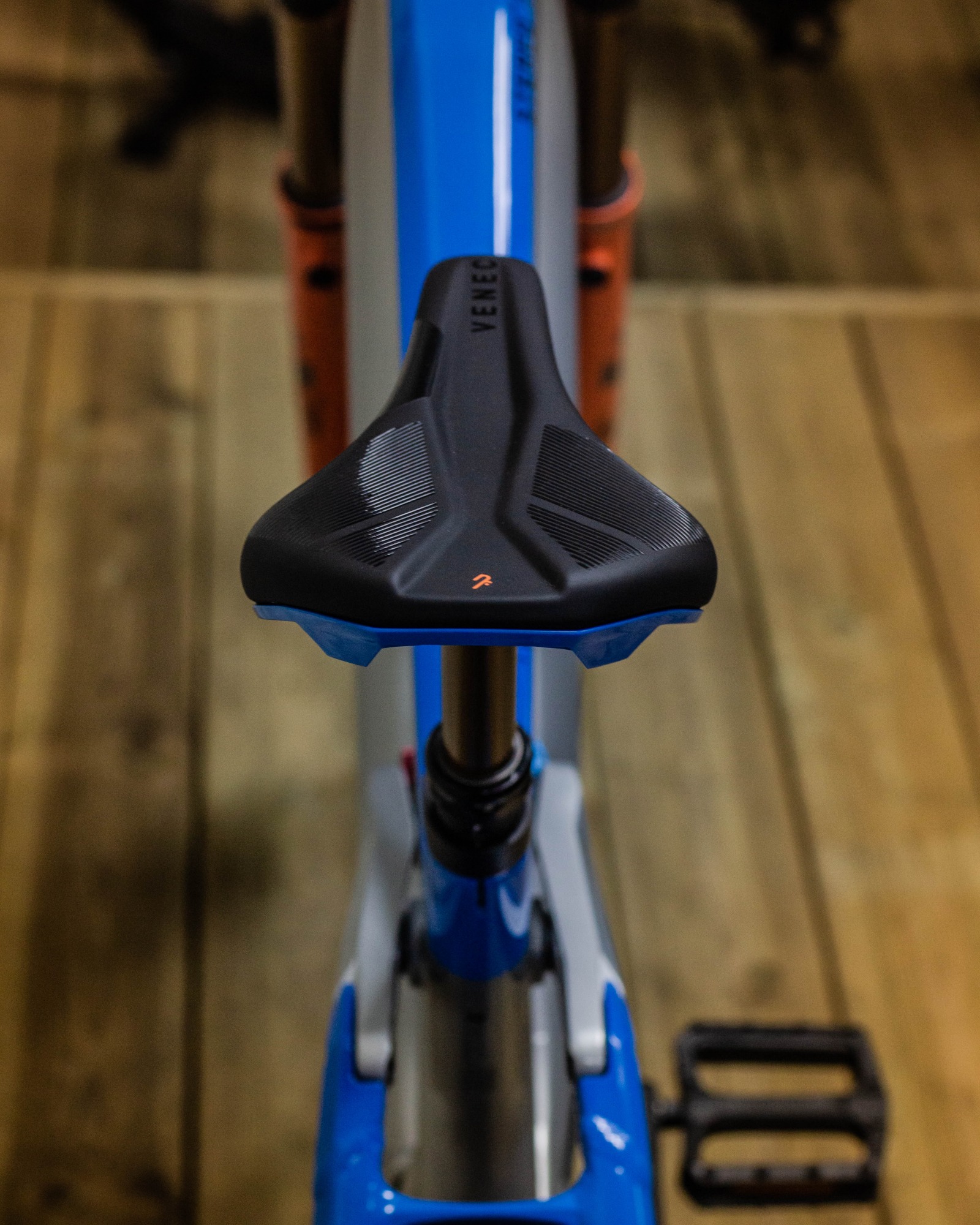

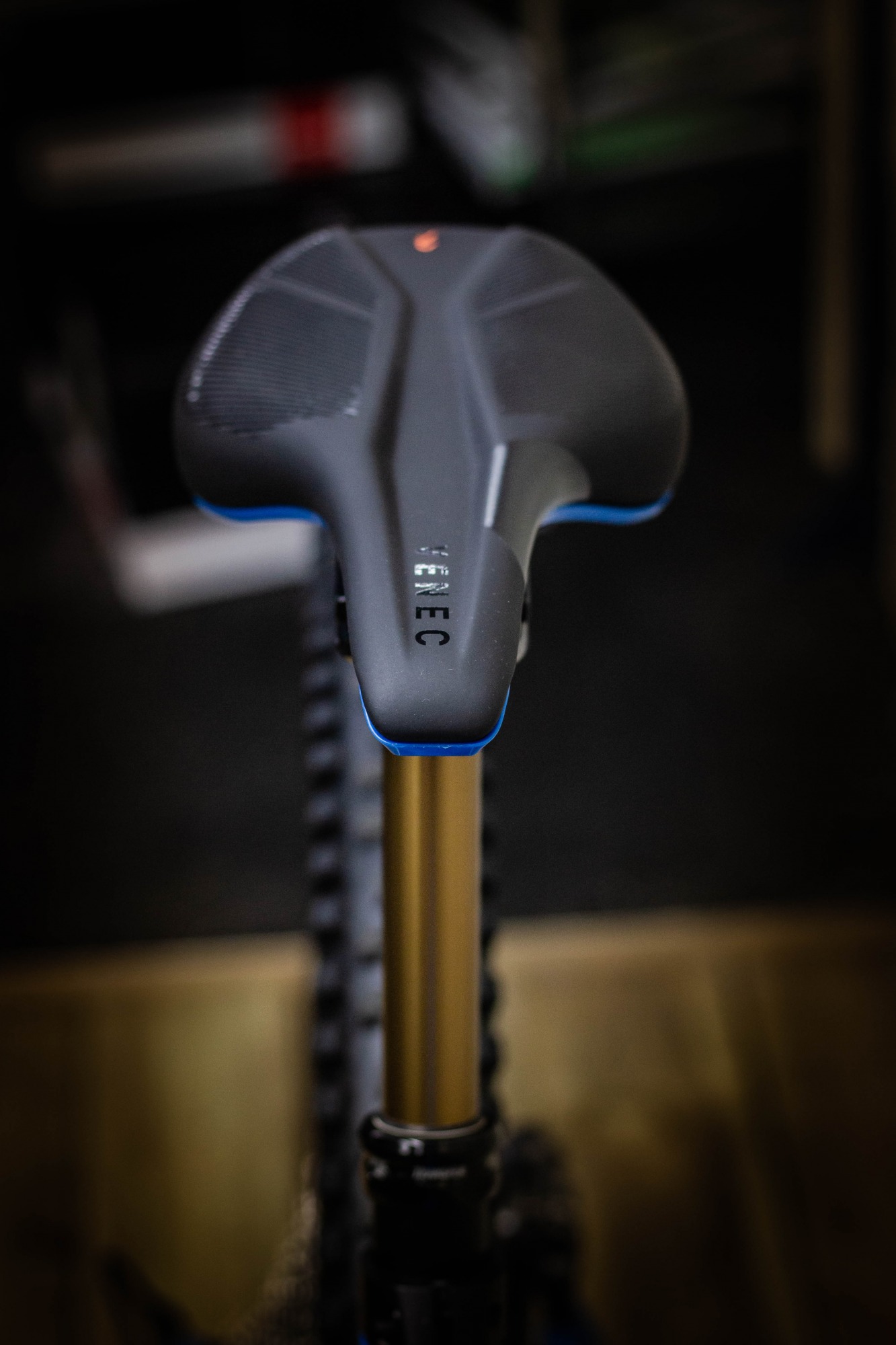

SELLE
Natural Fit Venec
TIGE DE SELLE
Fox Transfer Factory 31.6mm, Kashima Coated (XS, S: 100mm, M: 125mm, L: 150mm, XL: 175mm)
