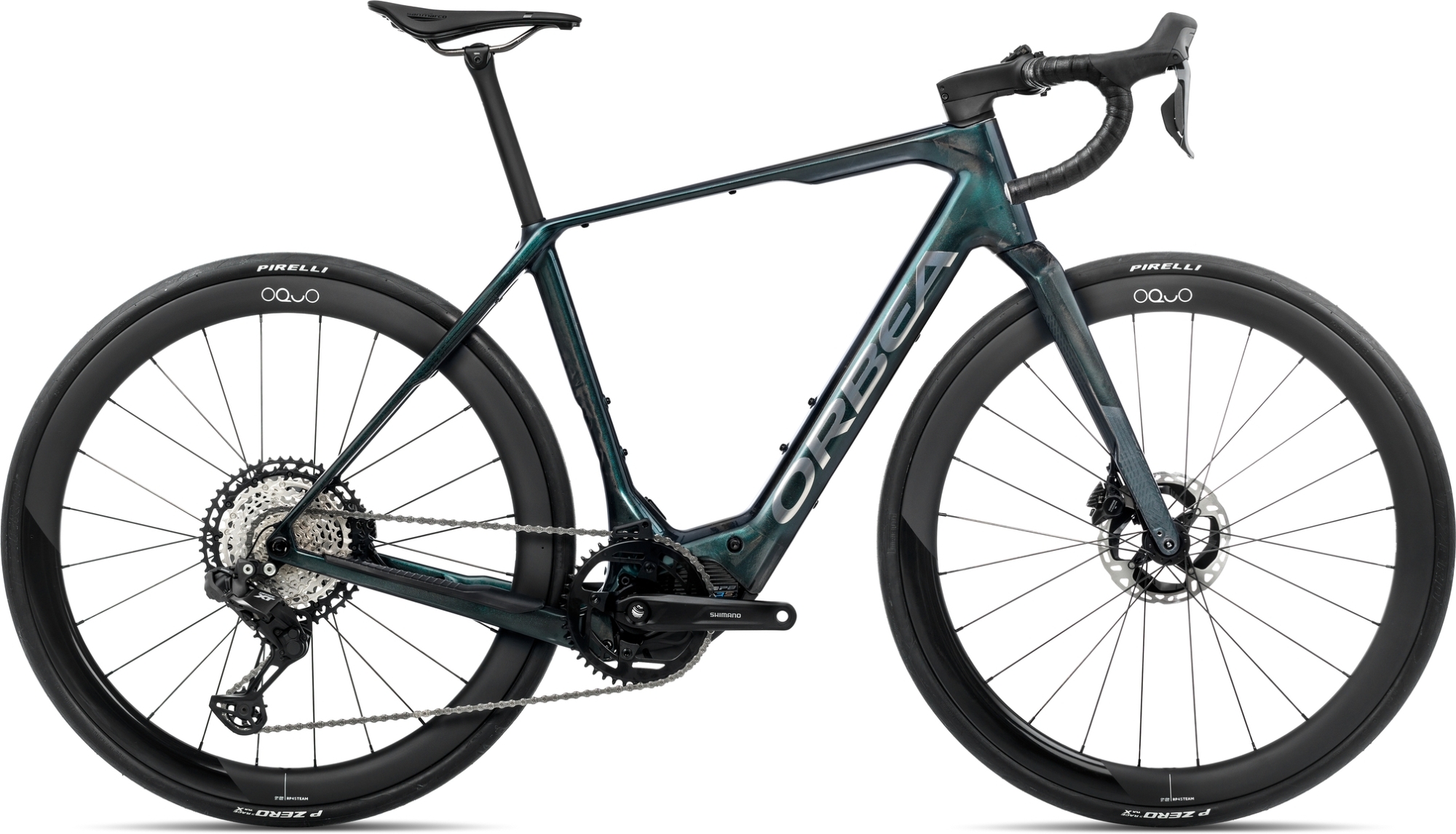

Orbea DENNA M10i 2025

Cadre
Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing.

Fourche
Orbea Denna OMR ICR, full carbon, 1-1/8″ – 1,5″ tappered head tube compatible, Thru axle 12x100mm, thread M12xP1

Direction
FSA 1-1/2″ Integrated Aluminium Cup

Ebike
Batterie
Orbea Internal 420Wh

RANGE EXTENDER
N/A

Moteur
Shimano EP801

Écran
N/A

chargeur
Orbea 2.Generation eBike Smart charger 42V/2-4A

Remote
EN600-L

Transmission
Plateau de pedalier
Plateau de pedalier
Alloy EP8 42t

Manivelle
Shimano Steps EM600

Manettes
Shimano R9270

Pignon
Shimano CS-M8100 10-51t 12-Speed

Derailleur arrière
Shimano XT Di2 M8150 12s SGS Shadow Plus

Chaine
Shimano M6100

Guide-chaîne
Orbea eBike chainguide

Cockpit
Cintre
OC Road Performance RP11 Carbon, Reach 80, Drop 125, w/Di2 hole

Potence
OC Road Performance RP10, -8º

Freins
Freins
Shimano R9270 Hydraulic Disc

N/A

Roues
Roues
Oquo Road Performance RP45TEAM

Pneus
Pirelli P ZERO™ Race X SmartEVO TLR 700x30c

Blocage Avant
Orbea Thru Axle 12x100mm M12xP1 Hollow

Blocage Arrière
Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded

Composants
Tige selle
OC Performance XP10 Carbon, 27.2mm, Setback 0

Selle
Selle San Marco Shortfit 2.0 Start Up Off Road Xilite

Accessoires
Garde-boue
N/A

Guidoline
Lizard DSP 2.5mm

S321
