Cadre et plus
Taille:
XS,S,M,L,XL,XXL
Max loadable weight (KG):
110 kg
Front Fork Type:
Non Suspension

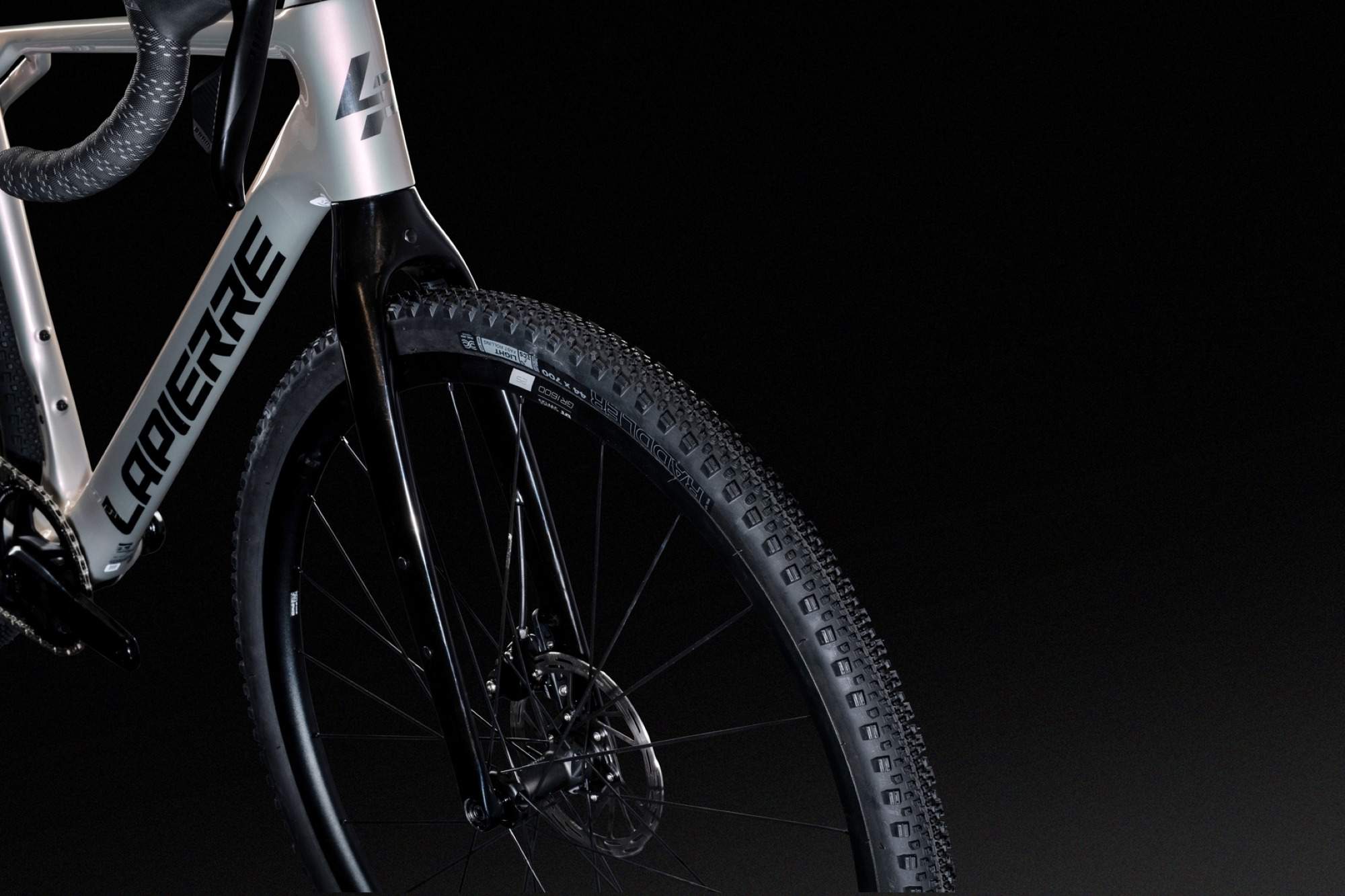

Fourche:
Lapierre, Carbon UD SL

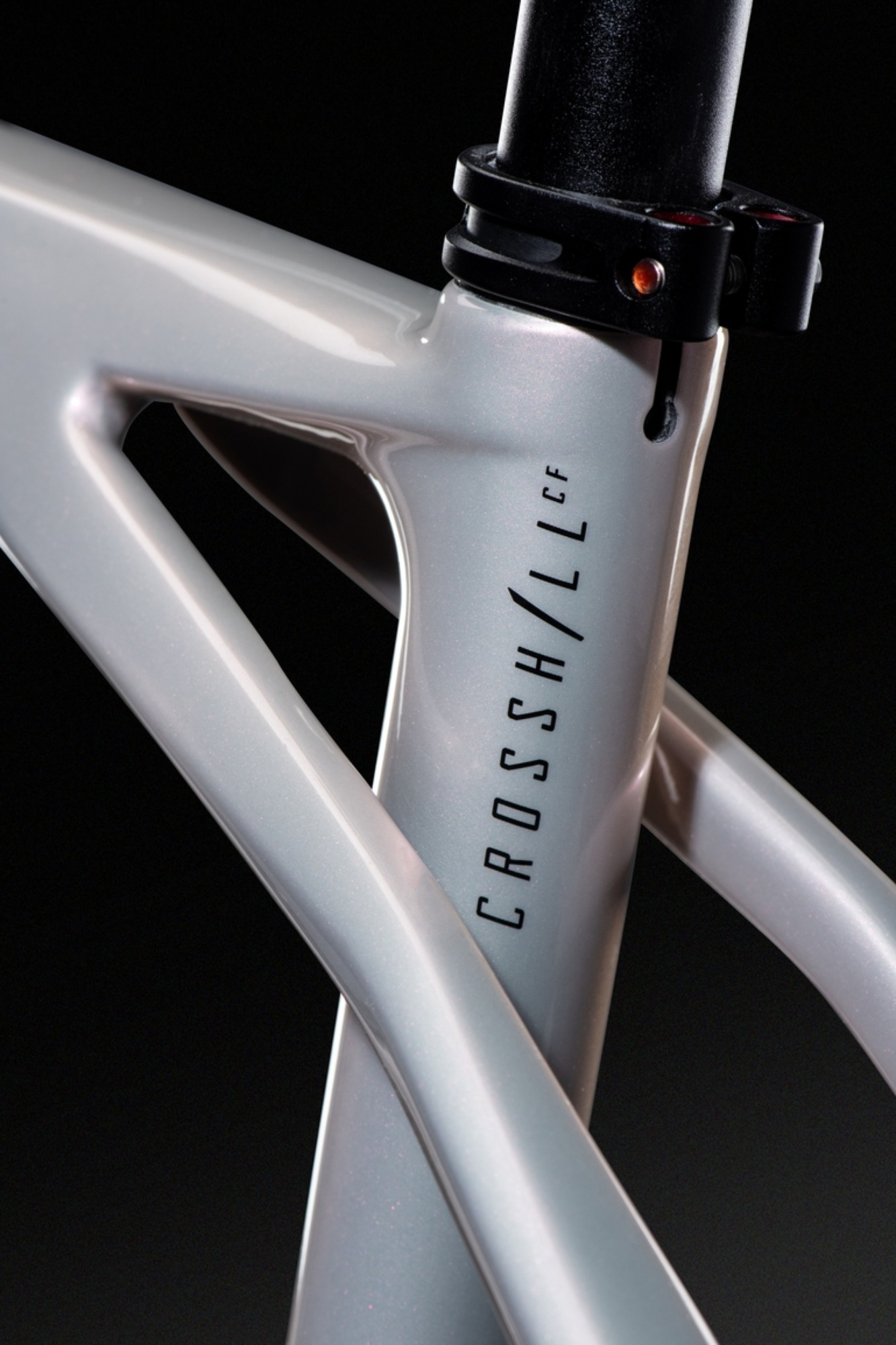

Cadre:
Carbone, Homme
Cintre et Selle
Poignée:
Lapierre

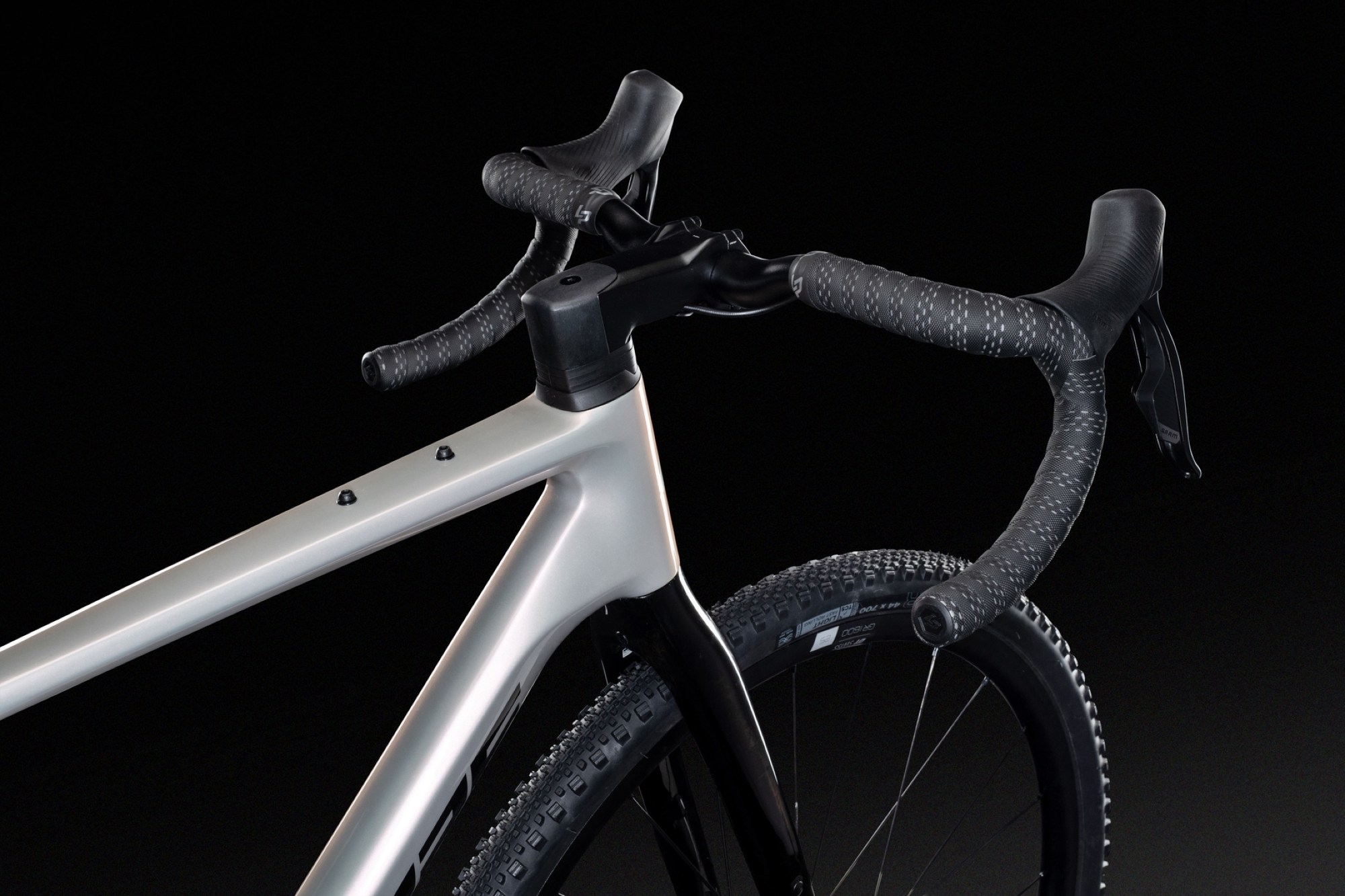

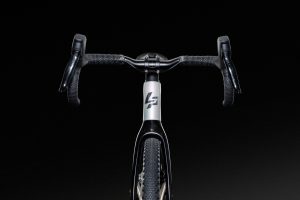

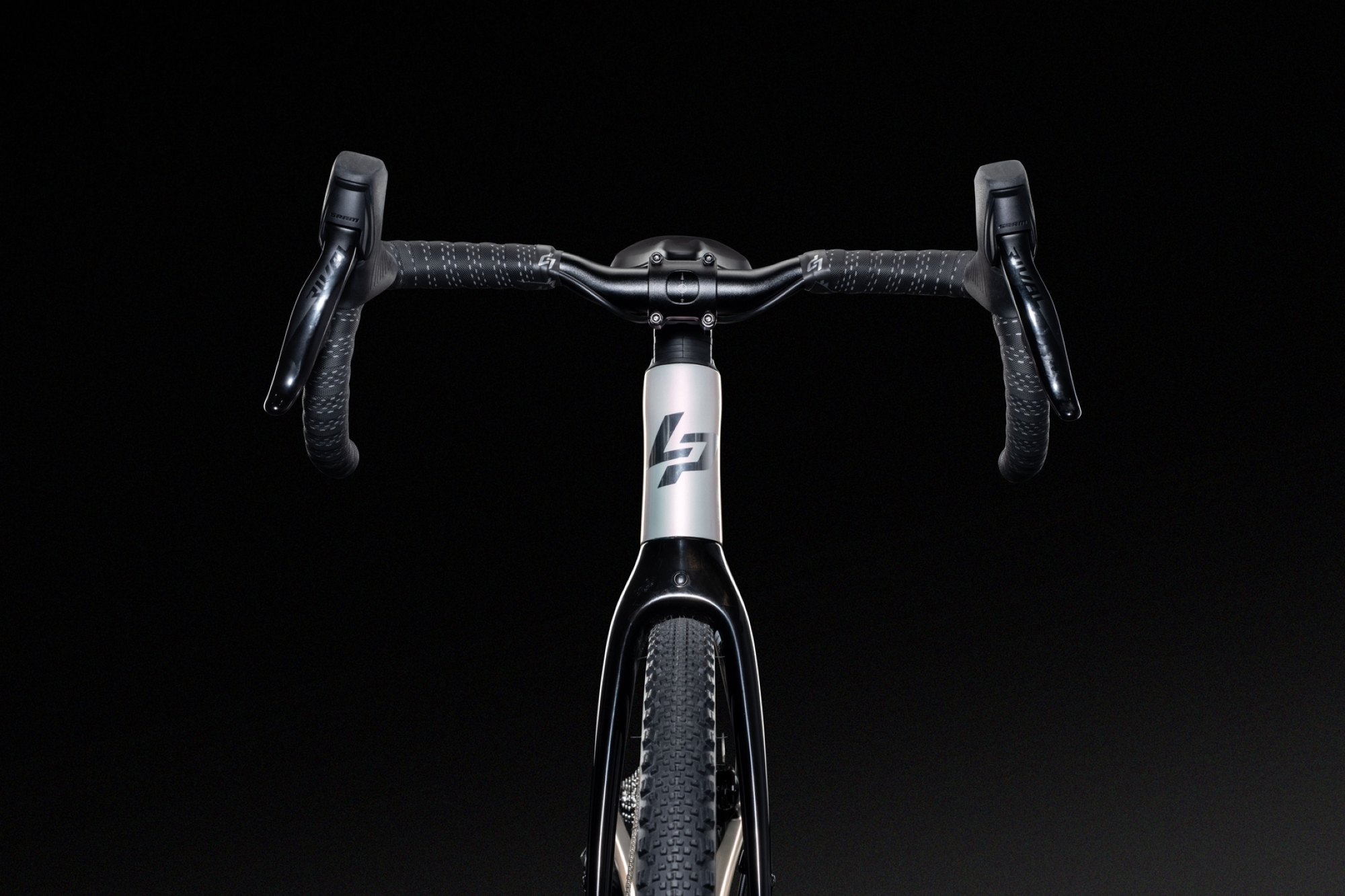

Cintre:
Lapierre, Drop bar, Alloy gravel bar, Drop: 130 mm, Reach: 80 mm
Jeu de direction:
Acros, Integrated, Integrated

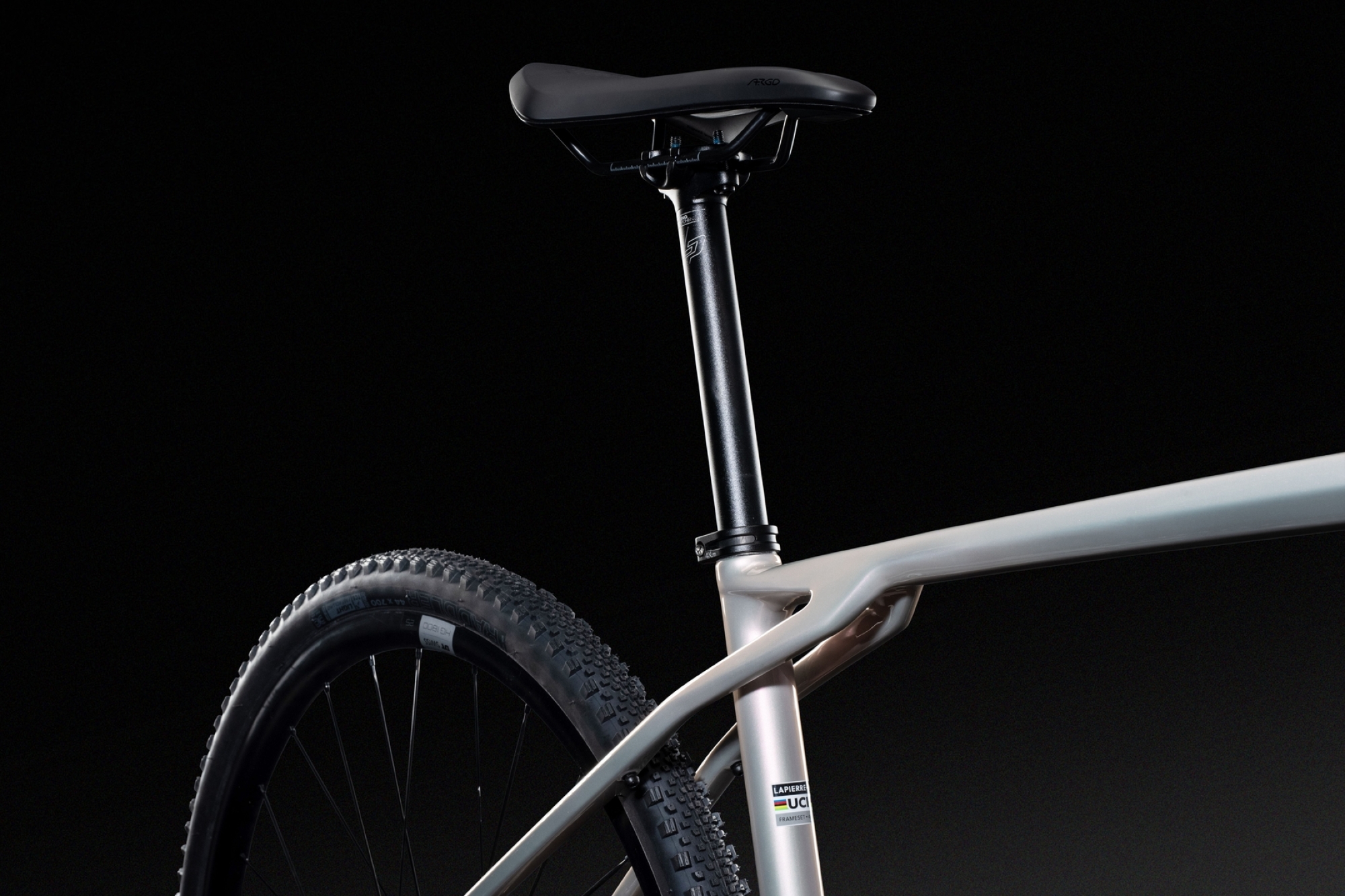

Selle:
Fizik, Terra Argo X7 150mm
Tige de Selle:
Lapierre, Non Suspension, Alloy, Ø: 27.2 mm, L: 350 mm
Potence:
Lapierre, Alloy, internal routing, Ø: 31.8 mm, L: 80 mm
Géométrie
Bottom bracket drop [mm]:
71 mm,70 mm
Chain stay length [mm]:
430 mm
Fork offset [mm]:
425 mm
Fork total length [mm]:
45 mm
Head tube angle:
70.5 degrees,71 degrees,71.5 degrees
Head tube length [mm]:
95 mm,115 mm,130 mm,150 mm,170 mm,195 mm
Reach [mm]:
367 mm,373 mm,380 mm,386 mm,390 mm,398 mm
Stack [mm]:
546 mm,567 mm,581 mm,601 mm,620 mm,644 mm
Seat tube angle:
73.5 degrees,73 degrees,72.5 degrees
Seat tube length [mm]:
440 mm,460 mm,490 mm,520 mm,550 mm,580 mm
Top tube length [mm]:
529 mm,541 mm,552 mm,570 mm,585 mm,601 mm
Wheelbase [mm]:
1007 mm,1016 mm,1027 mm,1036 mm,1045 mm,1062 mm
Roues et composants de roues
Wheelset Material:
Aluminium
Pneu:
WTB, Raddler TCS LIGHT 60TPI, 44-622
Paire de Roues:
DT Swiss, GR1600 Spline 12×100 mm
Roue Arrière:
DT Swiss, GR1600 Spline 12×142 mm
Taille de Roue:
28
Système de freinage
Brake Rear Mount:
Flat Mount
Frein Avant:
Sram, Frein à disque hydraulique, Rival XPLR AXS, 160 mm
Frein Arrière:
Sram, Frein à disque hydraulique, Rival XPLR AXS, 160 mm

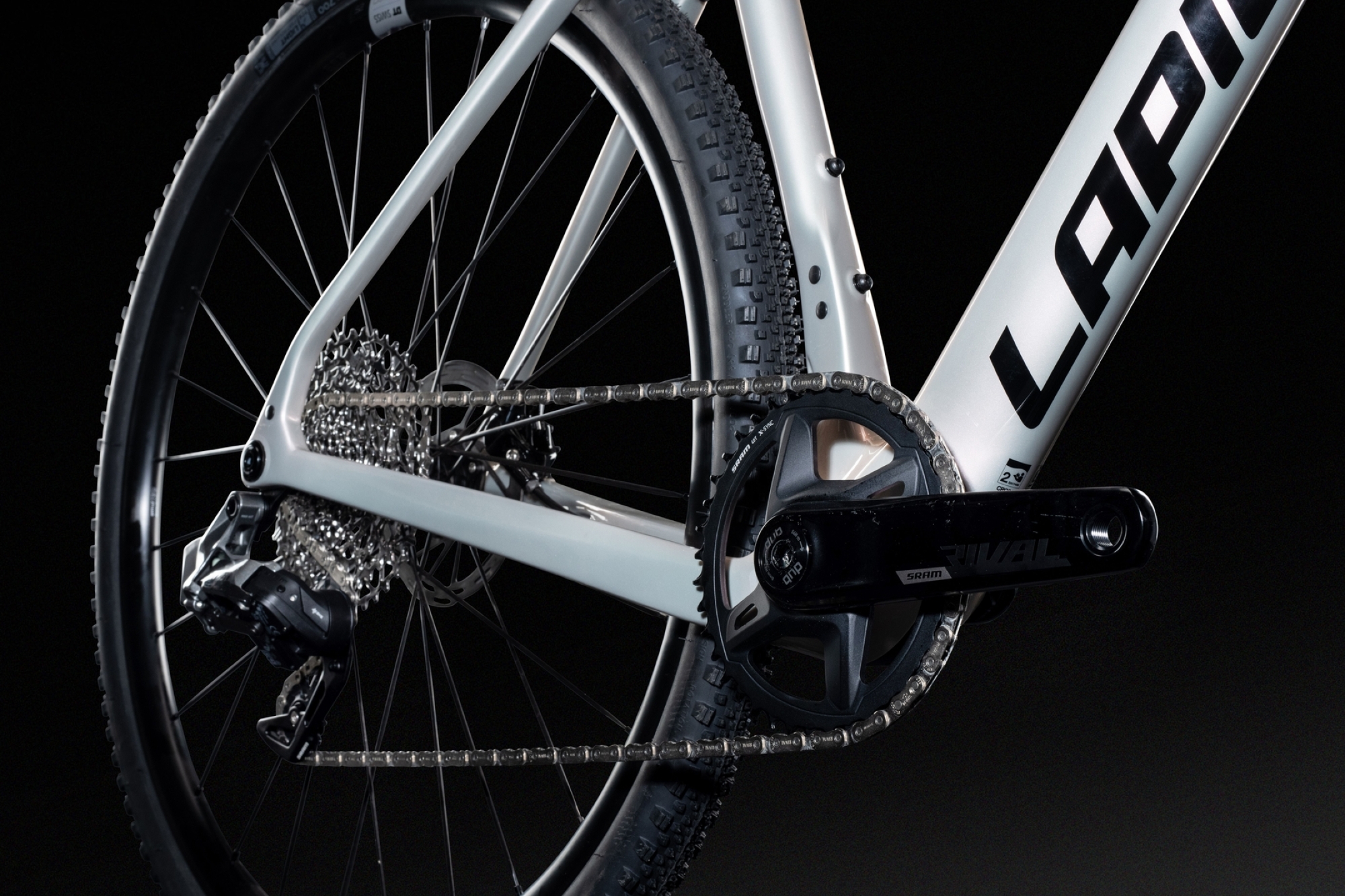

Transmission
Cassette Teeth:
11-44T
Crankset Teeth:
40T
Crankset Type:
single
Number Of Gears:
12
Boitier de pédalier:
Sram, PressFit, DUB 86.5 Road
Cassette:
Sram, Cassette, PG 1231 XPLR-12
Chaîne:
Sram, Chaîne, Rival 12s
Pédalier:
Sram, Rival DUB Wide

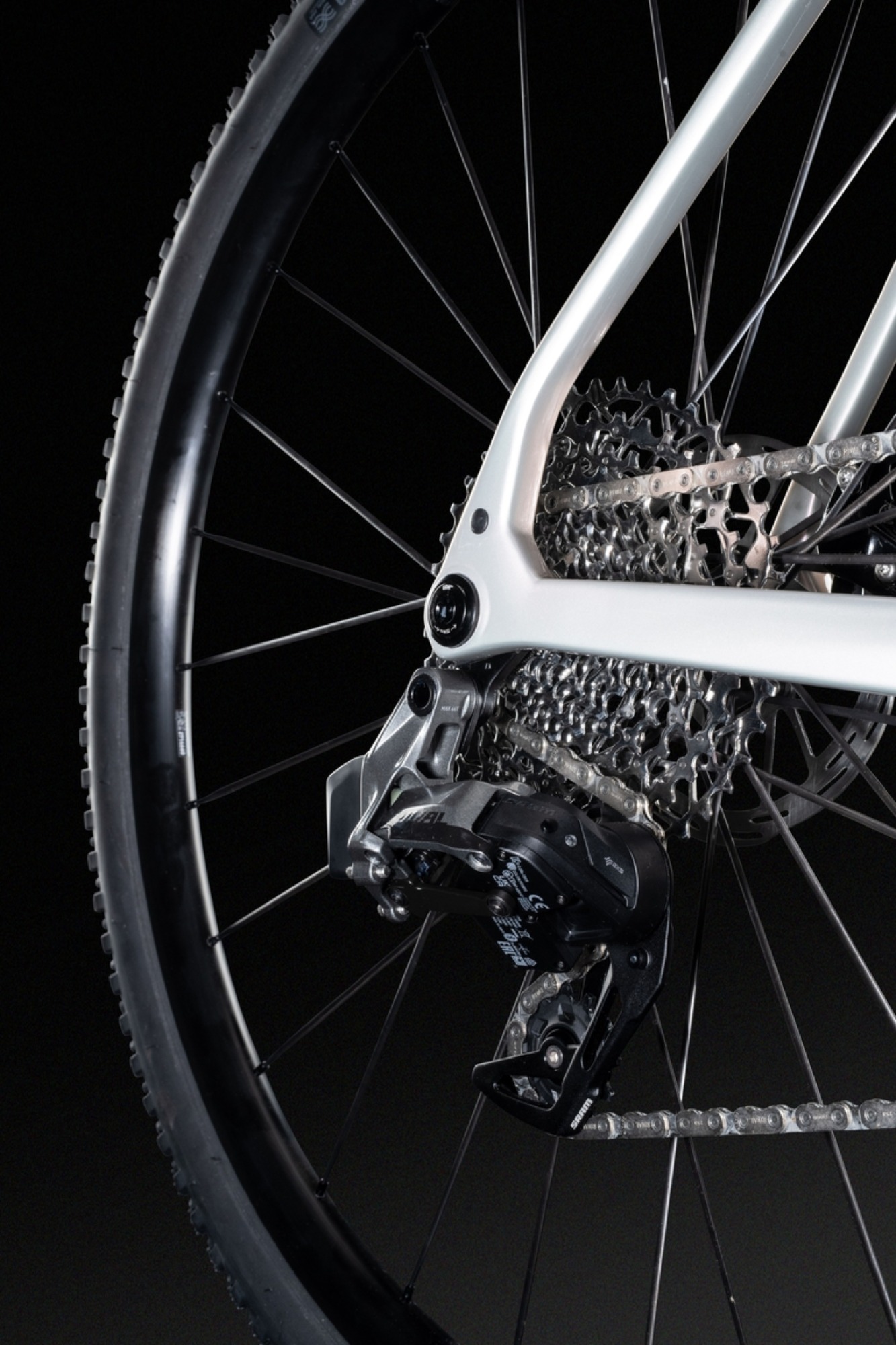

Dérailleur Arrière:
Sram, Rival XPLR AXS, 12s
Vitesse:
Sram, Derailleur
Pédales:
VP, 353 Clips&Strap
Selecteur de vitesse Gauche:
Sram, Triggershift, Rival ETAP AXS D1
Selecteur de vitesse Droit:
Sram, Shift-brake lever, Rival ETAP AXS D1
