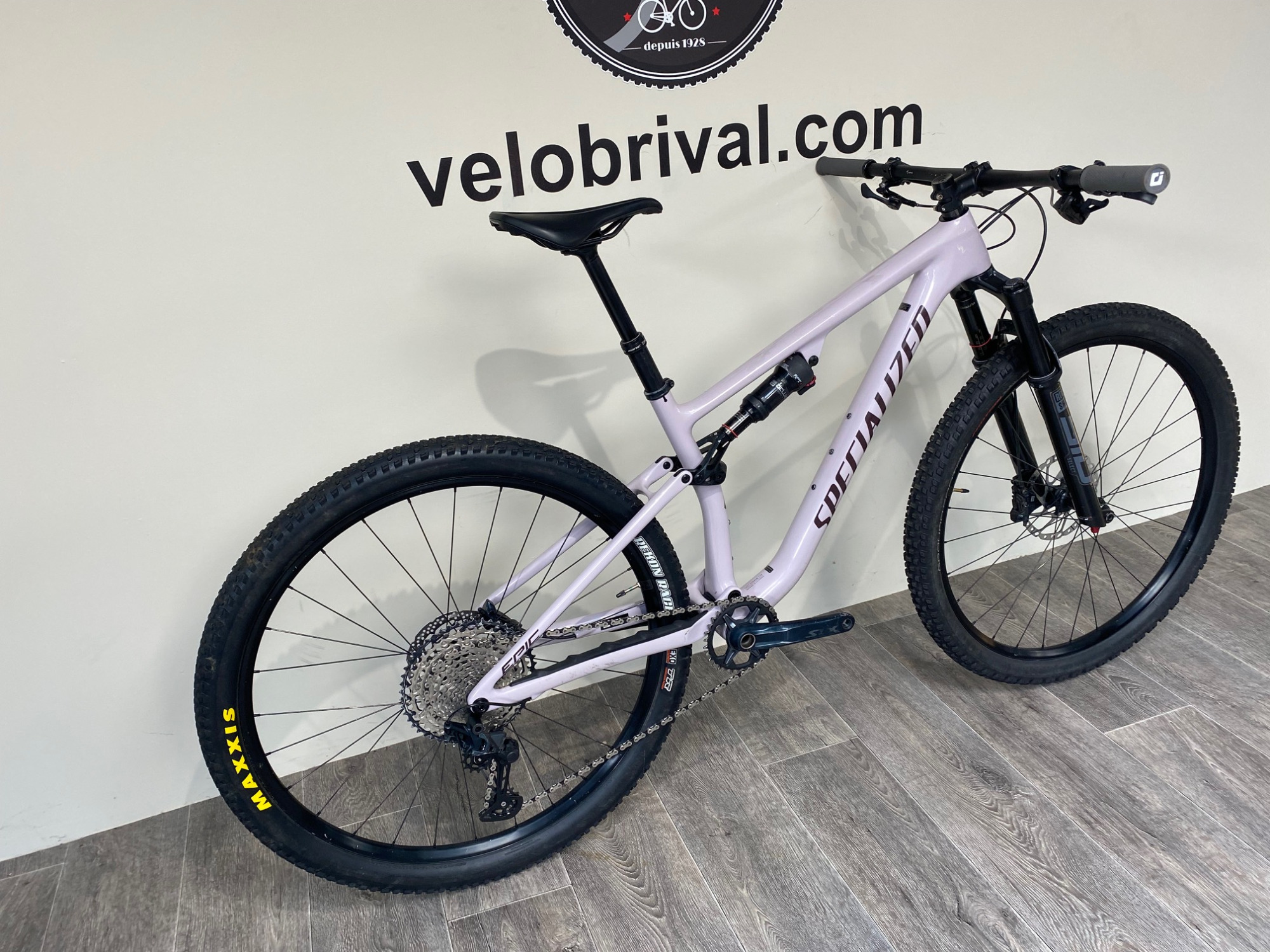

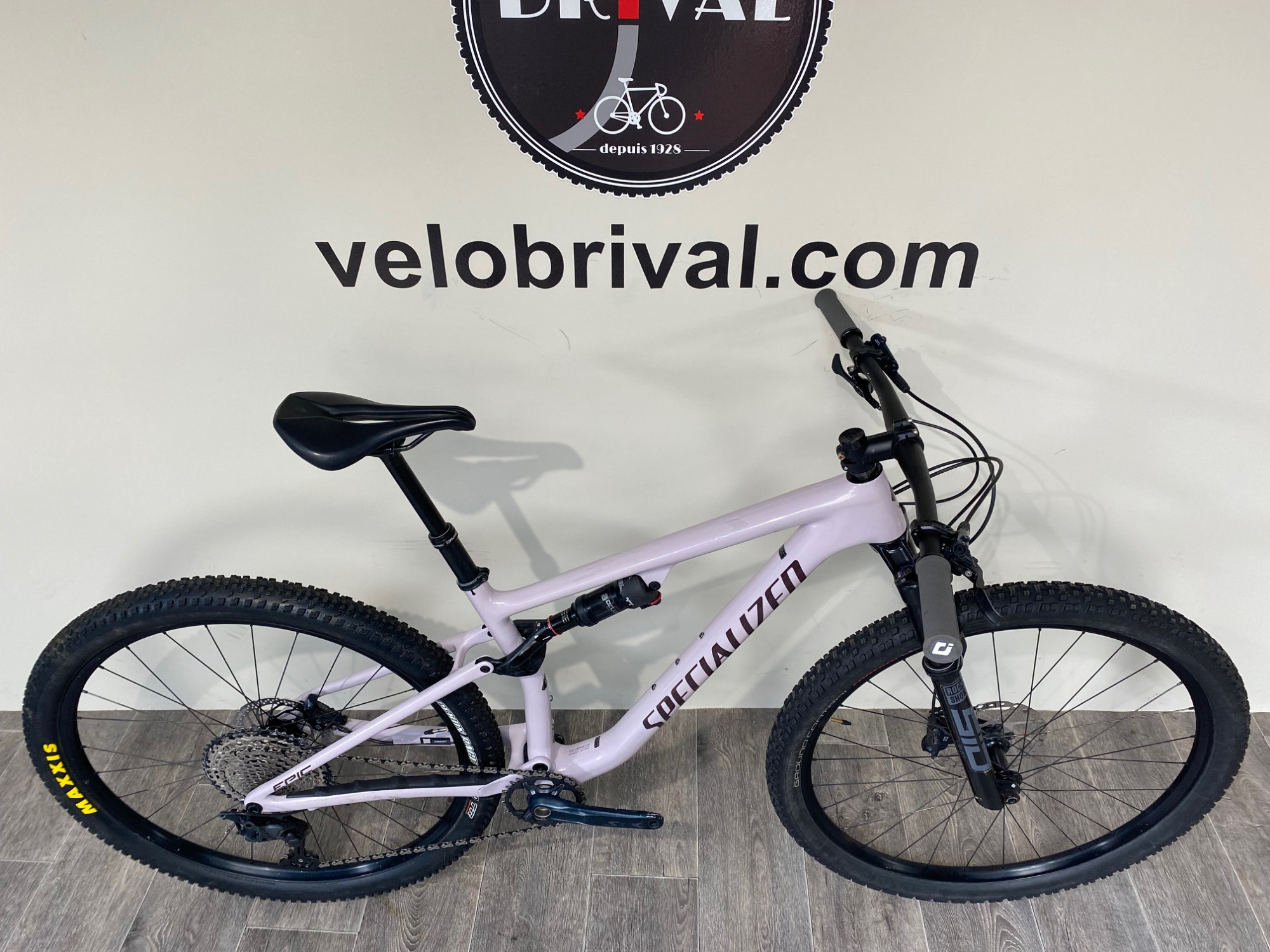

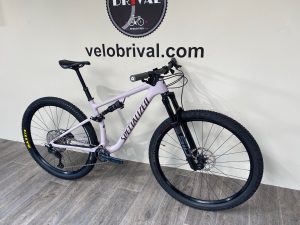

Specialized Epic EVO Comp Bike
Frame Material Details

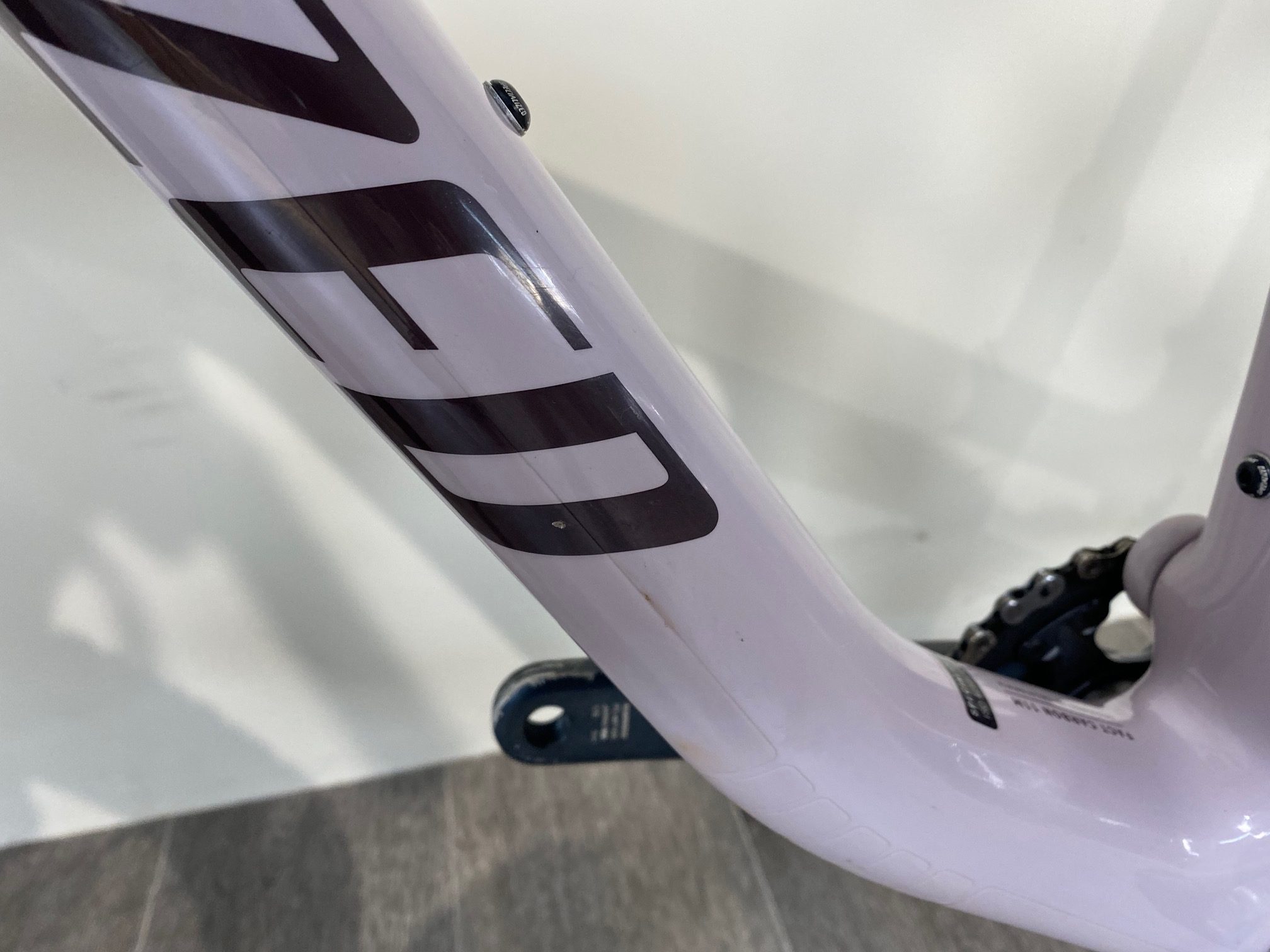

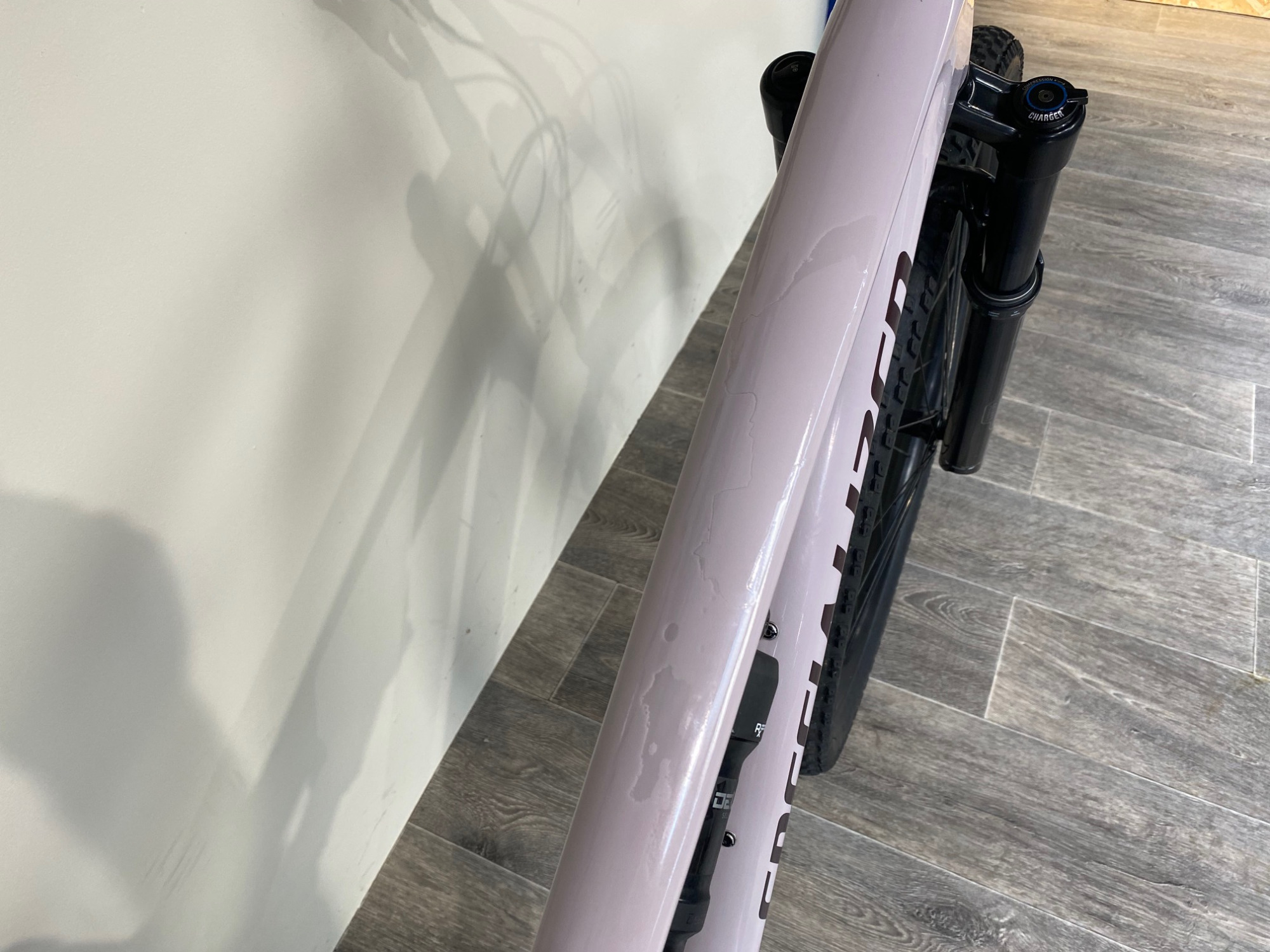

FACT 11m full carbon with internal cable routing

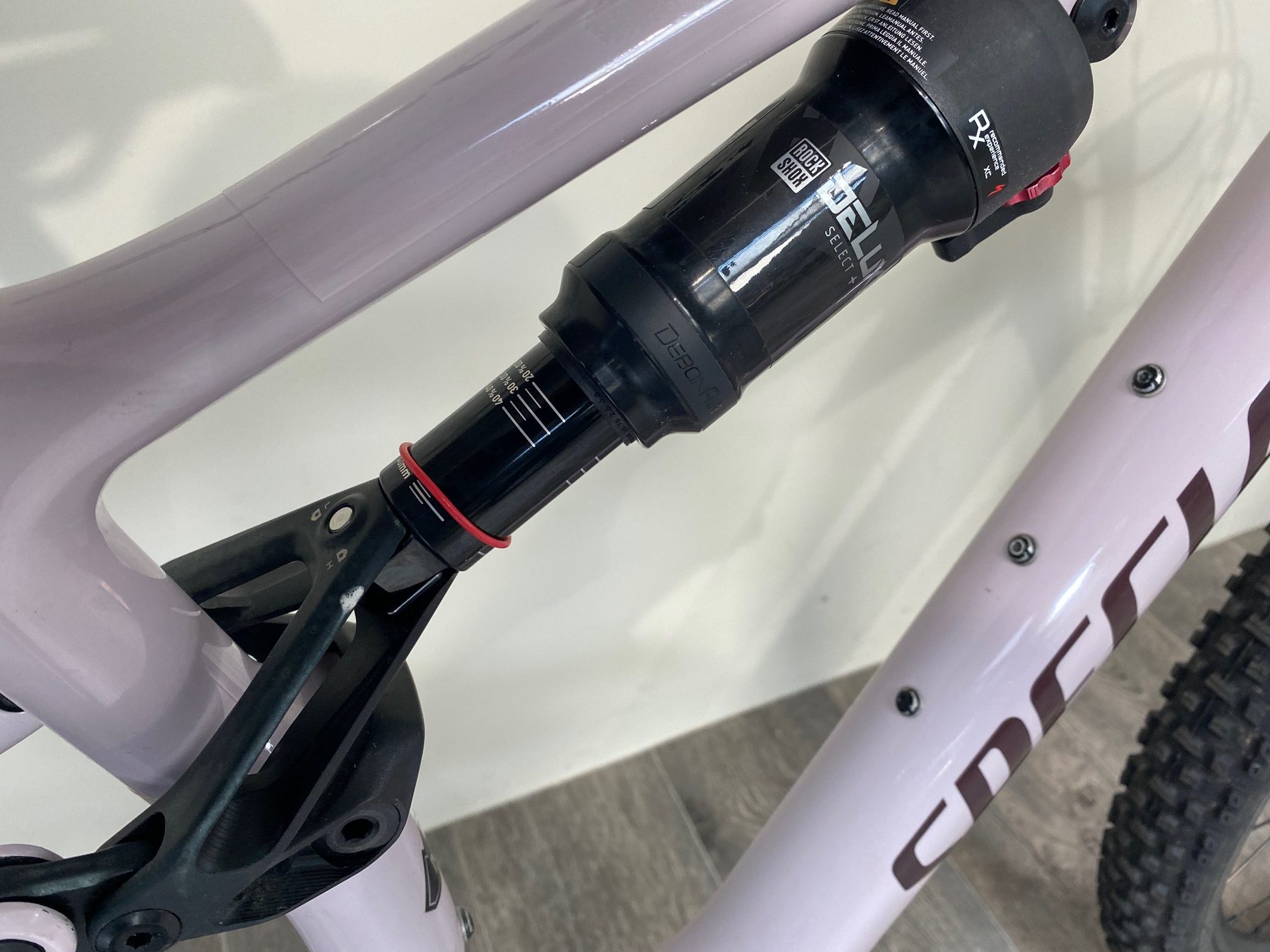

Rear Shock
RockShox Deluxe Select+, Rx XC Tune, 2-position, rebound adjust, metric, 190x40mm

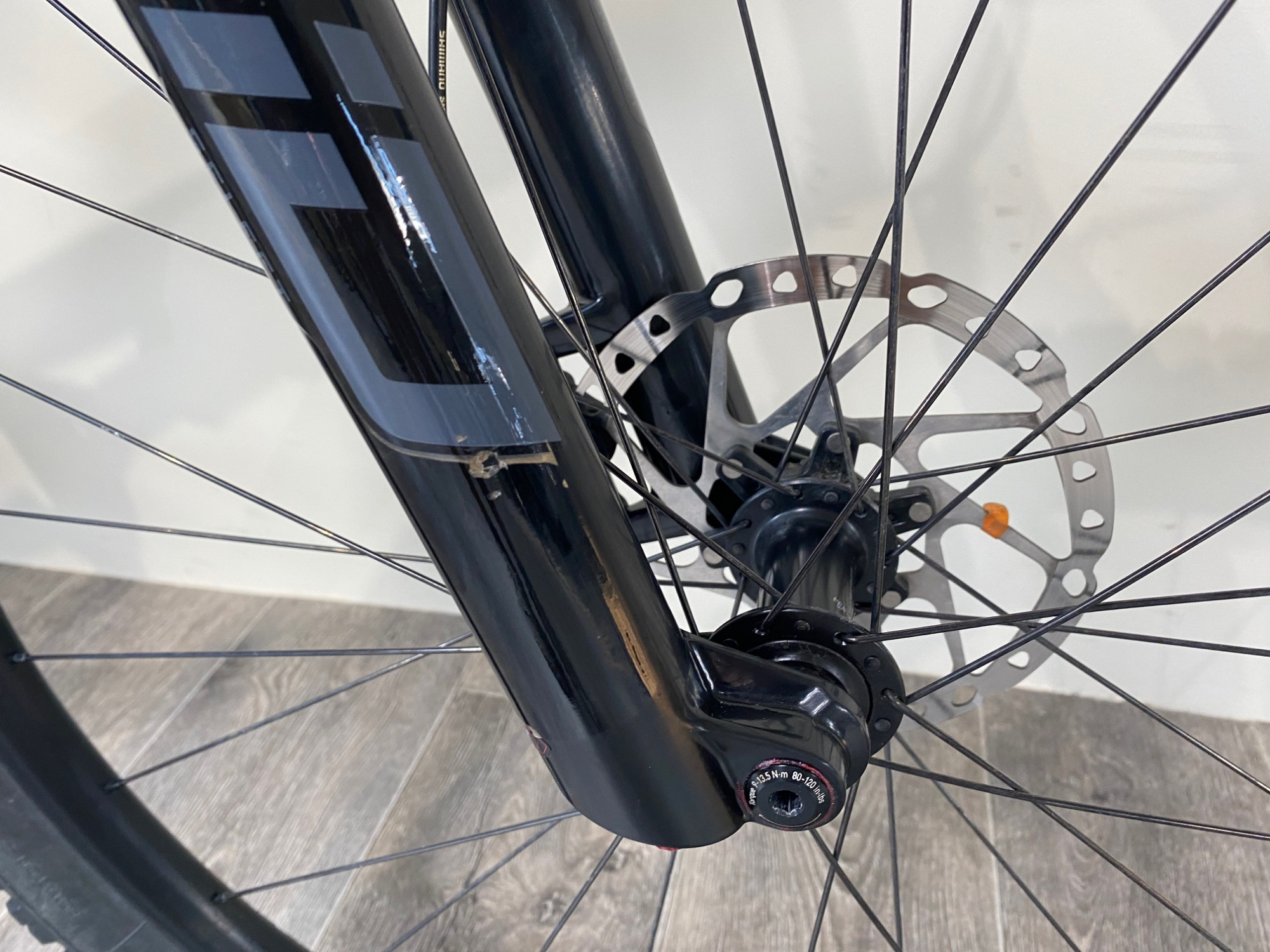

Fork
RockShox SID Select+, Charger RL Damper, DebonAir, 15x110mm, 44mm offset
Head Tube Diameter
Tapered
Headset
Cane Creek, CAA2016, 41.8/28.6/flat IS52/40 with AL Race Seal

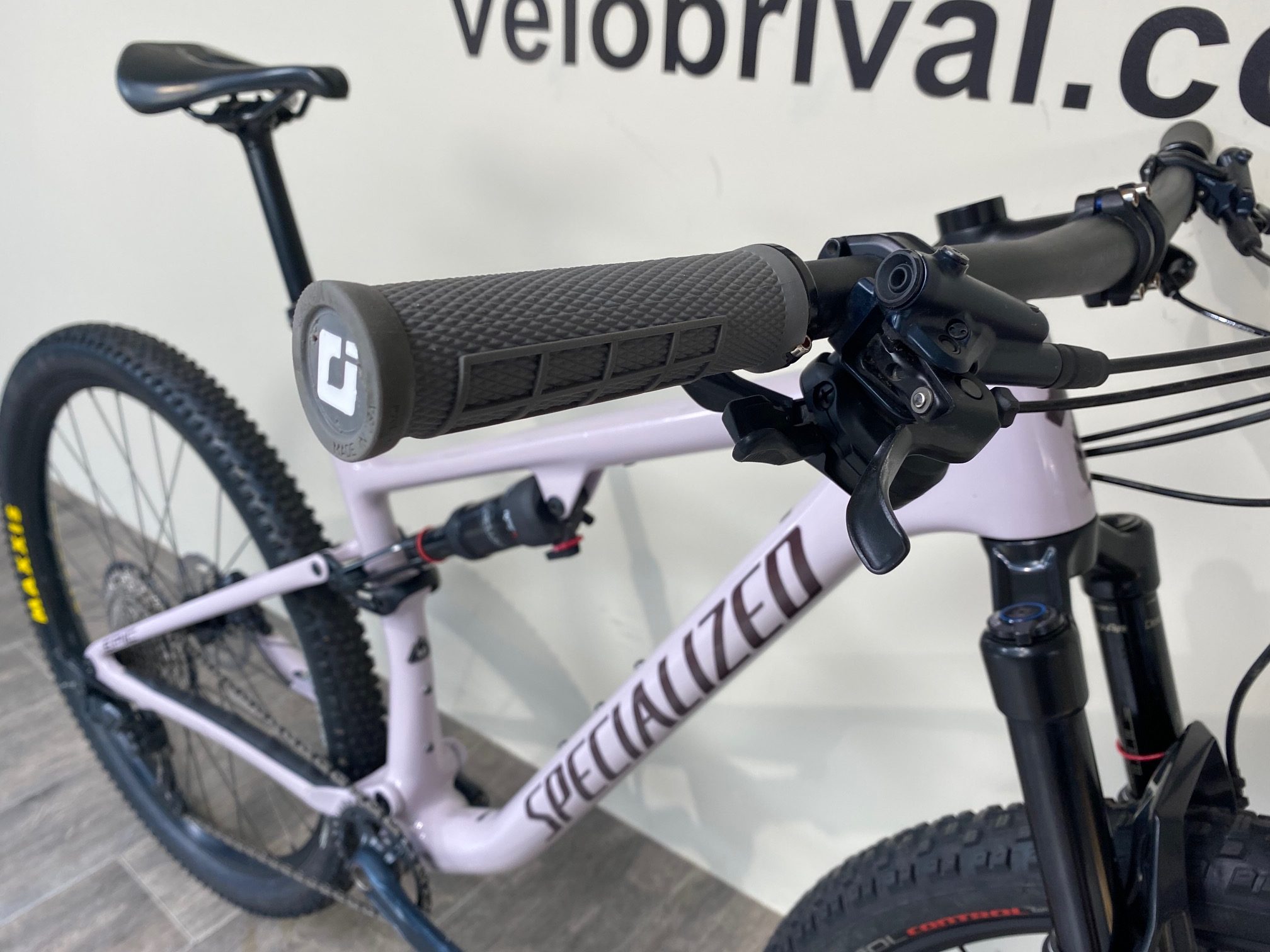

Handlebar

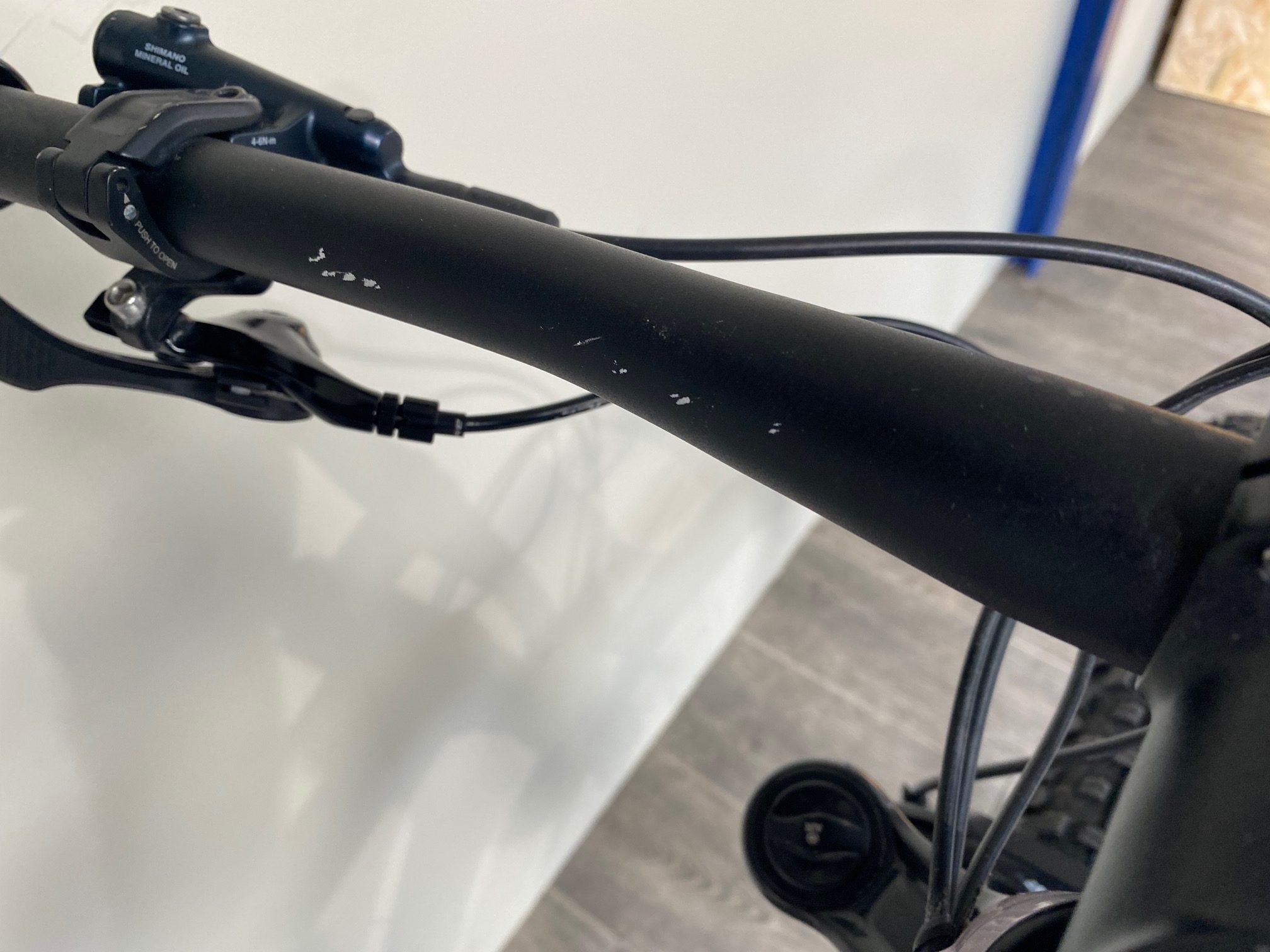

Specialized Alloy Minirise, 10mm rise, 750mm width, 31.8mm clamp
Stem
Specialized XC, 3D-forged alloy, 4-bolt, 6° rise, 60mm length

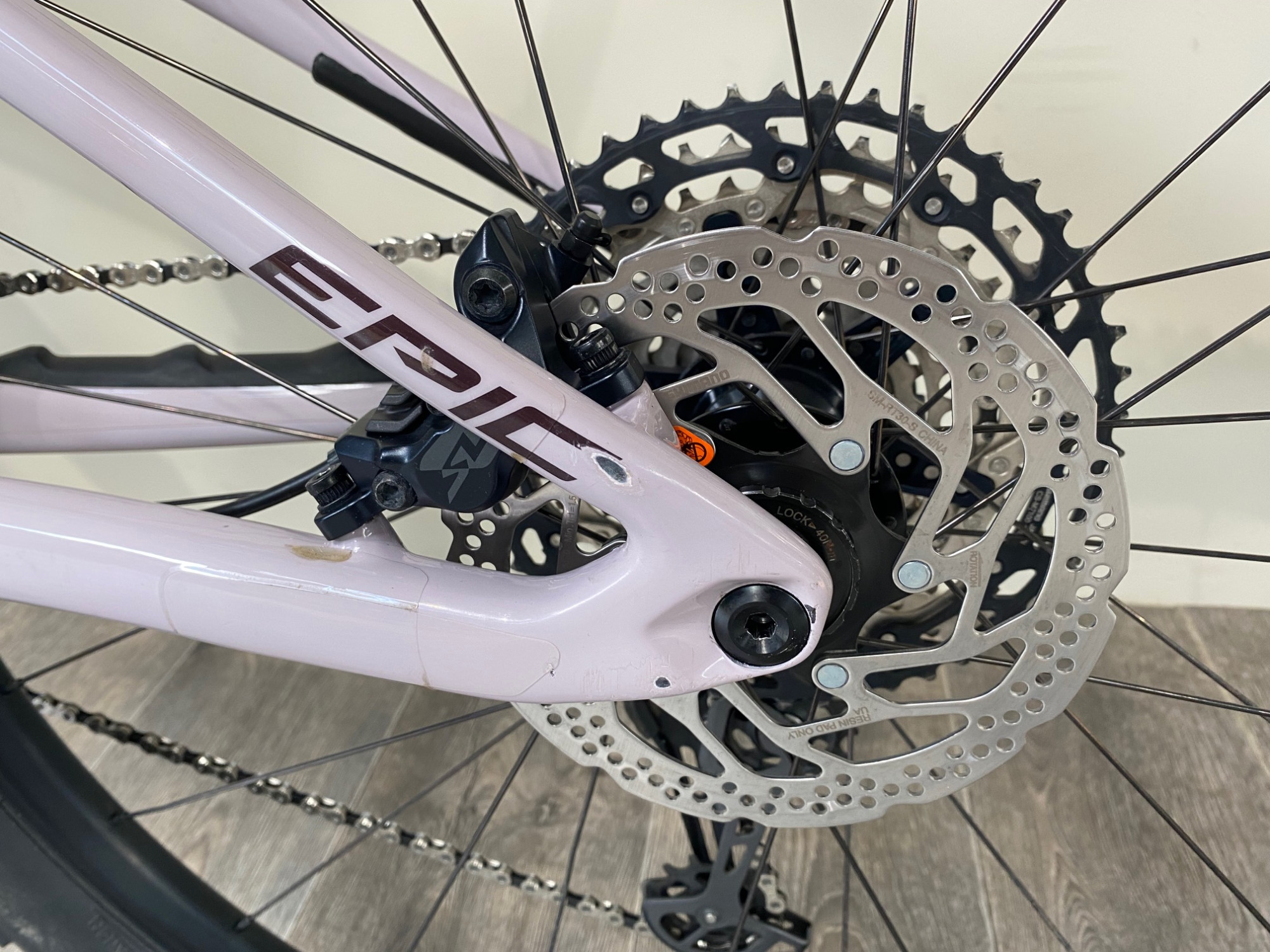

Brakes
Shimano SLX M7120, 4-piston caliper
Brake Levers
Shimano SLX M7120
Shifters
Shimano SLX M7100, 12-speed

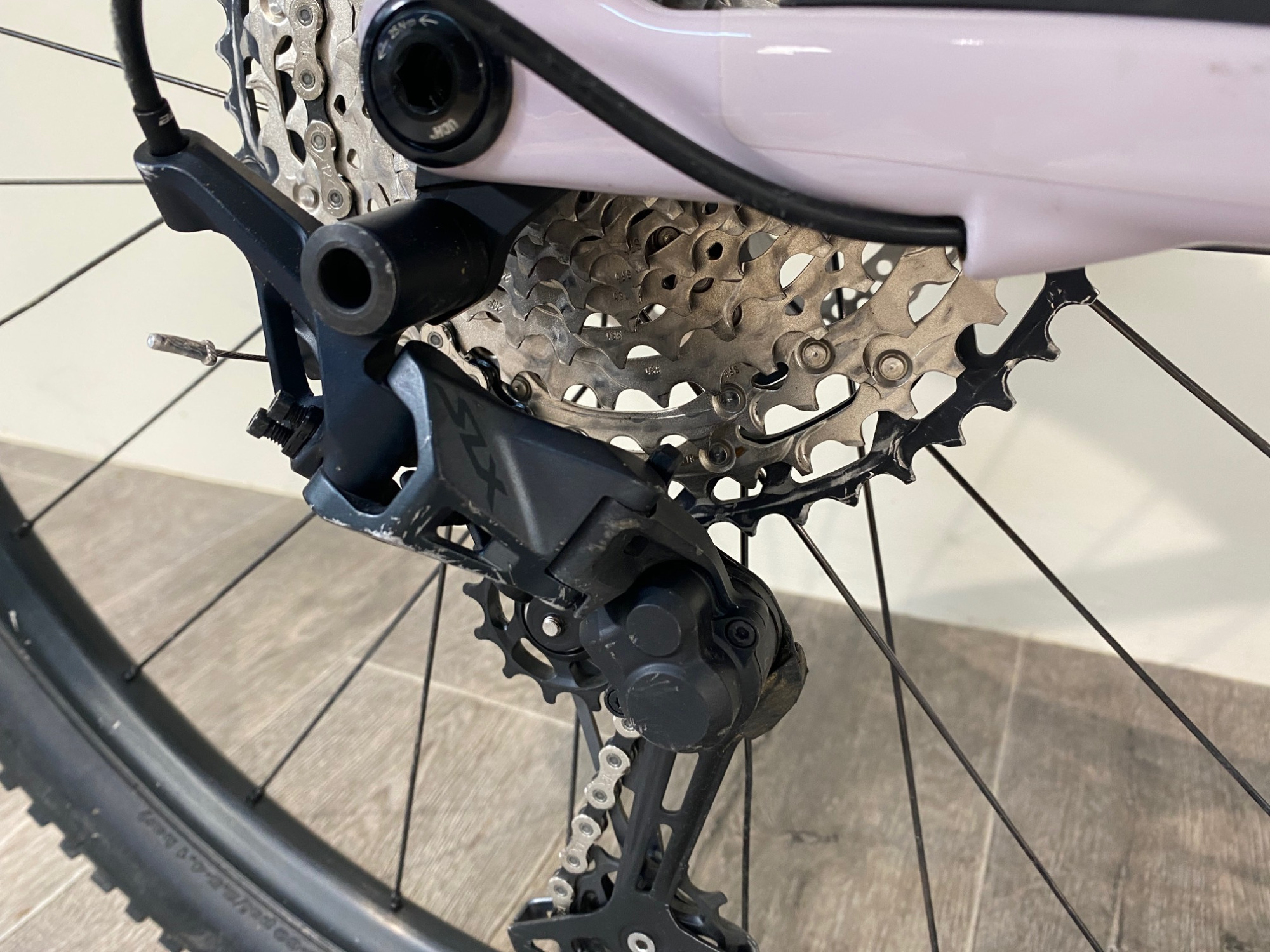

Rear Derailleur

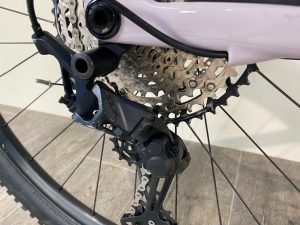

Shimano SLX M7100, SGS, 12-speed

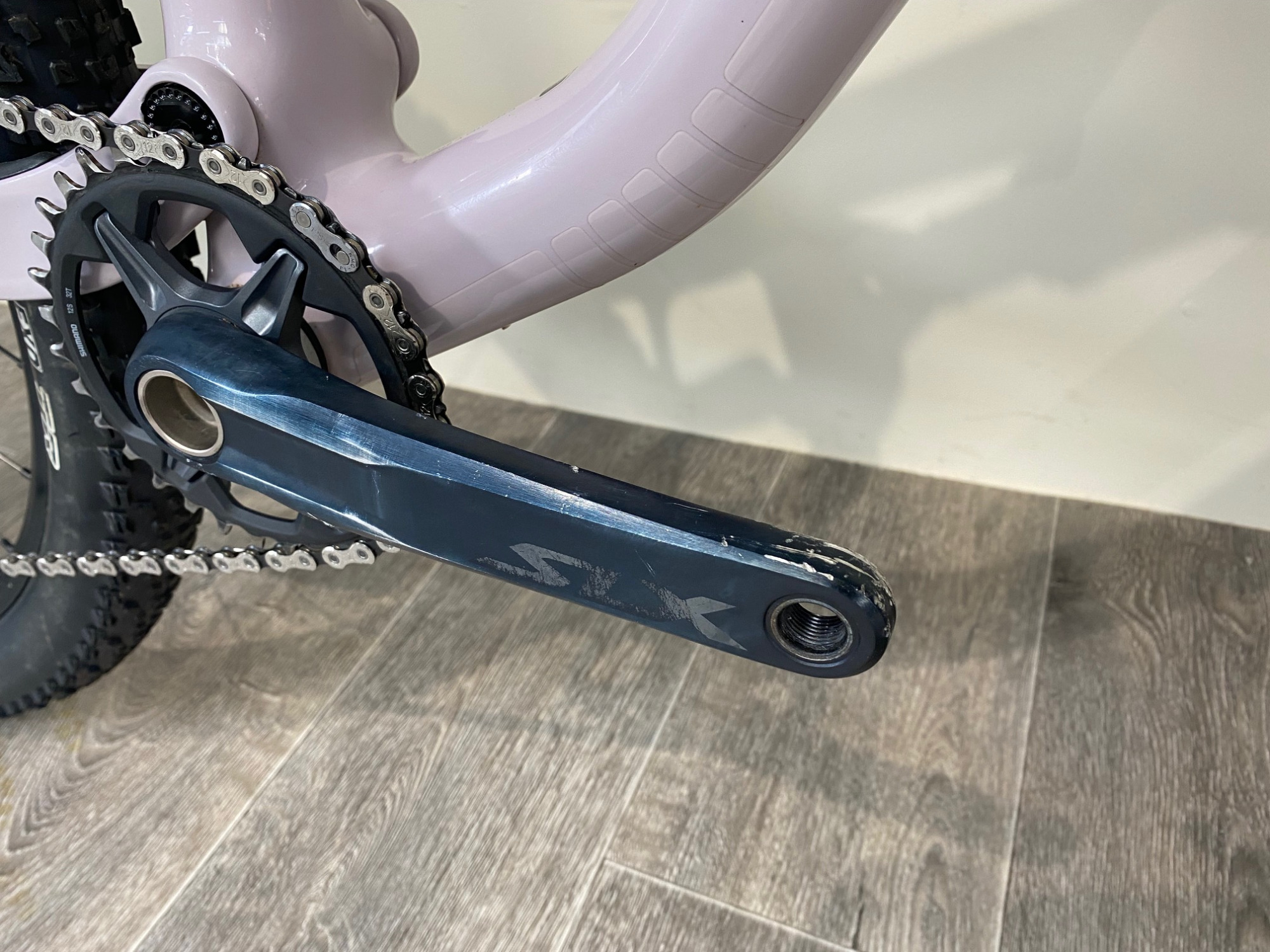

Cranks

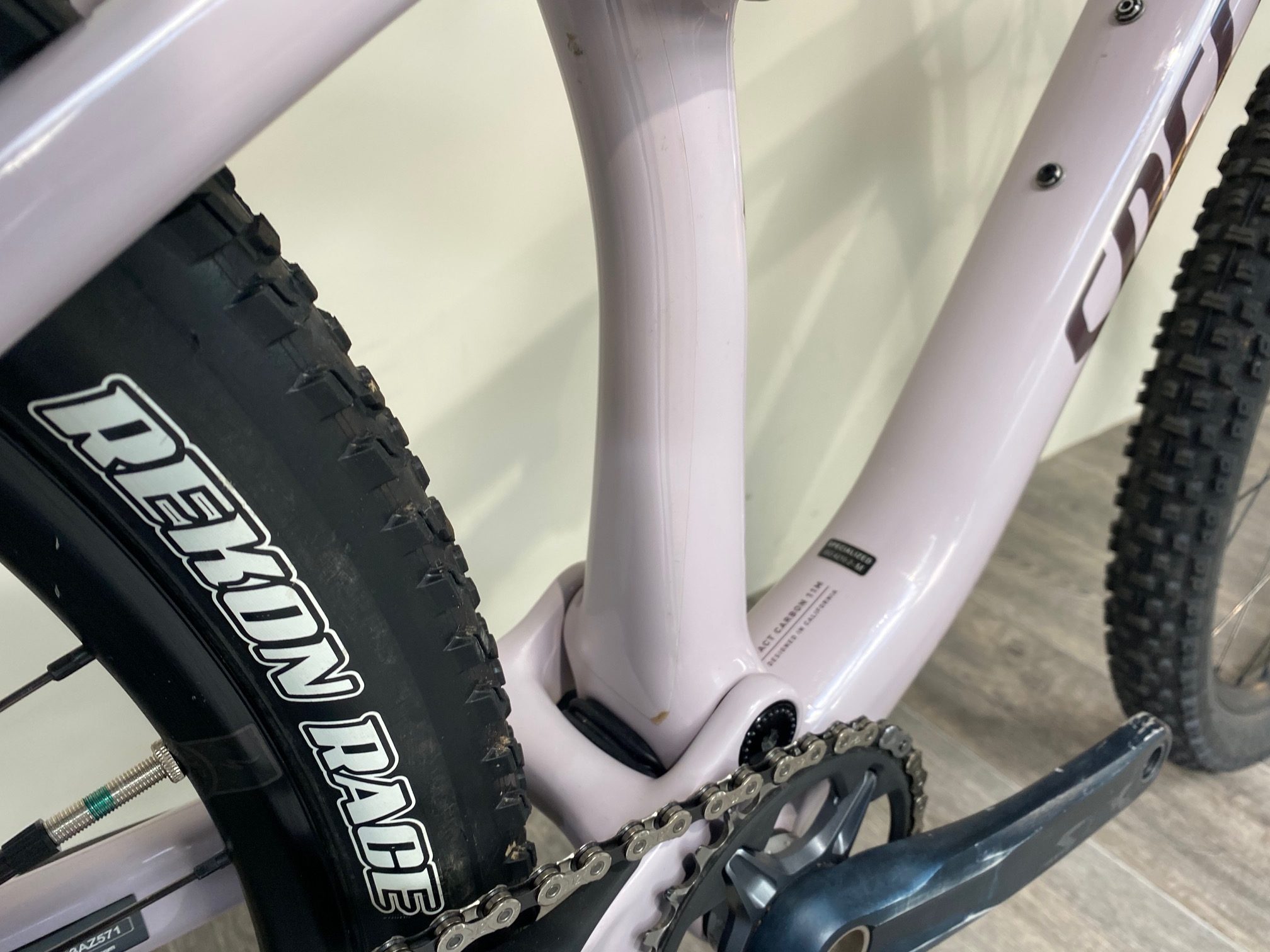

Shimano SLX 7100, Hollowtech 2, 170mm length (size S), 175mm length (size M-XL)
Bottom Bracket
Shimano, BB52, threaded
Chain

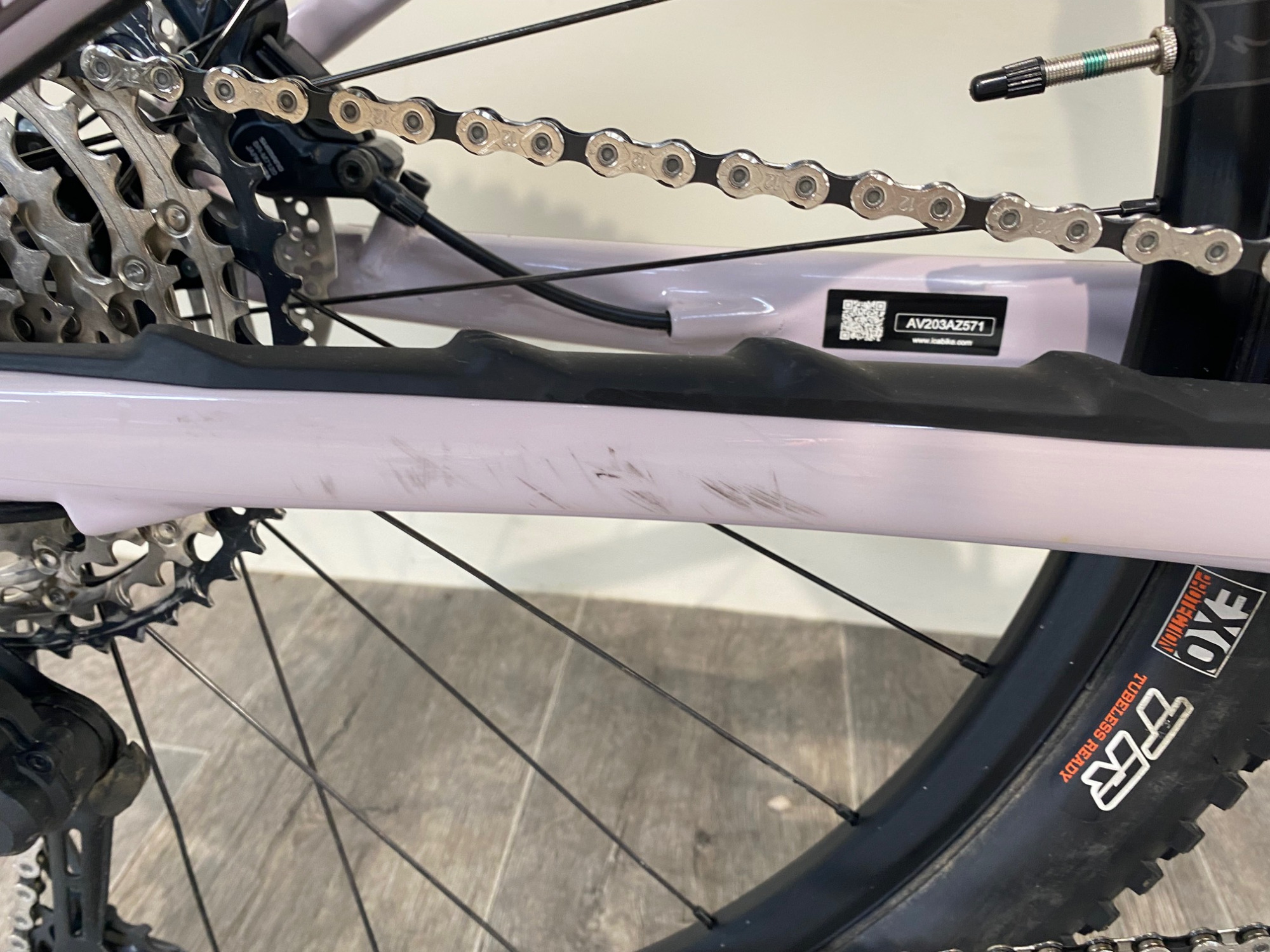

Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Rims
Specialized Alloy, tubeless-ready, 25mm internal width, 28 hole
Hubs
Front: Shimano MT400-B, Centerlock, 28 hole, 15×110 Boost
Rear: Shimano MT510-B, Centerlock 28 hole, 12×148 Boost, Microspline
Tires
Front: Specialized Ground Control, Control casing, GRIPTON compound, 60 TPI, 2Bliss Ready, 29″x2.3″
Rear: Specialized Fast Trak, Control casing, GRIPTON compound, 60 TPI, 2Bliss Ready, 29″x2.3″
Presta, 60mm valve inner tubes
Saddle
Specialized Body Geometry Power Sport, hollow Cr-Mo rails, 155mm width (size S), 143mm width (size M-XL)

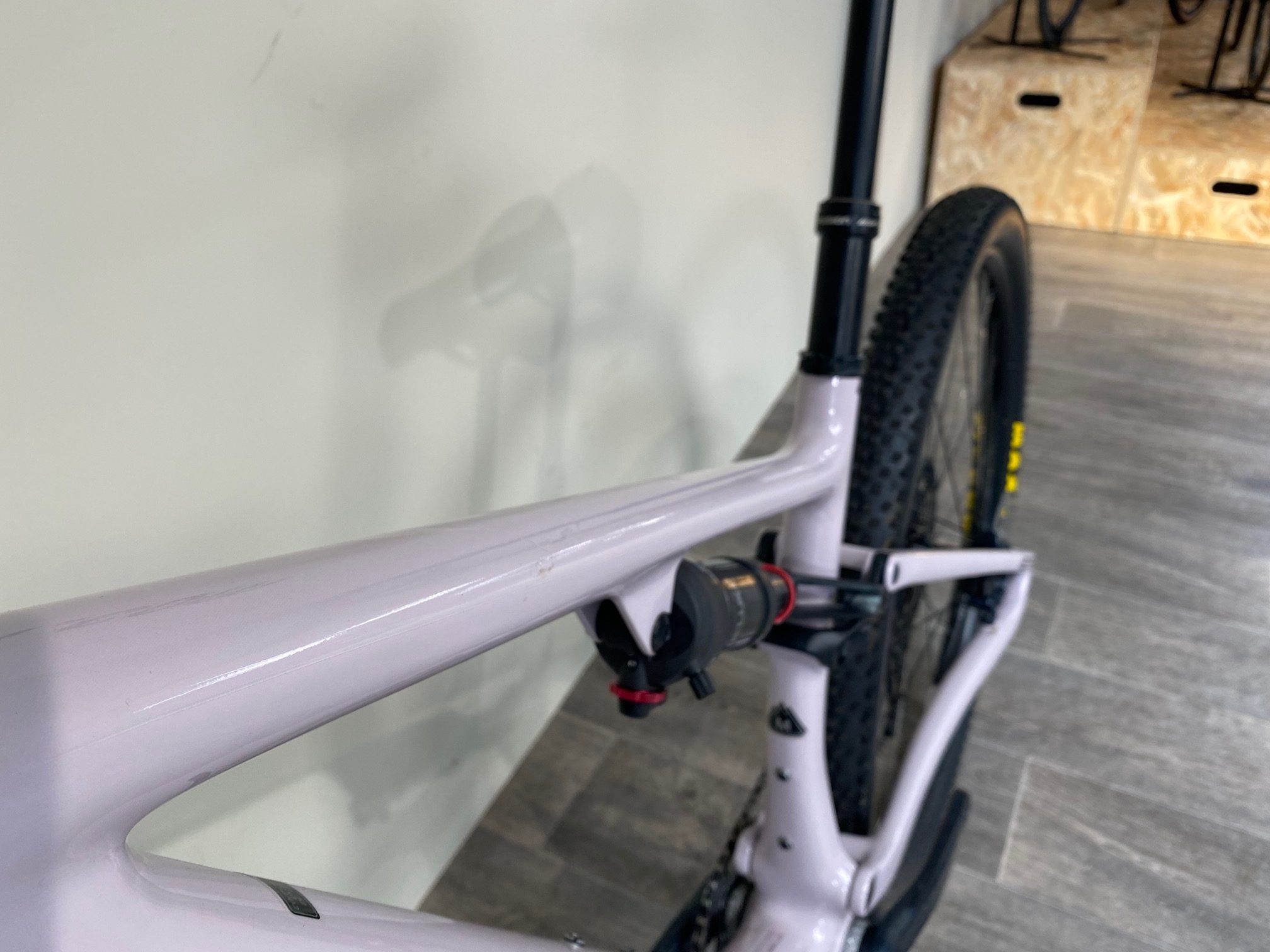

Seatpost
X-Fusion Manic, infinite adjustable, 2-bolt head, bottom mount cable routing, remote SRL LE lever, 100mm travel (size S), 125mm travel (size M), 150mm travel (size L-XL)
Seatpost Clamp
Specialized alloy, 34.9mm
Rear Dropout / Hub Dimensions
12x148mm
Bottle Cage Mounts
Yes – 2 inside front triangle
