Cadre et plus
Taille:
XS,S,M,L,XL
Max loadable weight (KG):
120 kg
Front Fork Type:
Suspension
Suspension Type:
Fully
Travel Front:
180 mm

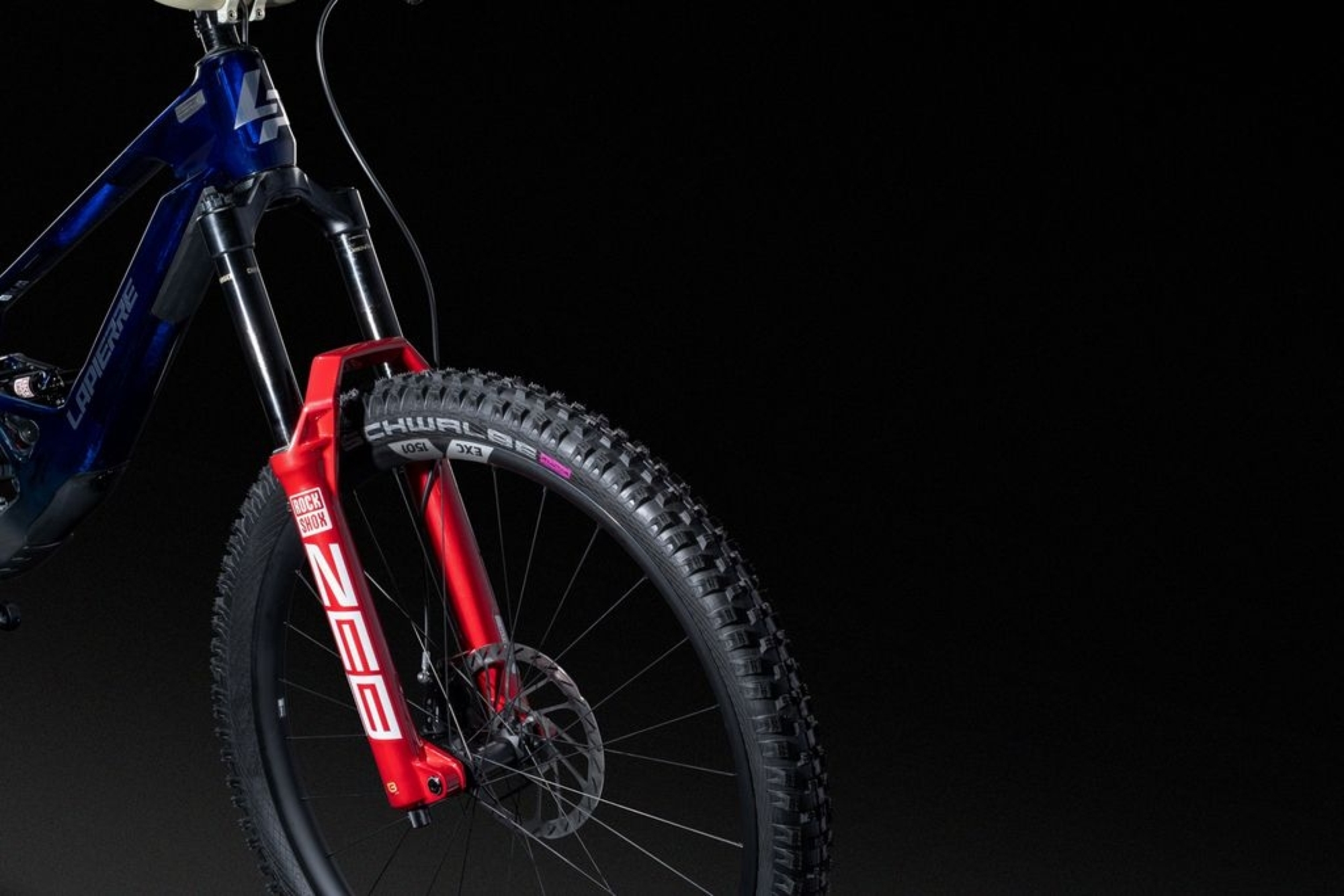

Fourche:
Rockshox, ZEB Ultimate Charger 3.1 RC2 15×110 29″ 180 mm
Cadre:
Carbon UD SLI, Carbone, Homme

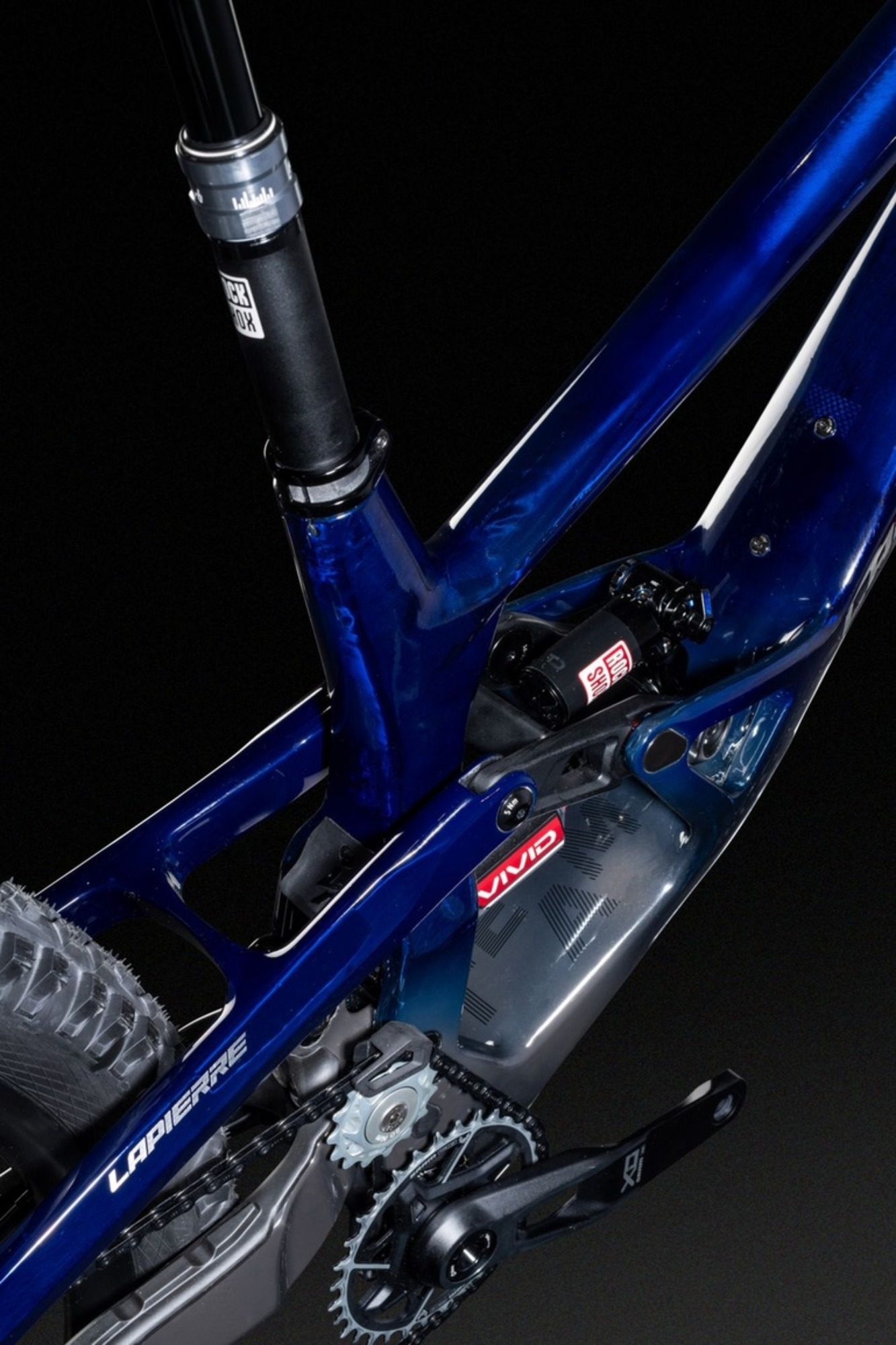

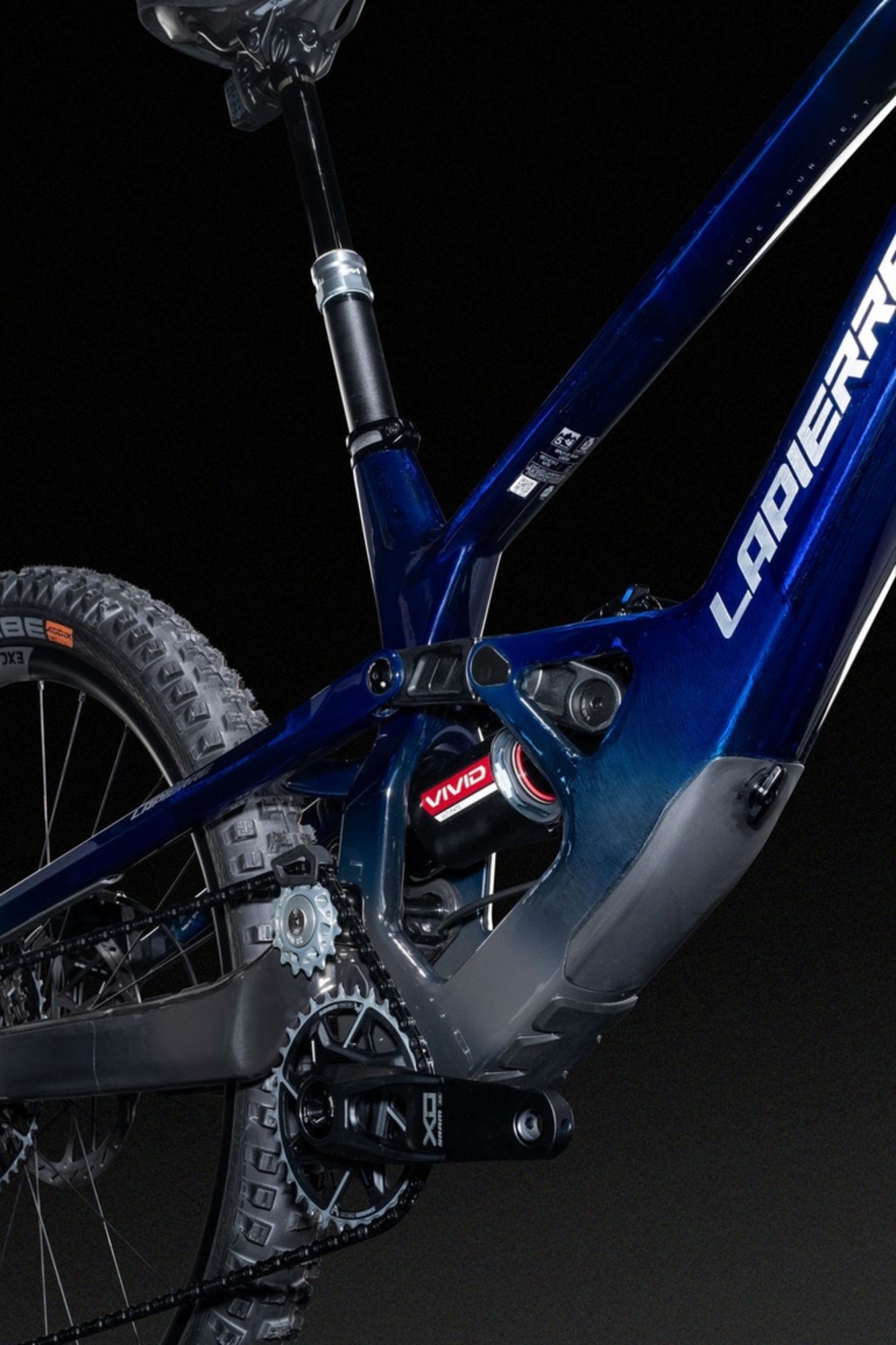

Amortisseur:
Rockshox, Vivid Air Ultimate 205x65mm Trunnion/15x8mm
Cintre et Selle
Handlebar Diameter:
35 mm
Handlebar Material:
Aluminium
Handlebar Rise:
30
Handlebar Width:
800 mm
Seatpost Material:
Aluminium
Seatpost Travel (mm):
125 mm,150 mm,170 mm
Stem Length:
33 mm,40 mm
Poignée:
Lapierre, Anodized, small diameter

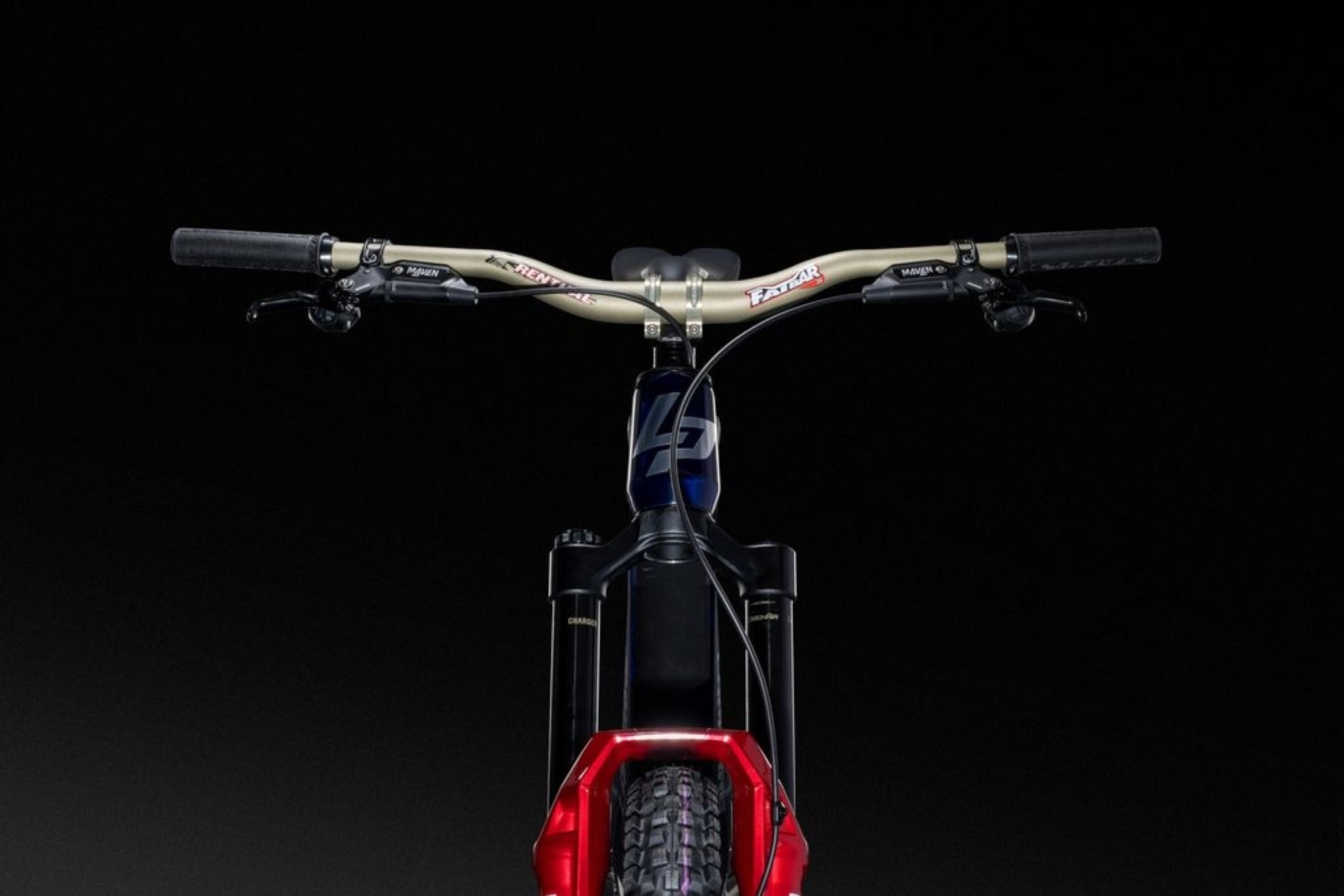

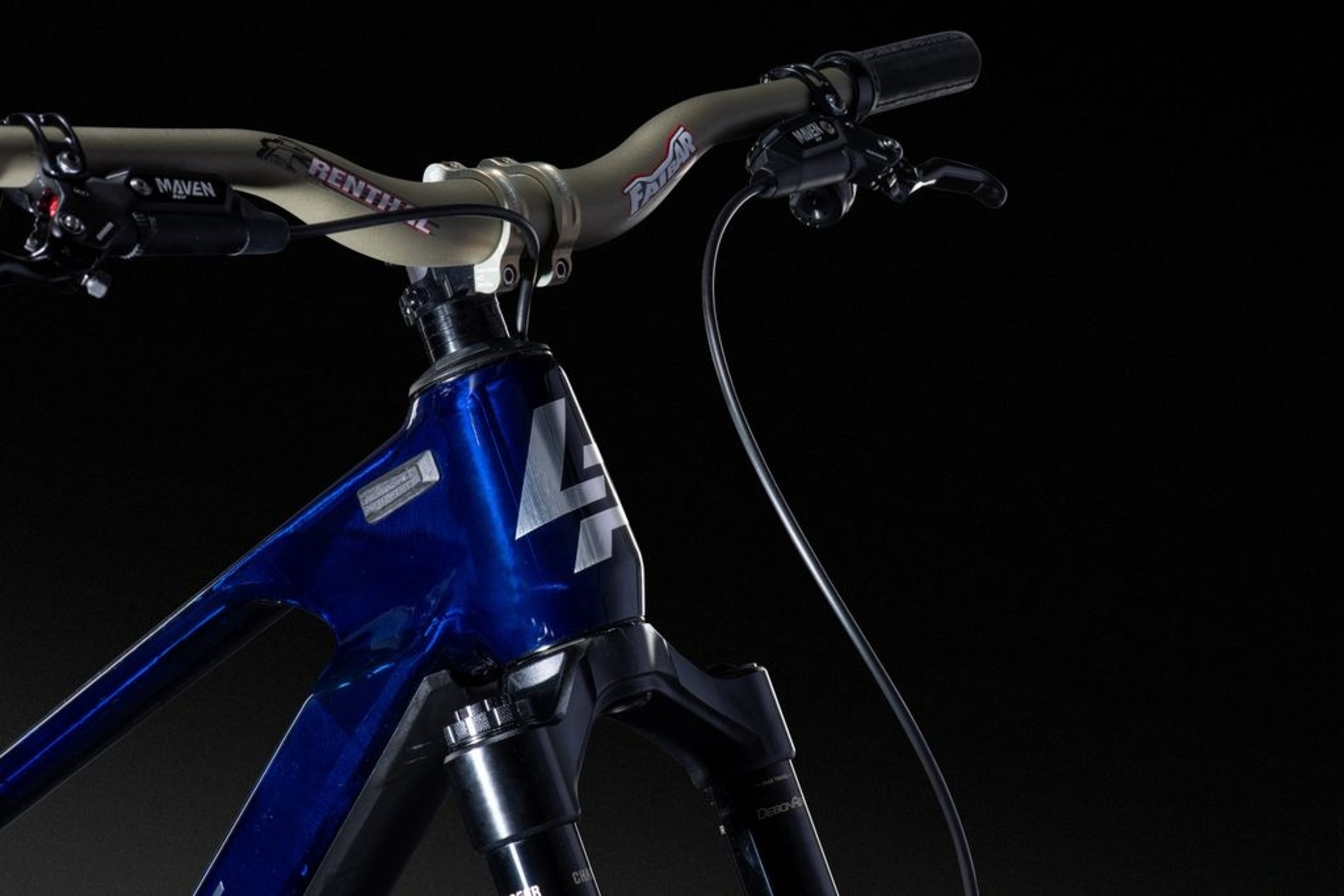

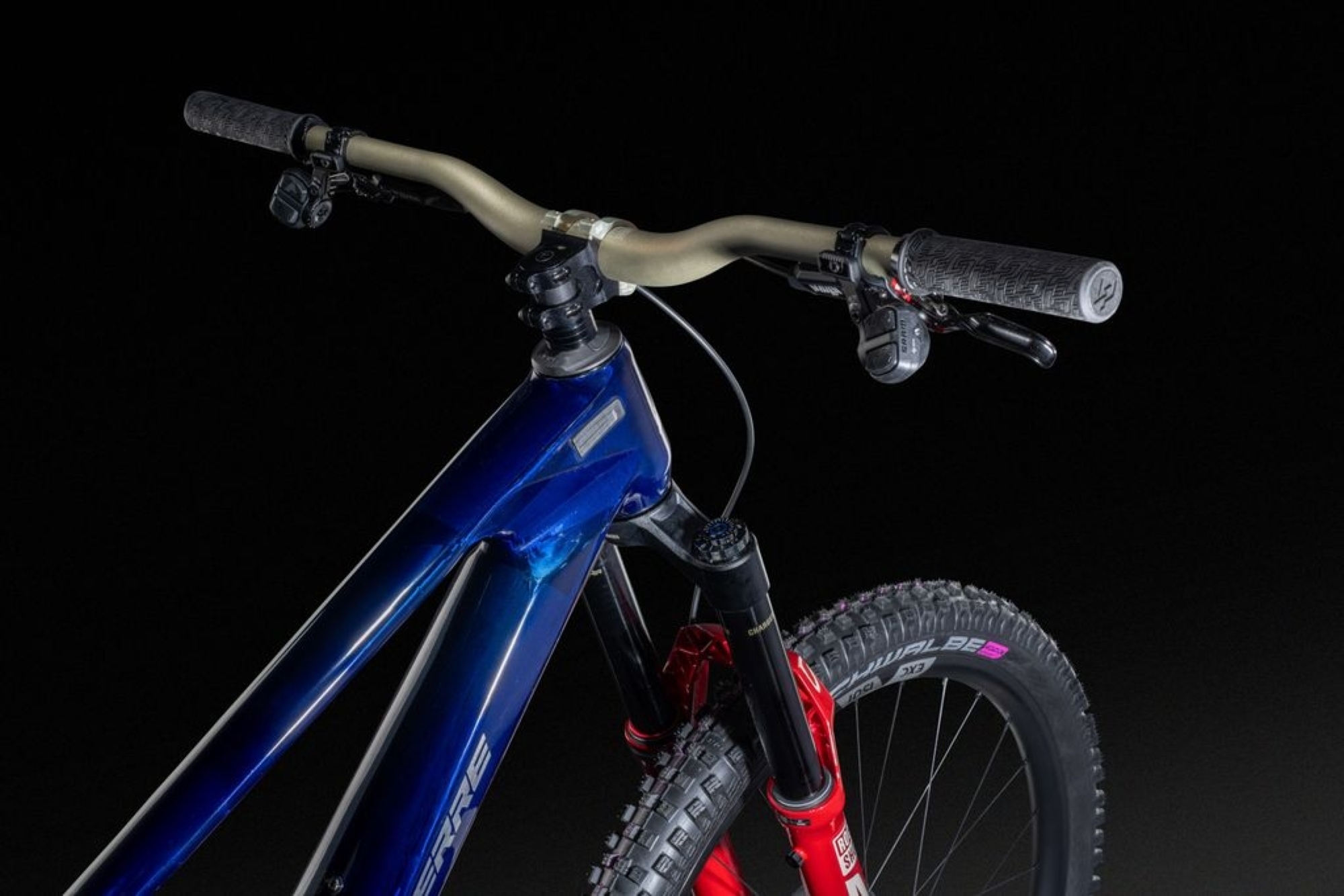

Cintre:
Renthal, Flat bar, Fatbar 35, Rise: 30 mm, Ø: 35 mm
Jeu de direction:
Acros, Integrated, ZS56/ZS56 Block Lock
Selle:
WTB, Volt Cromoly 142 mm

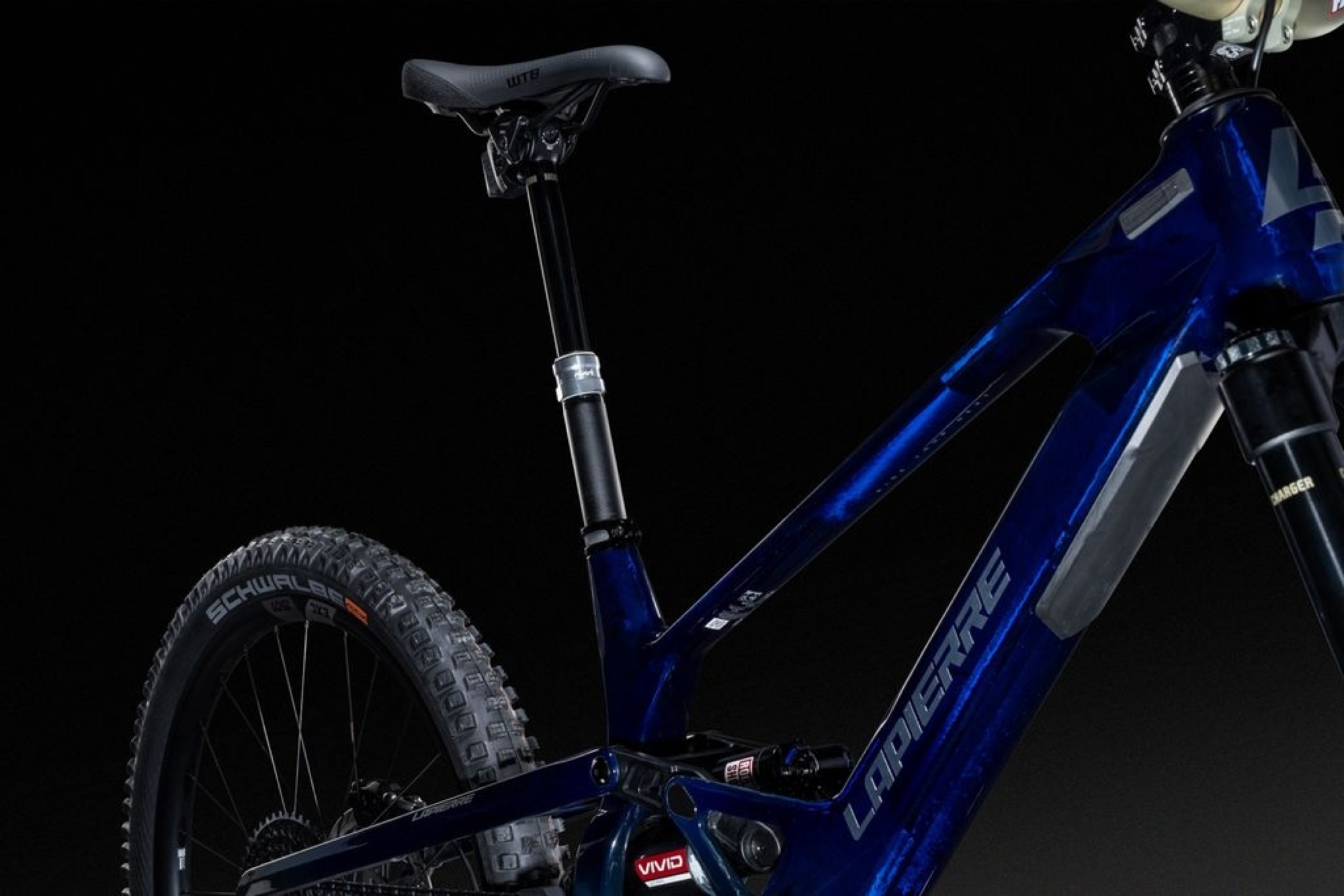

Tige de Selle:
Sram, Dropperpost, Reverb AXS, Ø: 31.6 mm, travel: 125 mm
Potence:
Renthal, Apex, Ø: 35 mm, L: 33 mm
Géométrie
Bottom bracket drop [mm]:
25 mm
Chain stay length [mm]:
440 mm,445 mm,450 mm
Fork offset [mm]:
595 mm
Fork total length [mm]:
44 mm
Head tube angle:
63.5 degrees
Head tube length [mm]:
100 mm,110 mm,115 mm,120 mm,130 mm
Reach [mm]:
410 mm,435 mm,460 mm,480 mm,505 mm
Stack [mm]:
627 mm,636 mm,641 mm,645 mm,654 mm
Seat tube angle:
78 degrees
Seat tube length [mm]:
350 mm,370 mm,400 mm,430 mm,460 mm
Top tube length [mm]:
543.5 mm,570.4 mm,596.4 mm,617.3 mm,644.2 mm
Wheelbase [mm]:
1200 mm,1229 mm,1256 mm,1283 mm,1318 mm
Roues et composants de roues
Wheelset Material:
Carbone
Taille de roue:
27
Pneu:
Schwalbe, MAGIC MARY Evo, Super Trail, TLE, ADDIX Ultra Soft, 62-622
Pneu Arrière:
Schwalbe, BIG BETTY, Super Trail, TLE, ADDIX Soft, 67TPI
Paire de Roues:
DT Swiss, EXC1501 Spline 622x30c, SRAM XD, 6 bolts
Roue Arrière:
DT Swiss, EXC1501 Spline 622x30c, SRAM XD, 6 bolts
Taille de Roue:
29, 27.5
Système de freinage
Brake Rear Mount:
Post Mount
Frein Avant:
Sram, Frein à disque hydraulique, Maven Silver Stealth 4 pistons, 200 mm
Frein Arrière:
Sram, Frein à disque hydraulique, Maven Silver Stealth 4 pistons, 200 mm
Levier de frein:
Sram, Maven Silver Stealth-BL
Disques de frein:
Sram, HS2 200 mm, 6 bolt Disc

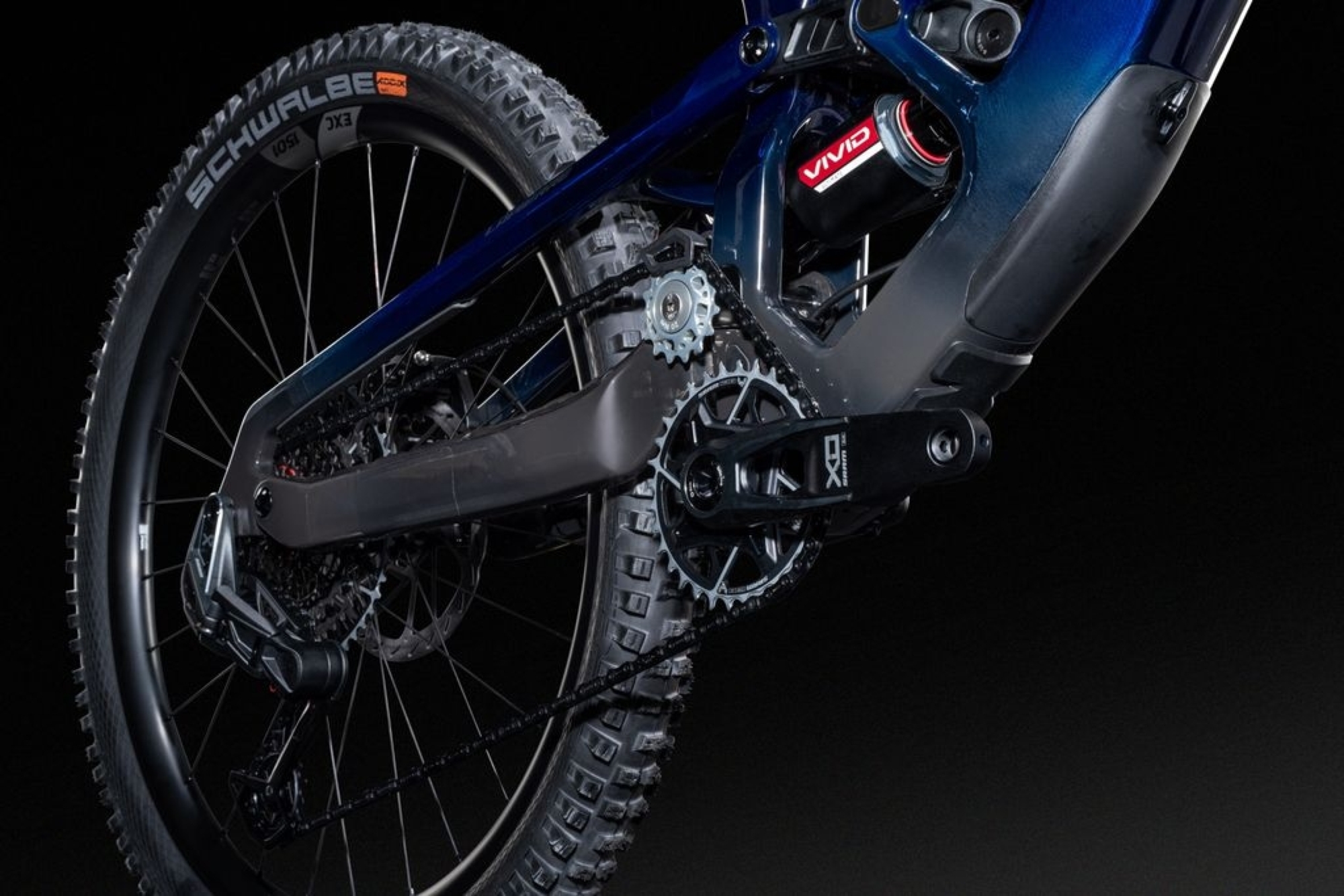

Transmission
Cassette Teeth:
10-52T
Crankset Teeth:
32T
Crankset Type:
single
Number Of Gears:
12
Boitier de pédalier:
Sram, BSA, DUB 73 MTB Wide
Cassette:
Sram, Cassette, XS-1295 T-TYPE, 12s, XD
Chaîne:
Sram, Chaîne, X0 T-TYPE 12s
Pédalier:
Sram, X0 EAGLE T-TYPE DUB

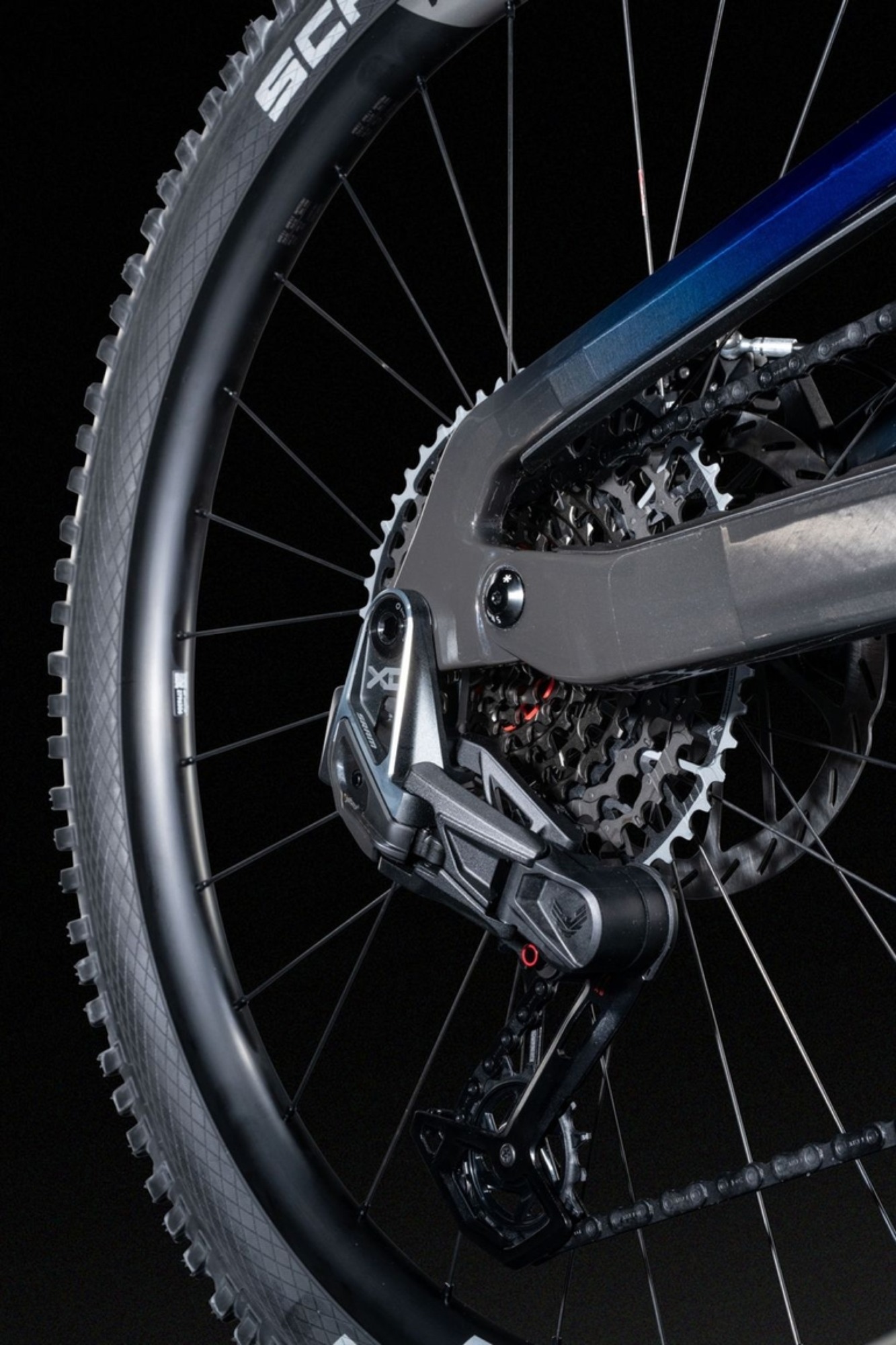

Dérailleur Arrière:
Sram, X0 EAGLE AXS T-TYPE 12s
Vitesse:
Sram, Derailleur
Pédales:
XLC, by VP
Selecteur de vitesse Gauche:
Sram, Triggershift, AXS Pod 12s
Selecteur de vitesse Droit:
Sram, Triggershift, AXS Pod Controller 12s
LSDTA
