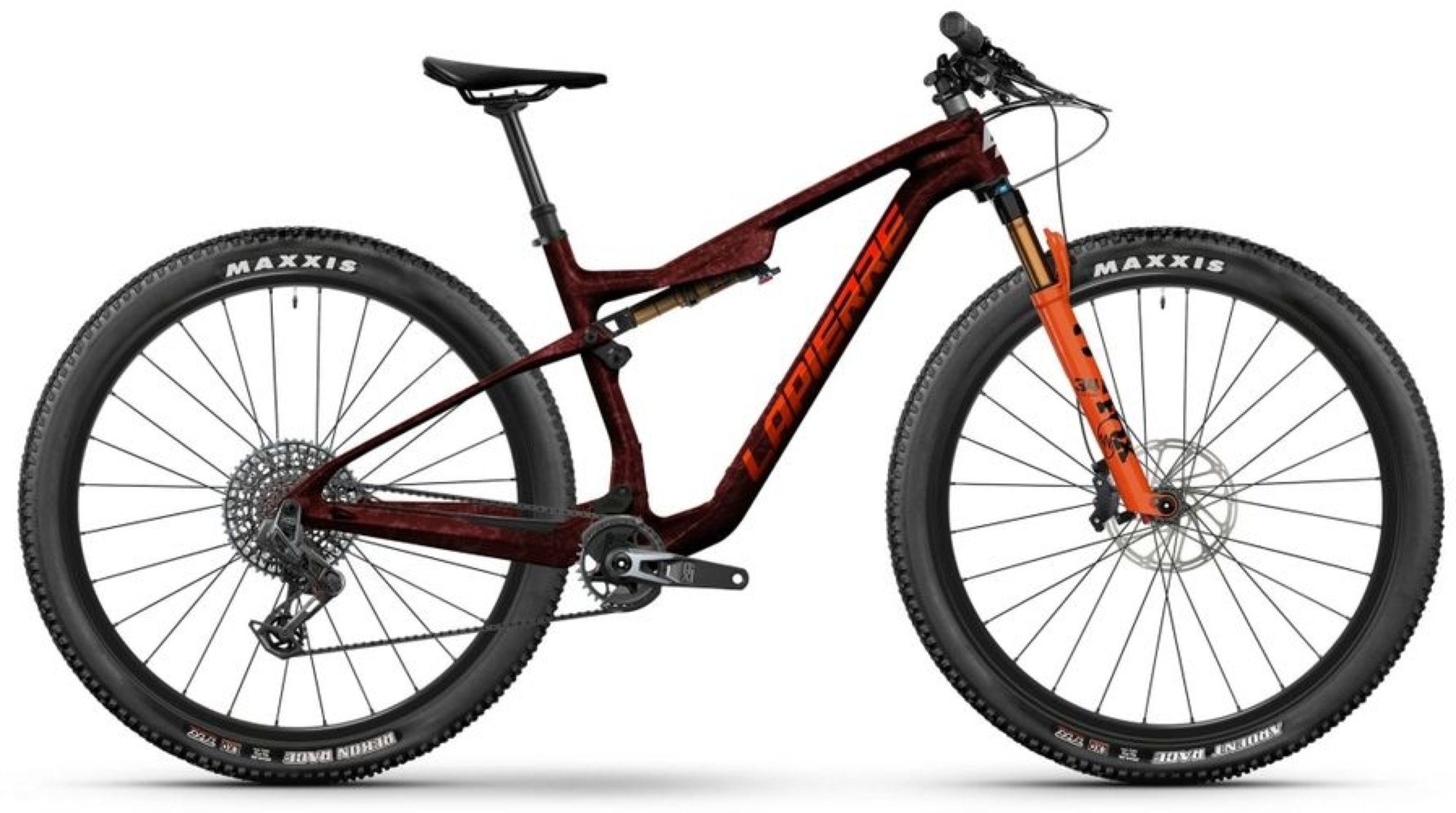

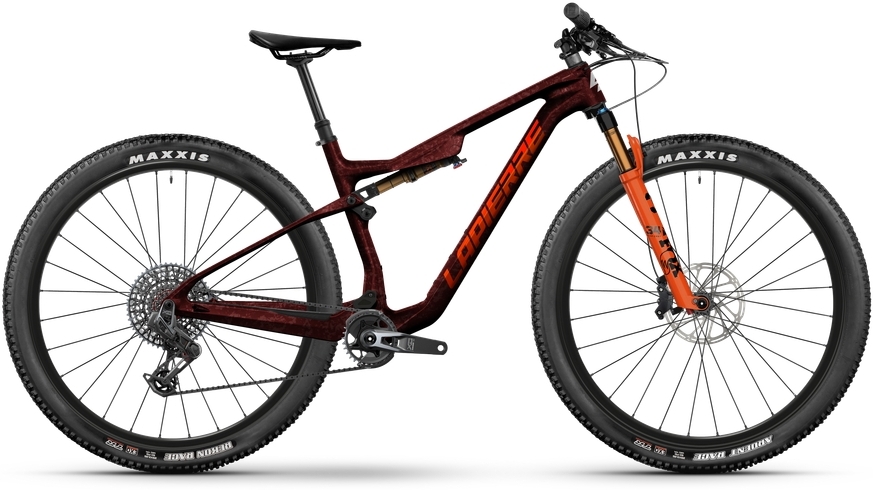

Lapierre XRM 10.9 2025

Cadre et plus
Taille:
S,M,L,XL
Max loadable weight (KG):
120 kg
Front Fork Type:
Suspension
Suspension Type:
Fully
Travel Front:
120 mm
Fourche:
FOX Factory, 34 Float SC Factory GRIP SL Remote 2Pos 15×110 120 mm
Cadre:
Carbon UD SLI Team, Carbone, Homme
Amortisseur:
FOX Factory, Float Factory Remote 2pos 210x55mm 25x8mm/15x8mm
Cintre et Selle
Handlebar Diameter:
35 mm
Handlebar Material:
Carbone
Handlebar Rise:
10
Handlebar Width:
740 mm
Seatpost Material:
Aluminium
Seatpost Travel (mm):
100 mm
Stem Length:
60 mm,70 mm
Poignée:
Lapierre, grips small diameter
Cintre:
Race Face, Flat bar, NEXT SL, Rise: 10 mm, Ø: 35 mm
Jeu de direction:
Fsa, Integrated, Integrated 1.5ZS IS-2 /42/ACB hidden set
Selle:
Fizik, Argo Vento X 140 mm
Tige de Selle:
JD, Dropperpost, YSI16, Ø: 31.6 mm, L: 400 mm, travel: 100 mm, 400 mm
Potence:
Race Face, TURBINE R, 0°, Ø: 35 mm, L: 60 mm
Géométrie
Bottom bracket drop [mm]:
40 mm
Chain stay length [mm]:
435 mm
Fork offset [mm]:
531 mm
Fork total length [mm]:
44 mm
Head tube angle:
66 degrees
Head tube length [mm]:
85 mm,90 mm,100 mm,110 mm
Reach [mm]:
415 mm,440 mm,460 mm,485 mm
Stack [mm]:
584 mm,589 mm,598 mm,608 mm
Seat tube angle:
74.5 degrees
Seat tube length [mm]:
390 mm,430 mm,470 mm,510 mm
Top tube length [mm]:
575 mm,602 mm,624 mm,651 mm
Wheelbase [mm]:
1134 mm,1162 mm,1185 mm,1214 mm
Roues et composants de roues
Wheelset Material:
Carbone
Taille de roue:
29
Pneu:
Maxxis, Ardent Race 3C MaxxSpeed EXO TR 2.35 120 TPI
Pneu Arrière:
Maxxis, Rekon Race 3C MaxxTerra EXO TR 2.35 120 TPI
Paire de Roues:
Lapierre, XC SL carbon
Roue Arrière:
Lapierre, XC SL carbon
Taille de Roue:
29, 29
Système de freinage
Brake Rear Mount:
Post Mount
Frein Avant:
Sram, Frein à disque hydraulique, LEVEL Silver Stealth 2 pistons, 180 mm
Frein Arrière:
Sram, Frein à disque hydraulique, LEVEL Silver Stealth 2 pistons, 160 mm
Levier de frein:
Sram, Level Silver Stealth-BL
Disques de frein:
Sram, Centerline X 180 / 160 mm, 6 bolt Disc
Transmission
Cassette Teeth:
10-52T
Crankset Teeth:
34T
Crankset Type:
single
Number Of Gears:
12
Boitier de pédalier:
Sram, PressFit, DUB PF 92 MTB Wide
Cassette:
Sram, Cassette, XS-1275 T-TYPE, 12s, XD
Chaîne:
Sram, Chaîne, X0 T-TYPE 12s
Guide chaîne:
Lapierre, 1x
Pédalier:
Sram, X0 EAGLE T-TYPE DUB Power Meter
Dérailleur Arrière:
Sram, X0 EAGLE AXS T-TYPE 12s
Vitesse:
Sram, Derailleur
Pédales:
XLC, by VP
Selecteur de vitesse Gauche:
Sram, Triggershift, AXS Pod Ultimate 12s
Selecteur de vitesse Droit:
Sram, Triggershift, AXS Pod Ultimate Controller 12s
