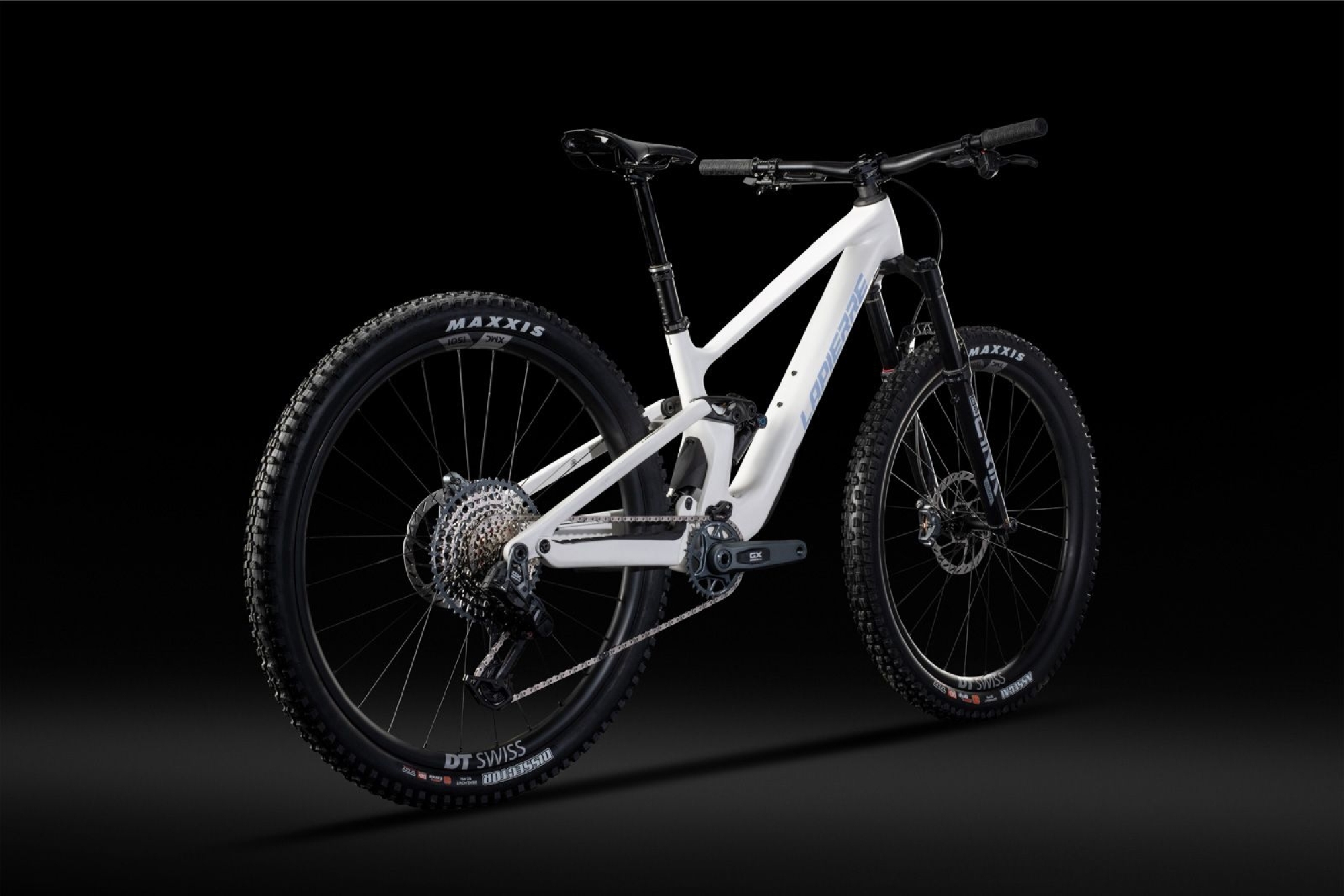

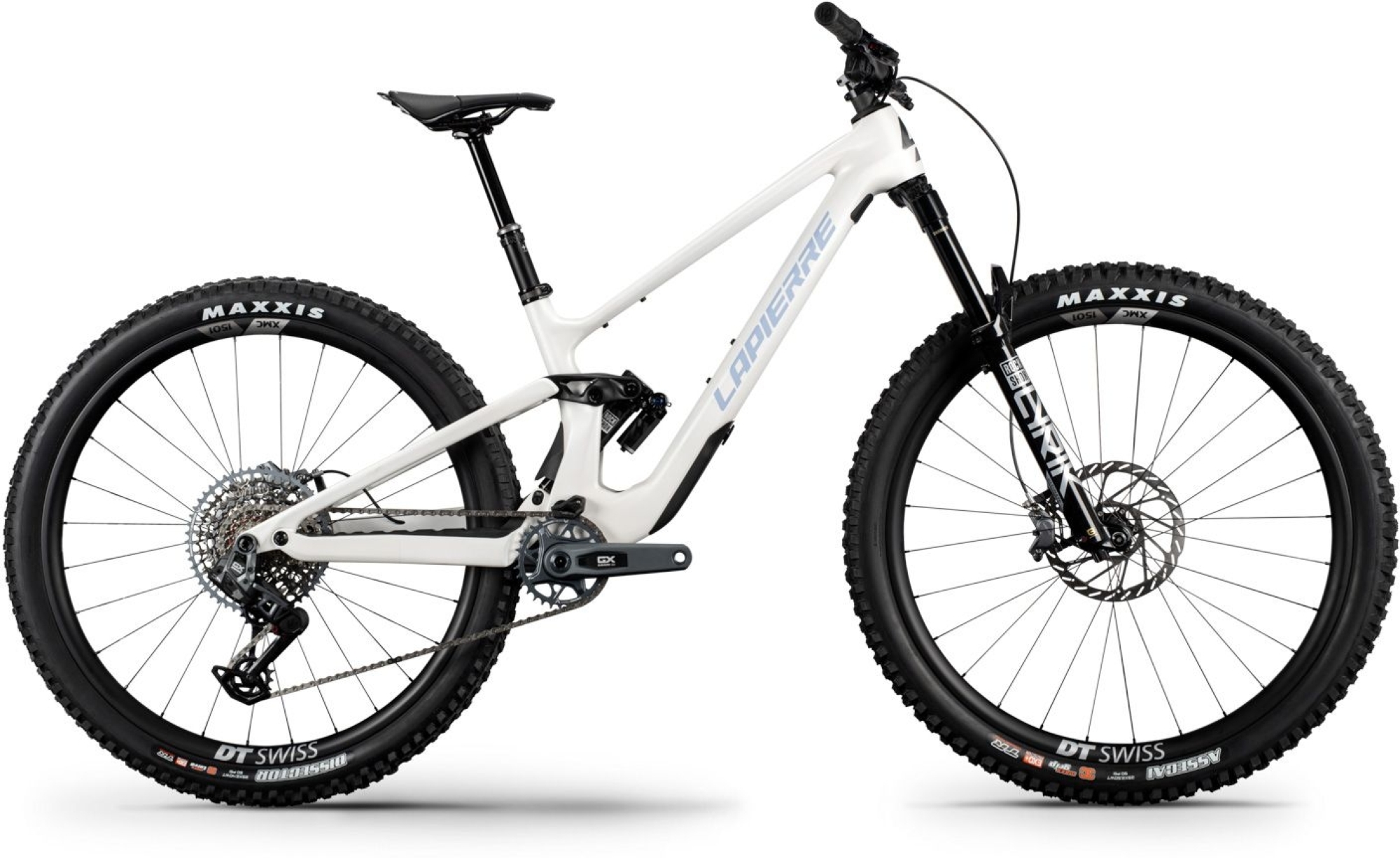

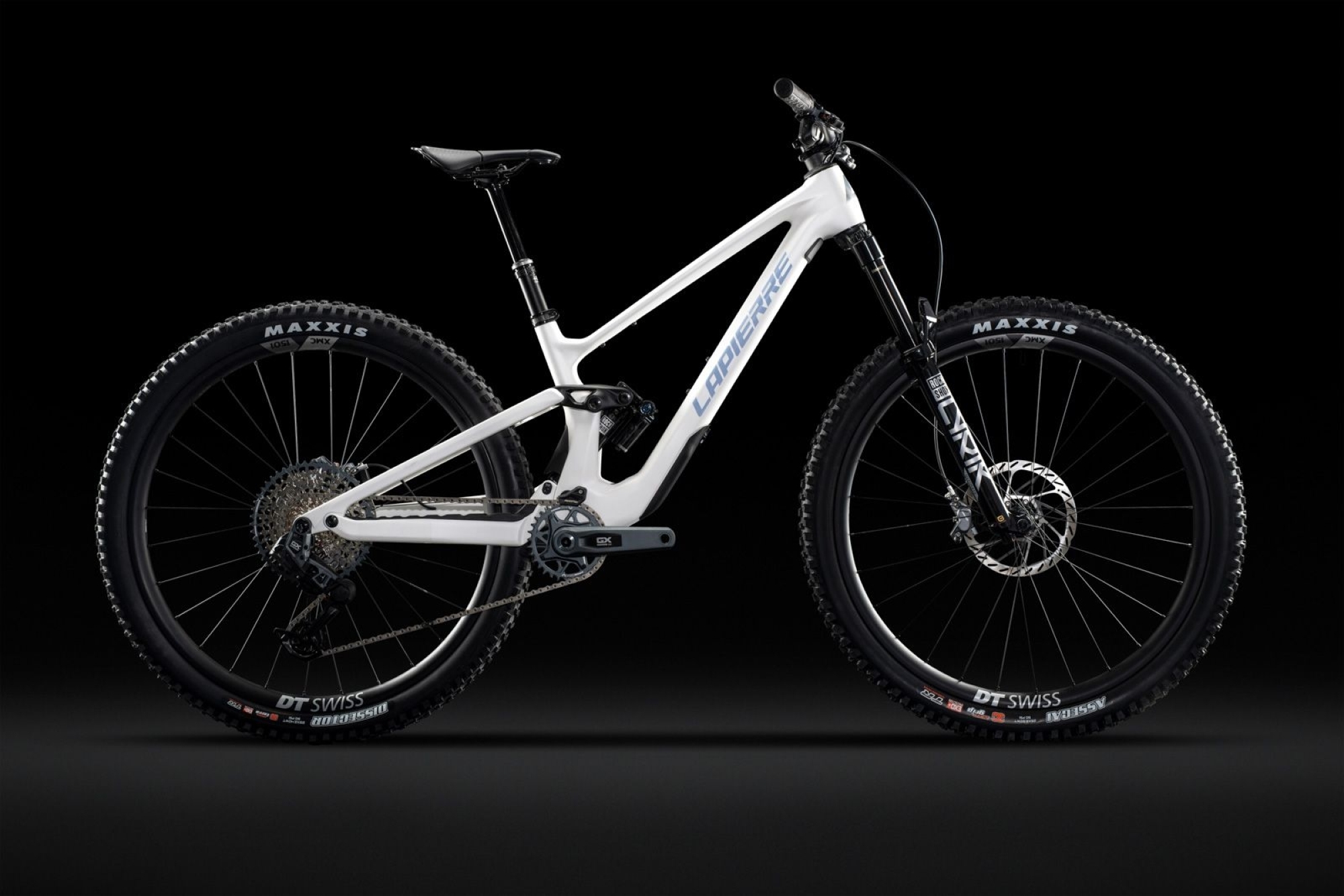

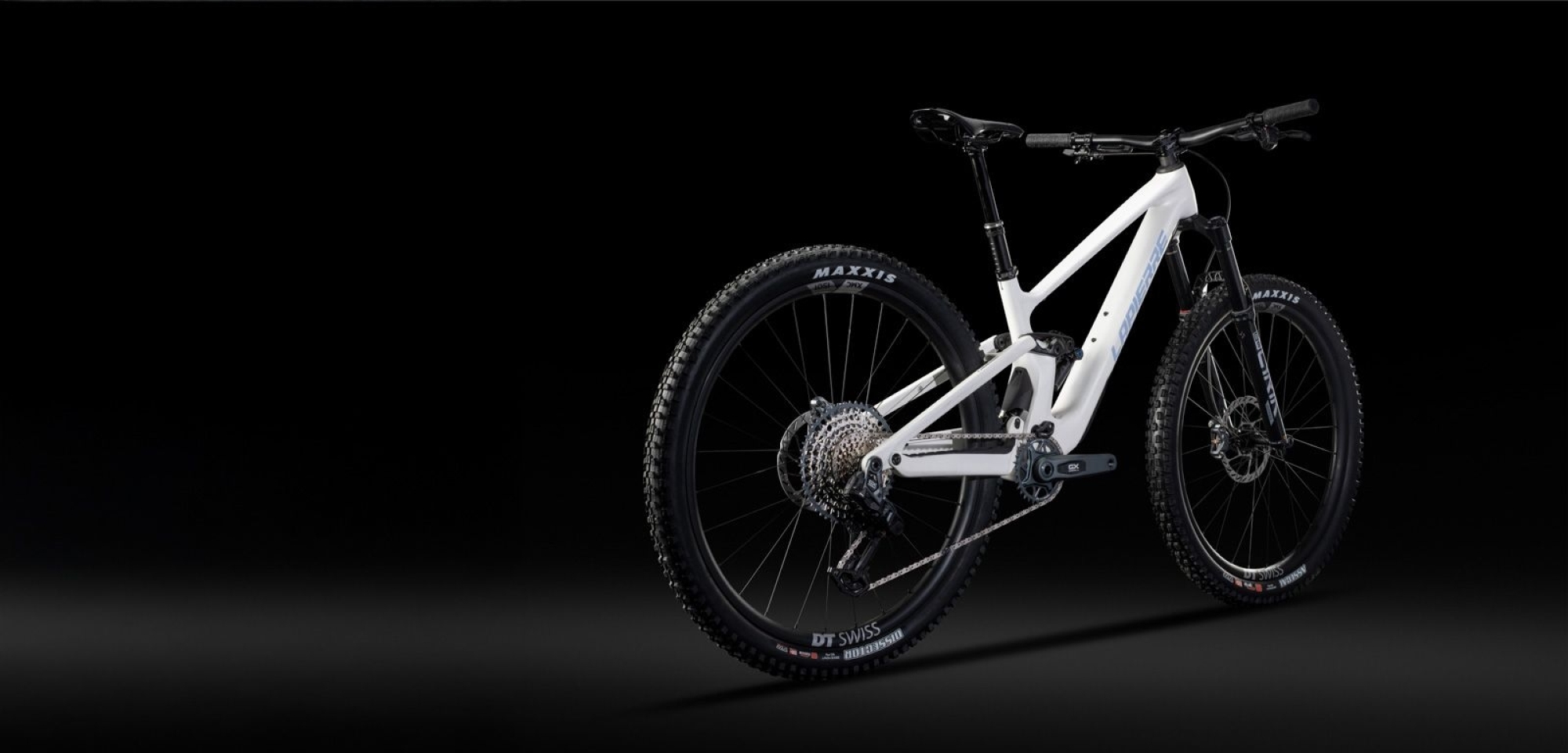

Lapierre Zesty CF 9.9 2025

Cadre et plus
Taille:
S,M,L,XL
Max loadable weight (KG):
120 kg
Front Fork Type:
Suspension
Suspension Type:
Fully
Travel Front:
150 mm

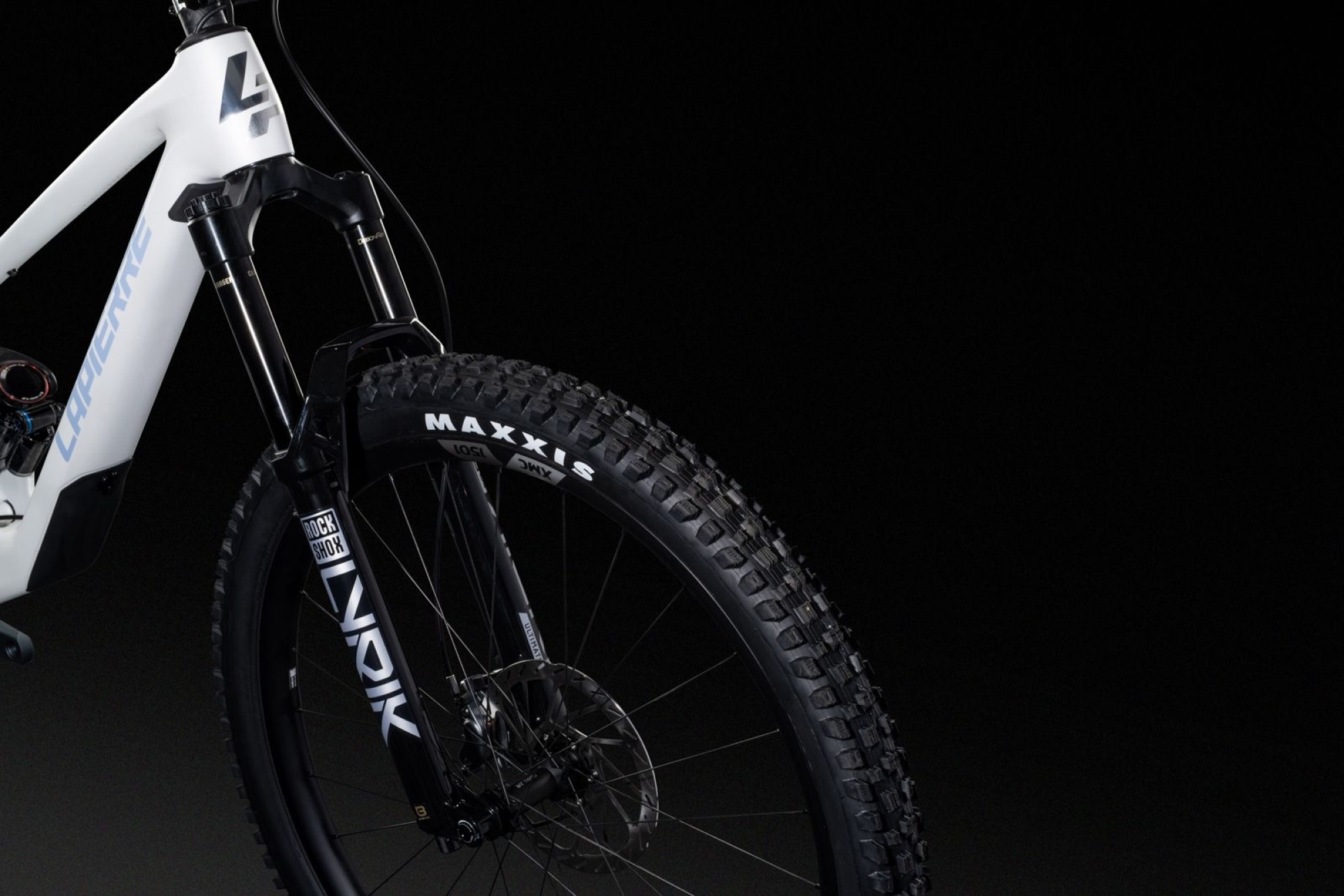

Fourche:
Rockshox, Lyrik Ultimate Charger RC2 15×110 150 mm
Cadre:
Carbon UD SLI, Carbone, Homme
Amortisseur:
Rockshox, Super Deluxe Ultimate RC2T 205x60mm Trunnion

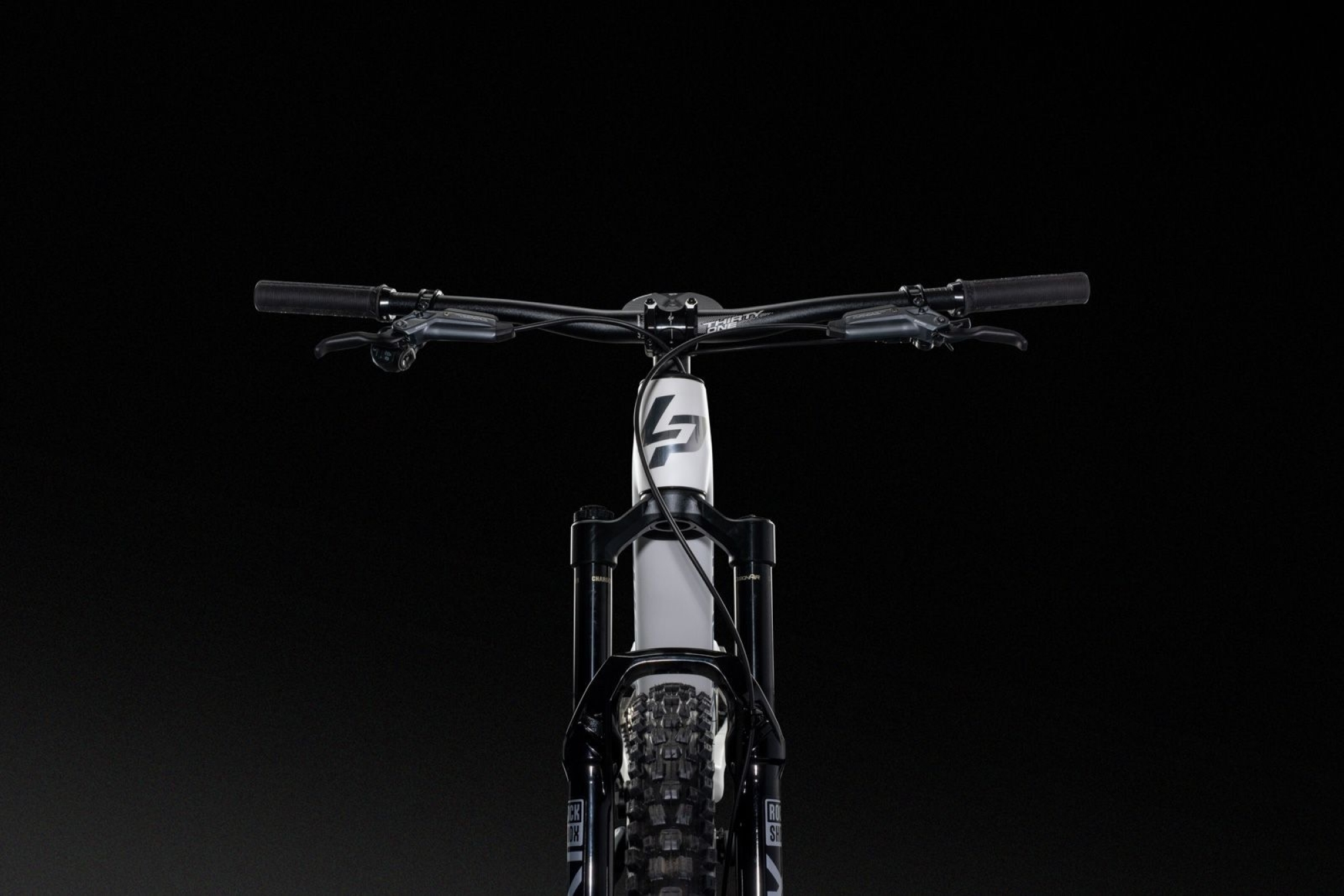

Cintre et Selle
Handlebar Diameter:
31.8 mm
Handlebar Material:
Aluminium
Handlebar Rise:
15
Handlebar Width:
780 mm
Seatpost Material:
Aluminium
Seatpost Travel (mm):
125 mm,150 mm,170 mm
Stem Length:
35 mm,45 mm
Poignée:
Lapierre, Anodized, small diameter

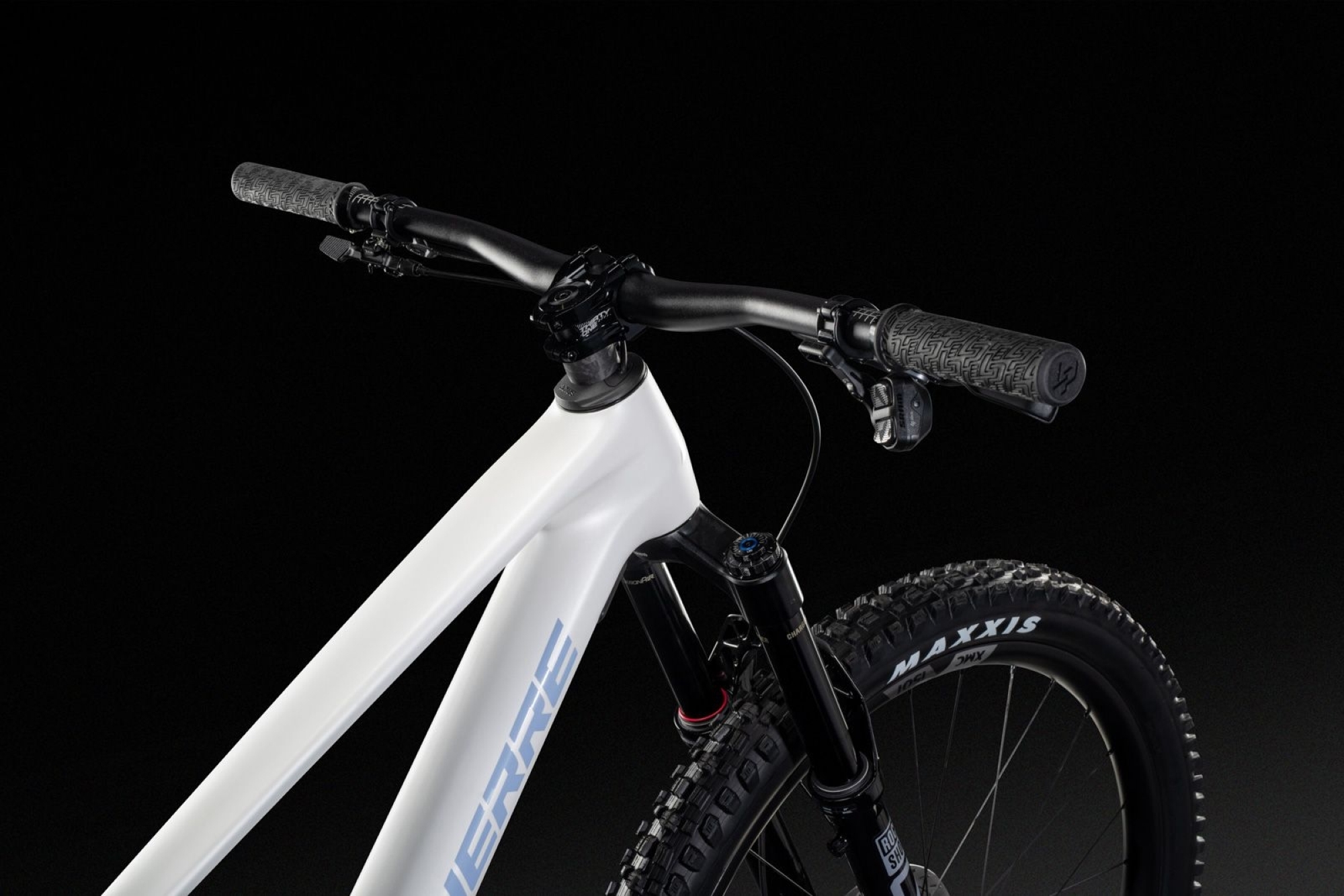

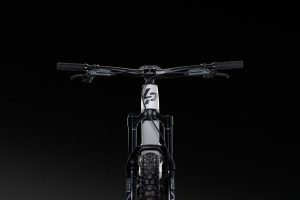

Cintre:
Lapierre, Flat bar, Thirty One 6061DB, Rise: 15 mm, Ø: 31.8 mm
Jeu de direction:
Acros, Semi-integrated, ZS56/ZS56 Block Lock
Selle:
Prologo, Scratch M5 PAS

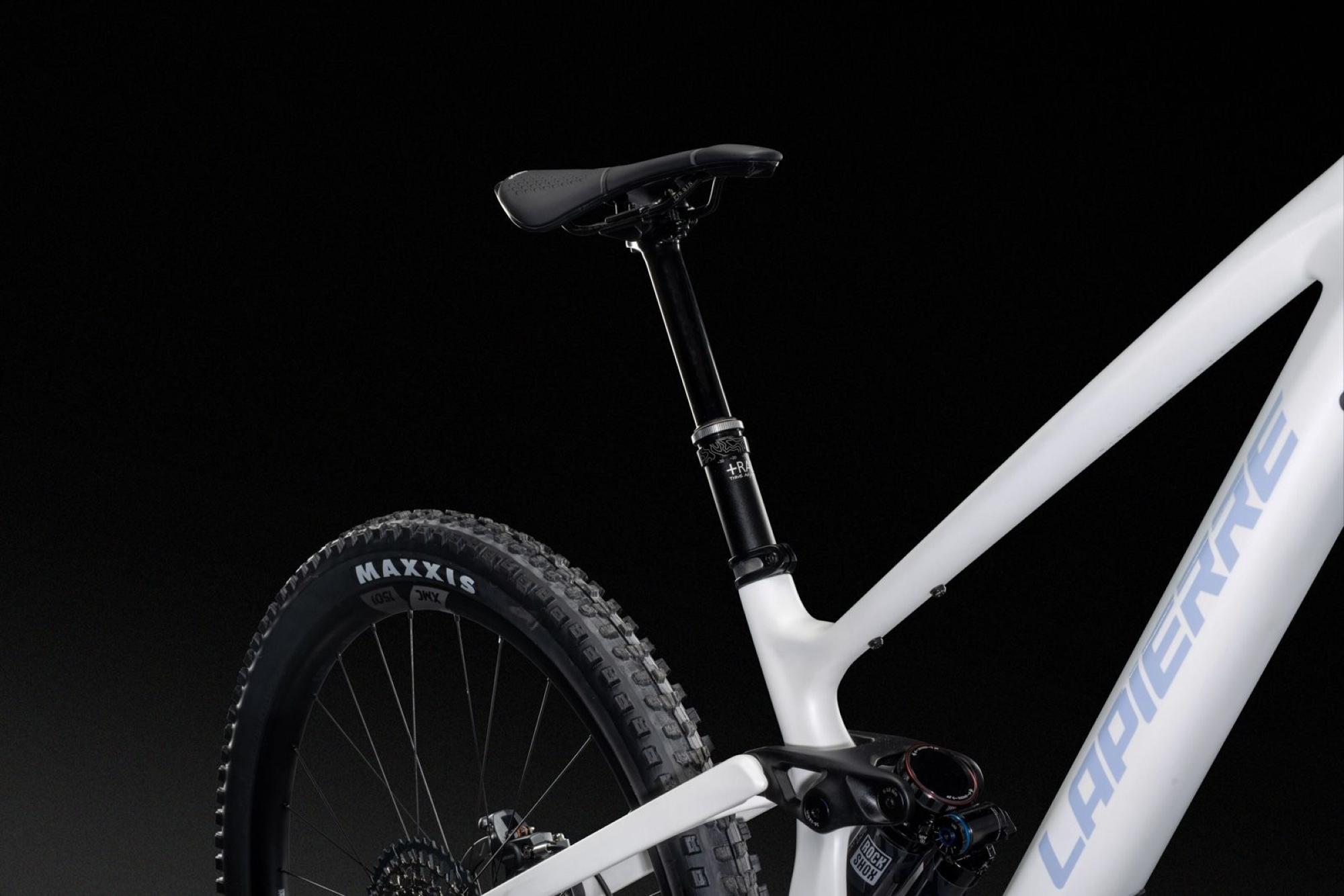

Tige de Selle:
JD, Dropperpost, Dropper YSI05, Ø: 31.6 mm, travel: 125 mm
Potence:
Lapierre, Thirty One alloy, 0°, Ø: 31.8 mm, L: 35 mm

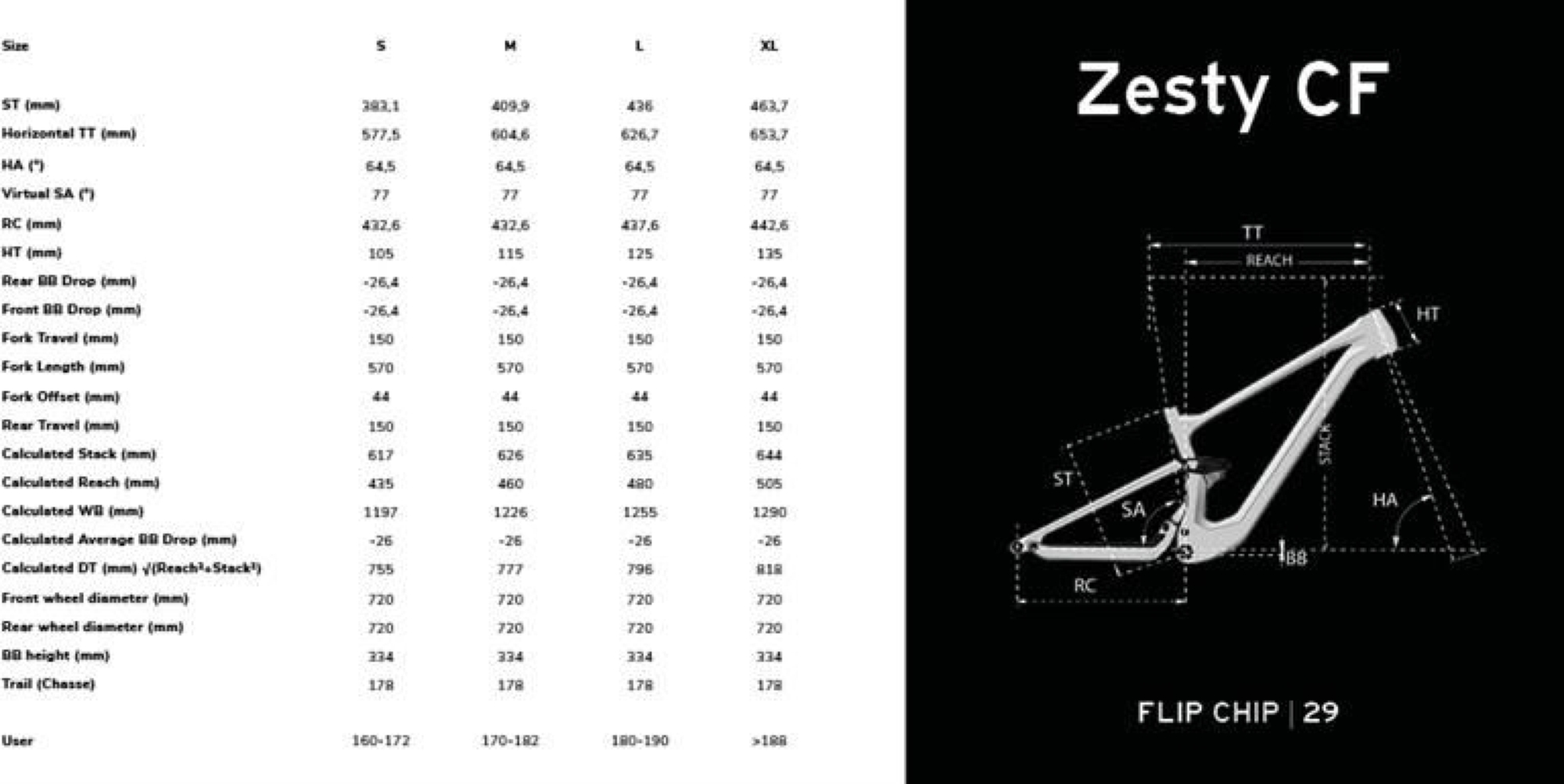

Géométrie
Bottom bracket drop [mm]:
26.4 mm
Chain stay length [mm]:
432.6 mm,437.6 mm,442.6 mm
Fork offset [mm]:
570 mm
Fork total length [mm]:
44 mm
Head tube angle:
64.5 degrees
Head tube length [mm]:
105 mm,115 mm,125 mm,135 mm
Reach [mm]:
435 mm,460 mm,480 mm,505 mm
Stack [mm]:
617 mm,626 mm,635 mm,644 mm
Seat tube angle:
77 degrees
Seat tube length [mm]:
400 mm,430 mm,460 mm,500 mm
Top tube length [mm]:
577.5 mm,604.6 mm,626.7 mm,653.7 mm
Wheelbase [mm]:
1197 mm,1226 mm,1255 mm,1290 mm
Roues et composants de roues
Wheelset Material:
Carbone
Taille de roue:
29
Pneu:
Maxxis, Assegai 3C MaxxGrip NEXO+ TR 2.50 WT
Pneu Arrière:
Maxxis, Dissector 3C MaxxTerra NEXO+ TR 2.40 WT
Paire de Roues:
DT Swiss, XCM1501 Spline
Roue Arrière:
DT Swiss, XCM1501 Spline
Taille de Roue:
29, 29
Système de freinage
Brake Rear Mount:
Post Mount
Frein Avant:
Sram, Frein à disque hydraulique, Code Bronze Stealth 4 pistons, 200 mm
Frein Arrière:
Sram, Frein à disque hydraulique, Code Bronze Stealth 4 pistons, 180 mm
Levier de frein:
Sram, Bronze Stealth-BL
Disques de frein:
Sram, HS2 200 / 180 mm, Centerlock

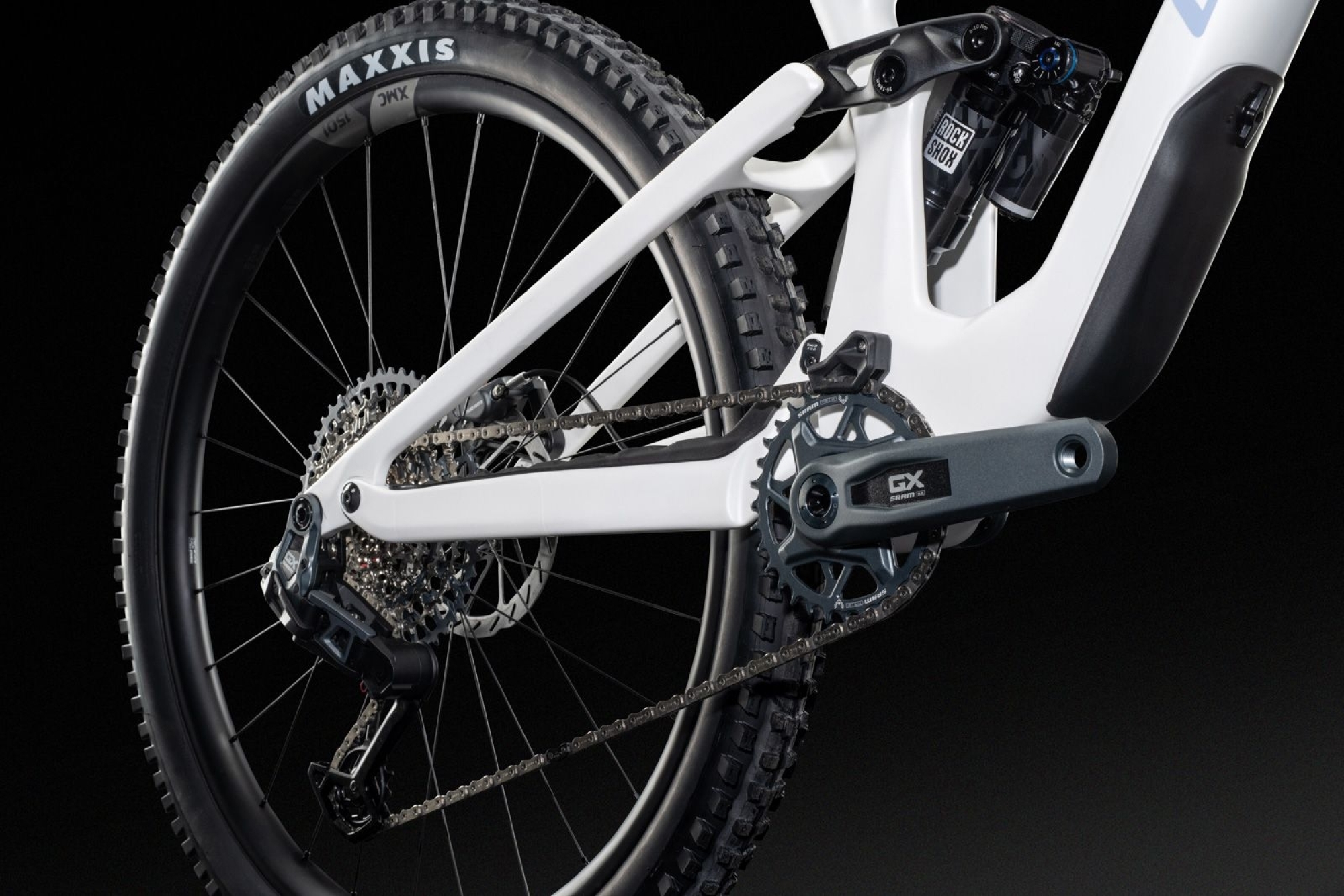

Transmission
Cassette Teeth:
10-52T
Crankset Teeth:
32T
Crankset Type:
single
Number Of Gears:
12
Boitier de pédalier:
Sram, PressFit, DUB PF 92 MTB Wide
Cassette:
Sram, Cassette, XS-1275 T-Type 12s, XD
Chaîne:
Sram, Chaîne, GX T-Type 12s
Guide chaîne:
Lapierre, 1x
Pédalier:
Sram, GX Eagle T-Type DUB

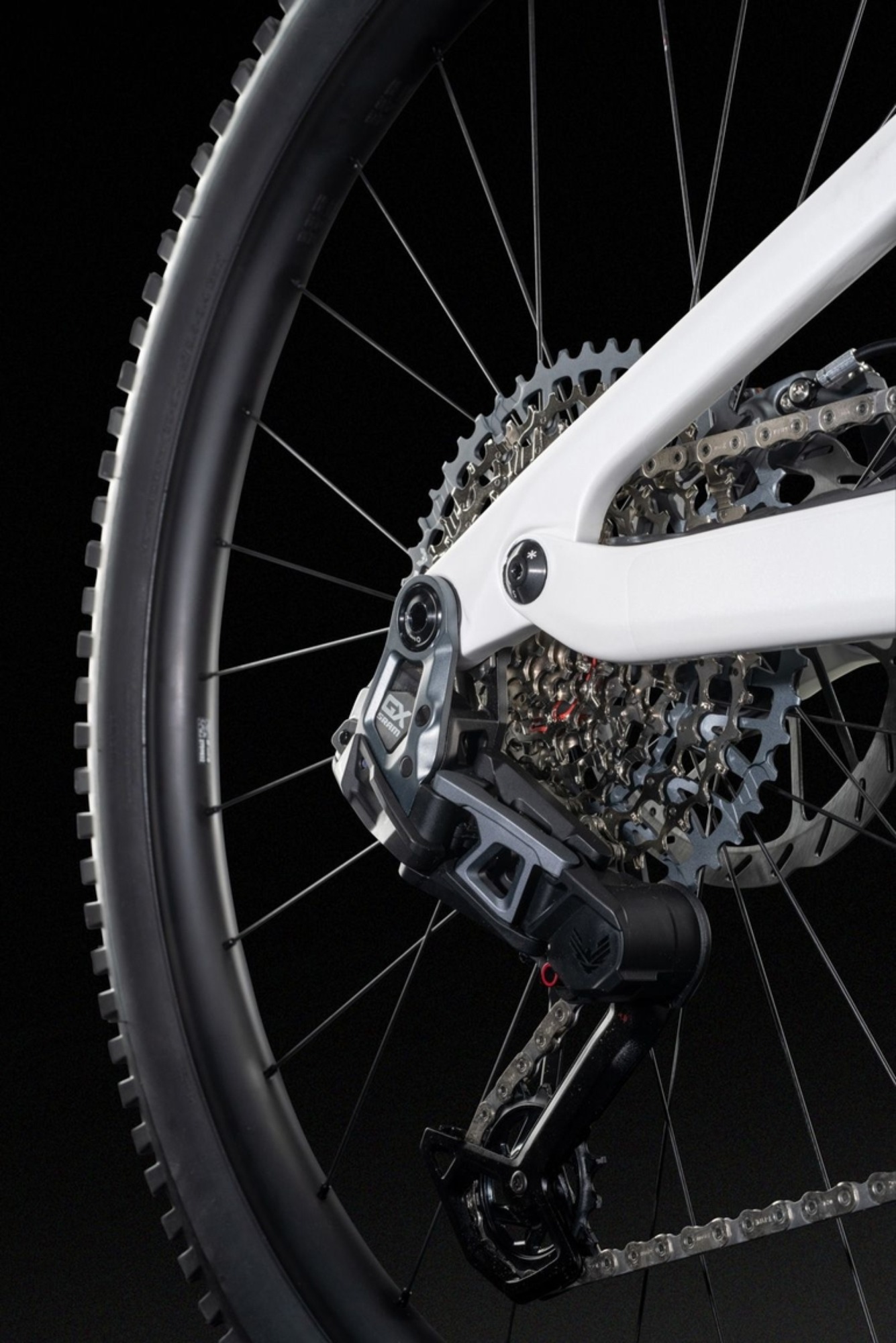

Dérailleur Arrière:
Sram, GX Eagle AXS T-Type
Vitesse:
Sram, Derailleur
Pédales:
XLC, by VP
Selecteur de vitesse Gauche:
Sram, Triggershift, AXS Pod 12s
Selecteur de vitesse Droit:
Sram, Triggershift, AXS Pod Controller 12s
